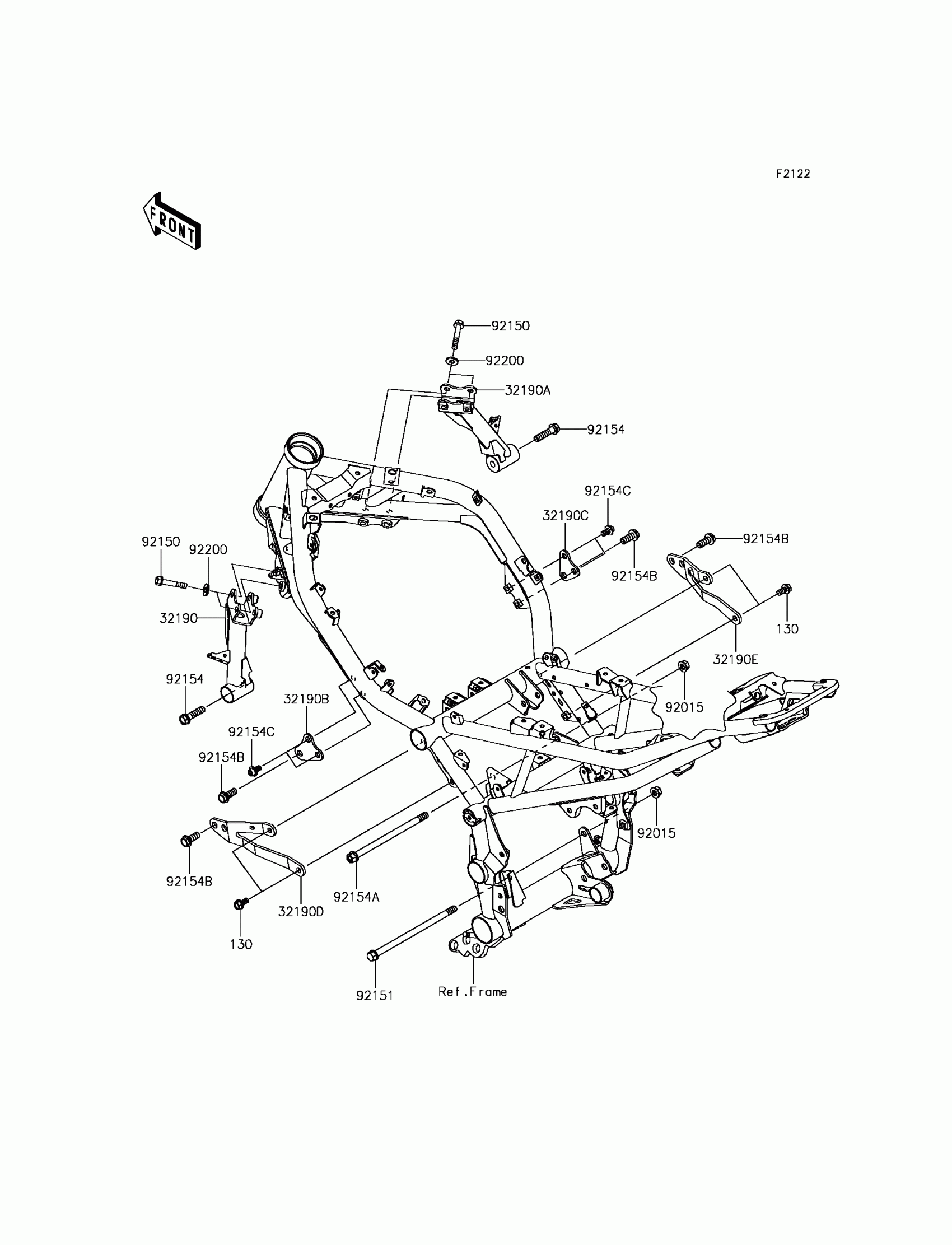

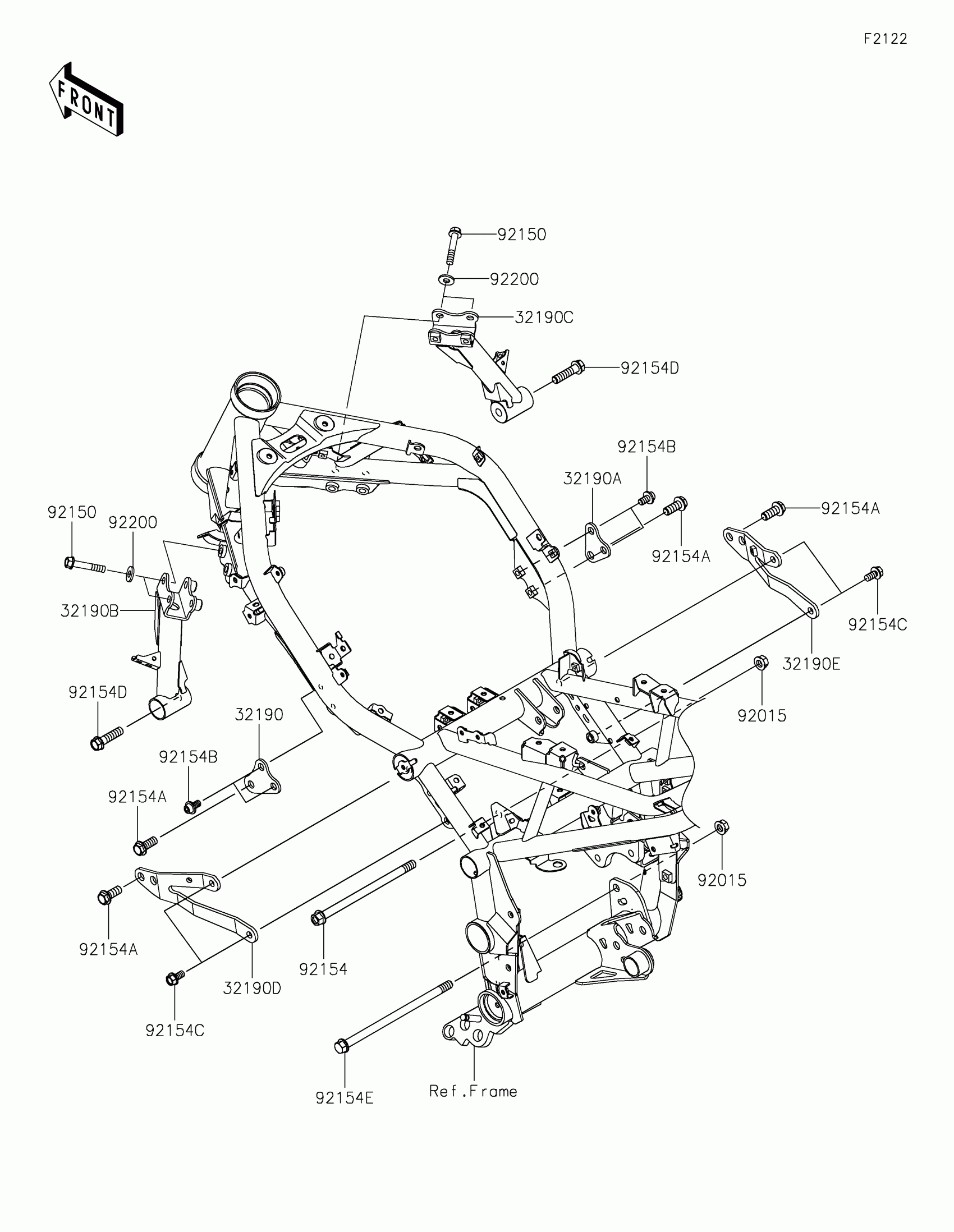

Kawasaki Z900 ABS Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130CA0816

$1.77

32190

BRACKET-ENGINE,LH,F.S.BLACK

32190-0721-18R

$79.05

32190A

BRACKET-ENGINE,RH,F.S.BLACK

32190-0722-18R

$79.05

32190B

BRACKET-ENGINE,LH,F.S.BLACK

32190-0723-18R

$2.76

32190C

BRACKET-ENGINE,RH,F.S.BLACK

32190-0724-18R

$2.76

32190D

BRACKET-ENGINE,CYL.,LH

32190-0725

$25.56

32190E

BRACKET-ENGINE,CYL.,RH

32190-0726

$25.56

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92150

BOLT,FLANGED,8X45

92150-1487

$4.93

92151

BOLT,FLANGED,10X190

92151-1915

$12.45

92154

BOLT,FLANGED,10X40

92154-0313

$4.24

92154A

BOLT,FLANGED,10X170

92154-0840

$18.05

92154B

BOLT,FLANGED,10X25

92154-2251

$3.51

92154C

BOLT,SOCKET,8X14

92154-2252

$1.90

92200

WASHER,8.5X18X2.3

92200-1213

$1.85
