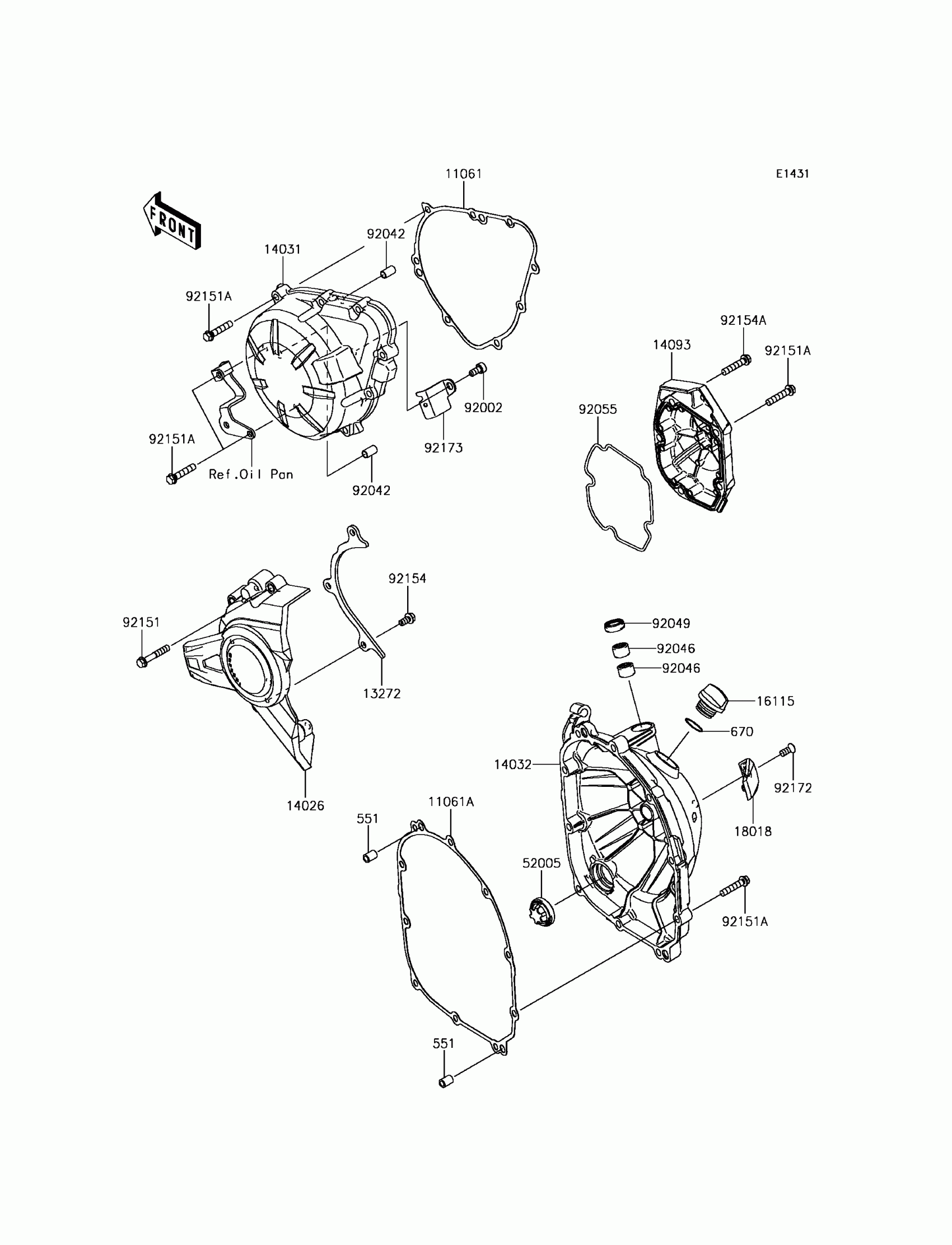

Kawasaki Z900 ABS Engine Cover(s) Diagram

#

Description
Price

551

PIN-DOWEL,8X14

551A0814

$0.93

670

O RING,20MM

670B2020

$0.97

11061

GASKET,GENERATOR COVER

11061-0403

$13.29

11061A

GASKET,CLUTCH COVER

11061-0404

$21.15

13272

PLATE

13272-2238

$14.78

14026

COVER-CHAIN

14026-0132

$178.93

14031

COVER-GENERATOR

14031-0611

$249.17

14032

COVER-CLUTCH

14032-0630

$266.02

14093

COVER,PULSER

14093-0519

$60.45

16115

CAP-OIL FILLER

16115-1053

$9.28

18018

PLATE-HEAT GUARD

18018-0603

$5.56

52005

GAUGE

52005-1120

$18.41

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92055

RING-O,PULSER COVER

92055-0199

$7.30

92151

BOLT,6X35

92151-1135

$3.19

92151A

BOLT,6X30

92151-1873

$3.55

92154

BOLT,FLANGED-SMALL,6X12

92154-1888

$3.29

92154A

BOLT,6X30

92154-2652

$1.68

92172

SCREW,TORX,6X14

92172-0901

$1.44

92173

CLAMP

92173-1321

$1.68
