2017 Kawasaki Z900 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

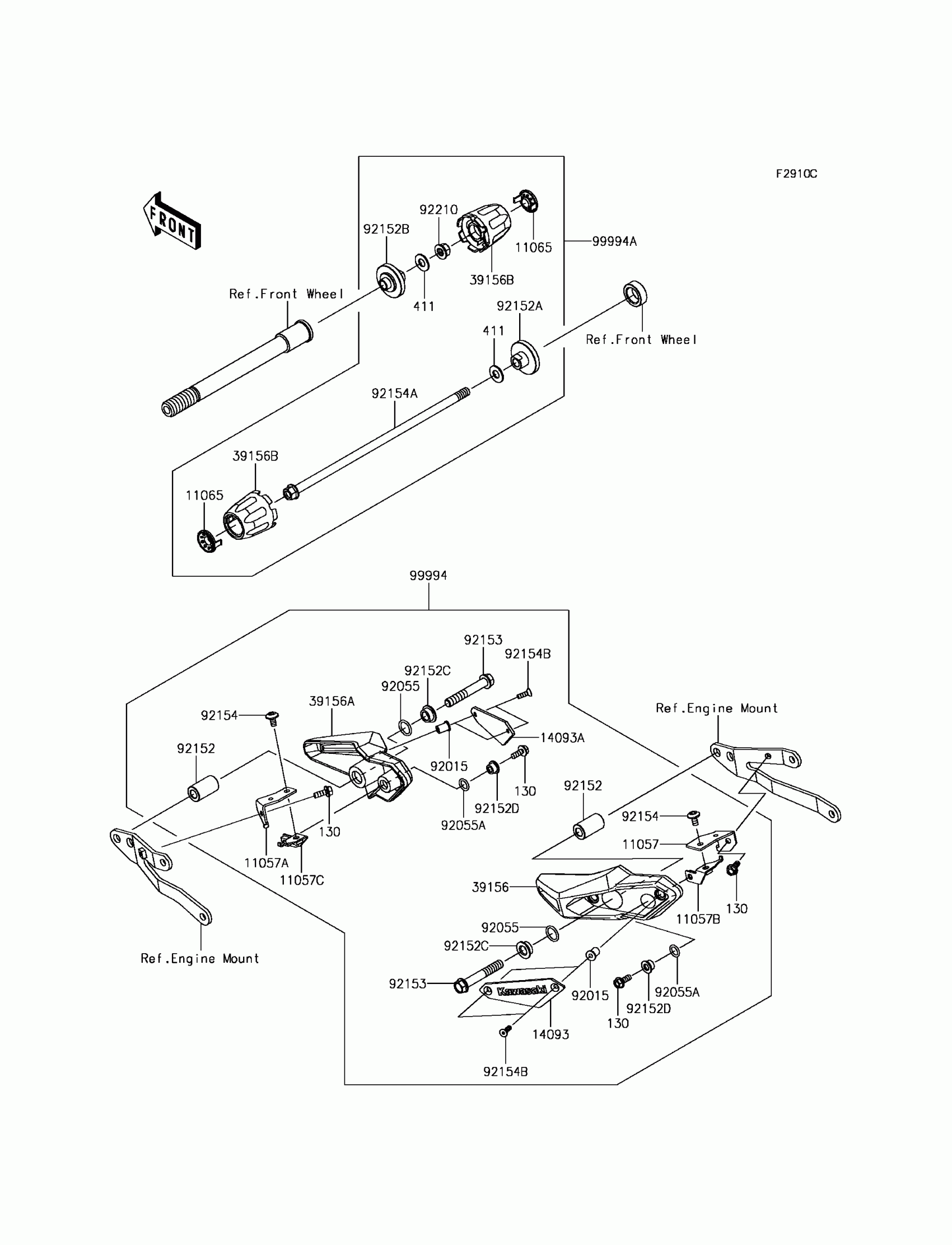

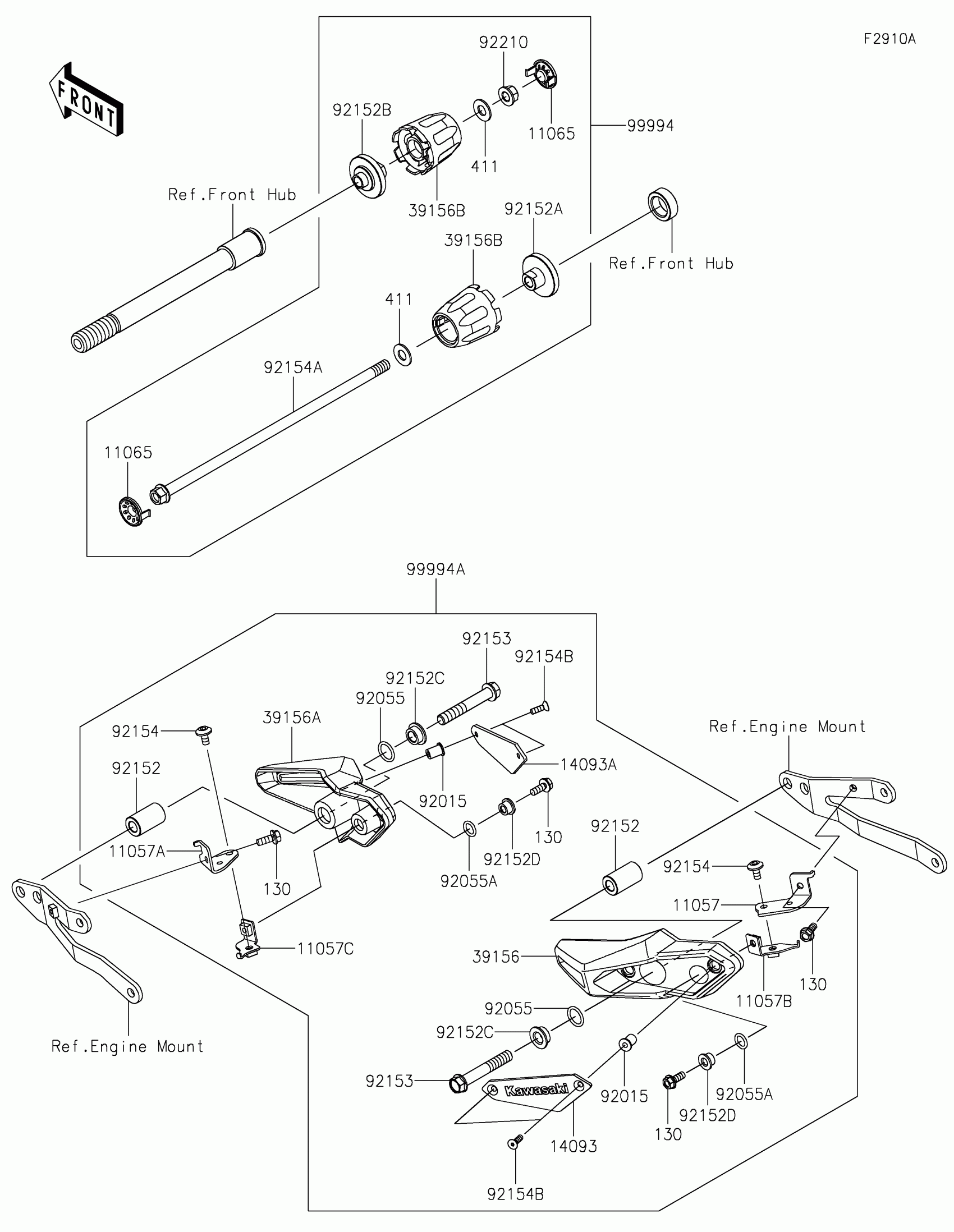

2017 Kawasaki Z900 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CB0616

1

$2.10

In stock

411

WASHER-PLAIN,10MM

411AA1000

1

$0.93

In stock

11057

BRACKET,LH

11057-0313

1

$23.97

In stock

11057A

BRACKET,RH

11057-0314

1

$23.97

In stock

11057B

BRACKET,LH

11057-0778

1

$23.97

In stock

11057C

BRACKET,RH

11057-0779

1

$23.97

In stock

11065

CAP,B.SILVER

11065-0960-54N

1

$7.54

In stock

14093

COVER,LH

14093-0516

1

$66.36

In stock

14093A

COVER,RH

14093-0517

1

$66.36

In stock

39156

PAD,LH

39156-2123

1

$120.96

In stock

39156A

PAD,RH

39156-2124

1

$120.96

In stock

39156B

PAD,AXLE SLIDER

39156-2212

1

$60.42

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92055

RING-O,15.8X2.4

92055-0884

1

$1.47

In stock

92055A

RING-O,11X2.4

92055-0885

1

$1.47

In stock

92152

COLLAR,10.5X20X34

92152-2268

1
Out of stock

92152A

COLLAR,LH

92152-2272

1
Out of stock

92152B

COLLAR,RH

92152-2273

1
Out of stock

92152C

COLLAR,10.5X22X8.1

92152-2334

1
Out of stock

92152D

COLLAR,6.5X16X8.1

92152-2335

1
Out of stock

92153

BOLT,FLANGED,10X65

92153-1931

1

$6.16

In stock

92154

BOLT,SOCKET,6X12

92154-1788

1

$2.05

In stock

92154A

BOLT,AXLE,10X300

92154-2250

1

$38.03

In stock

92154B

BOLT,SOCKET,5X16

92154-2669

1

$0.85

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

99994

1

$300.07

In stock

99994A

1

$142.16

In stock
