2017 Kawasaki Z900 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

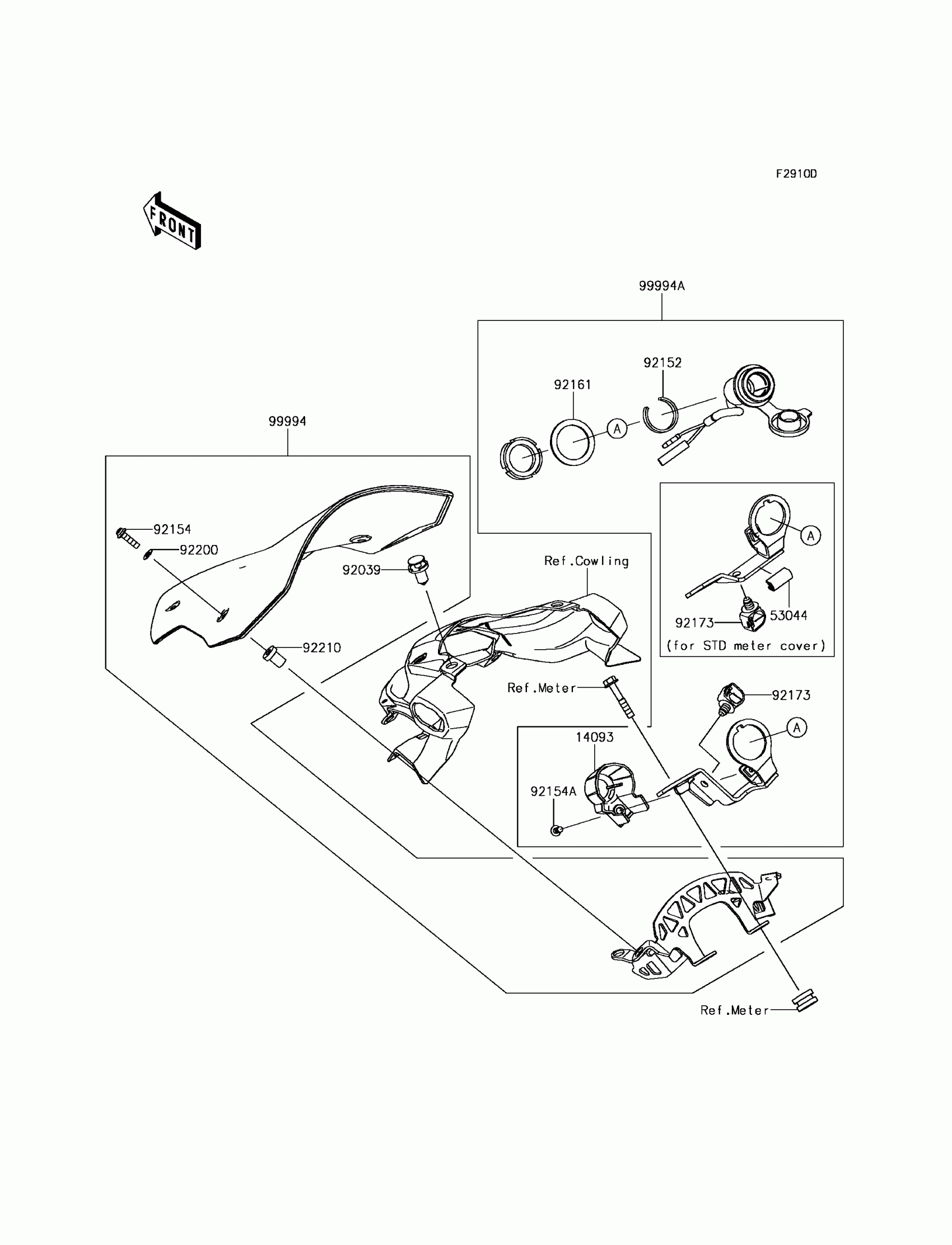

2017 Kawasaki Z900 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SOCKET

14093-0212

1

$6.16

In stock

53044

TRIM,L=22

53044-0031

1

$2.71

In stock

92039

RIVET

92039-0098

1

$4.39

In stock

92152

COLLAR

92152-2135

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0210

1

$1.78

In stock

92154A

BOLT,SOCKET,5X12

92154-0917

1

$3.74

In stock

92161

DAMPER

92161-1789

1

$4.39

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,5MM

92210-0001

1
Out of stock

99994

1

$149.61

In stock

99994A

1

$117.21

In stock
