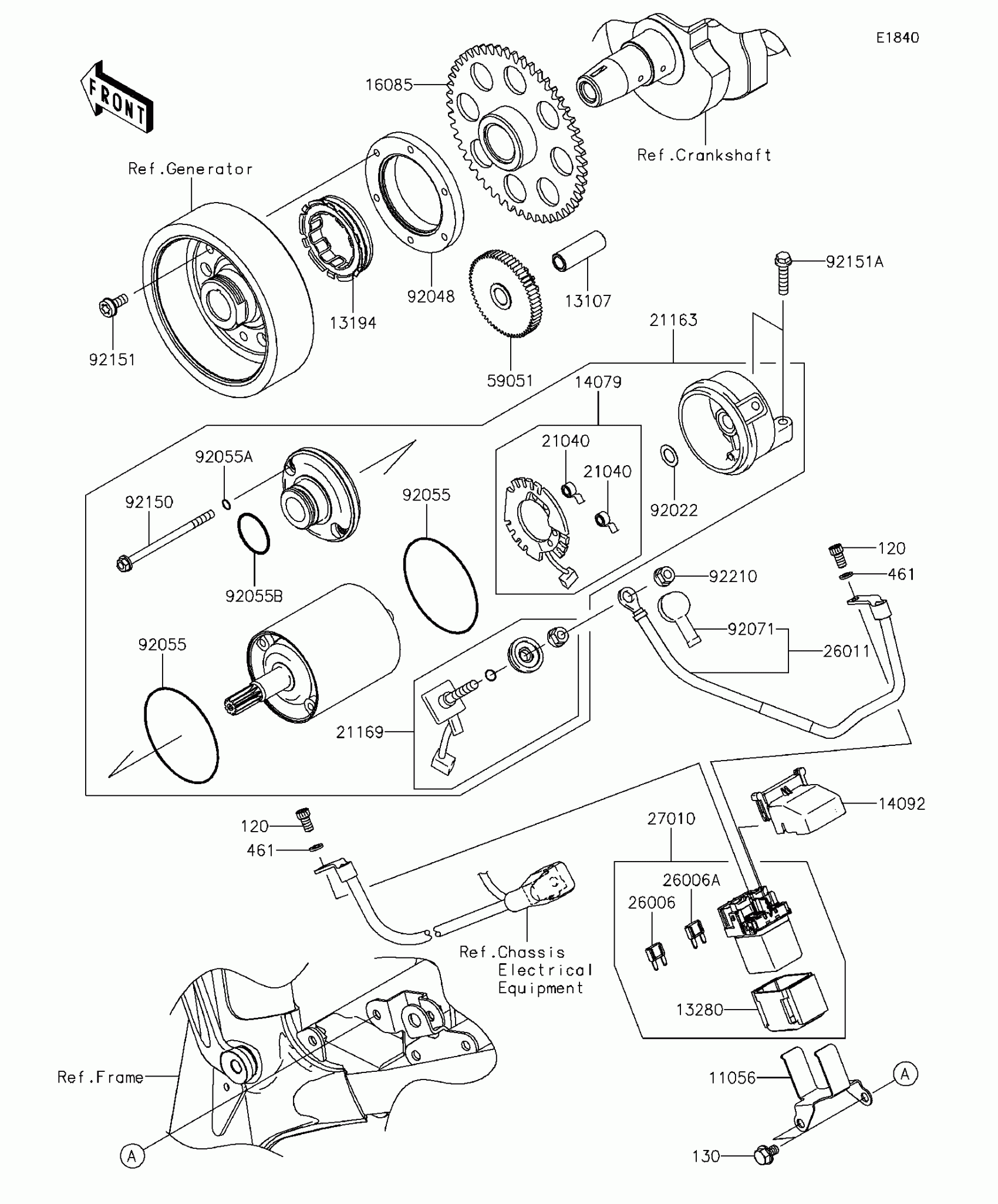

Kawasaki Z800 ABS Starter Motor Diagram
#
Description
Price
11056
BRACKET
11056-2049
$7.85
120
BOLT-SOCKET,5X10
120CB0510
$1.64
130
BOLT-FLANGED,6X10
130CC0610
$1.19
13107
SHAFT,IDLER GEAR
13107-0744
$8.13
13194
CLUTCH-ONEWAY
13194-1096
$106.12
13280
HOLDER,MAGNETIC SWITCH
13280-0814
$11.88
14079
HOLDER-ASSY,STARTER
14079-0009
$97.69
14092
COVER
14092-0109
$9.50
16085
GEAR,CLUTCH ONEWAY
16085-1303
$126.48
21040
SPRING-BRUSH
21040-0001
$8.13
21163
STARTER-ELECTRIC
21163-0729
$606.71
21169
TERMINAL,STARTER
21169-1058
$59.07
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD
26011-0760
$35.18
27010
SWITCH
27010-0770
$108.75
461
WASHER-SPRING,5MM
461DB0500
$1.50
59051
GEAR-SPUR,IDLER
59051-0714
$90.15
92022
WASHER
92022-2200
$1.45
92048
RACE
92048-0018
$63.92
92055
RING-O,62MM
92055-1260
$10.35
92055A
RING-O,4.5MM
92055-1261
$2.87
92055B
RING-O,24.4X3.1
92055-1262
$12.46
92071
GROMMET
92071-0713
$13.37
92150
BOLT
92150-1237
$8.06
92151
BOLT,6X14
92151-1335
$3.32
92151A
BOLT,FLANGED-SMALL,6X25
92151-1930
$2.80
92210
NUT,6MM
92210-0188
$2.15
