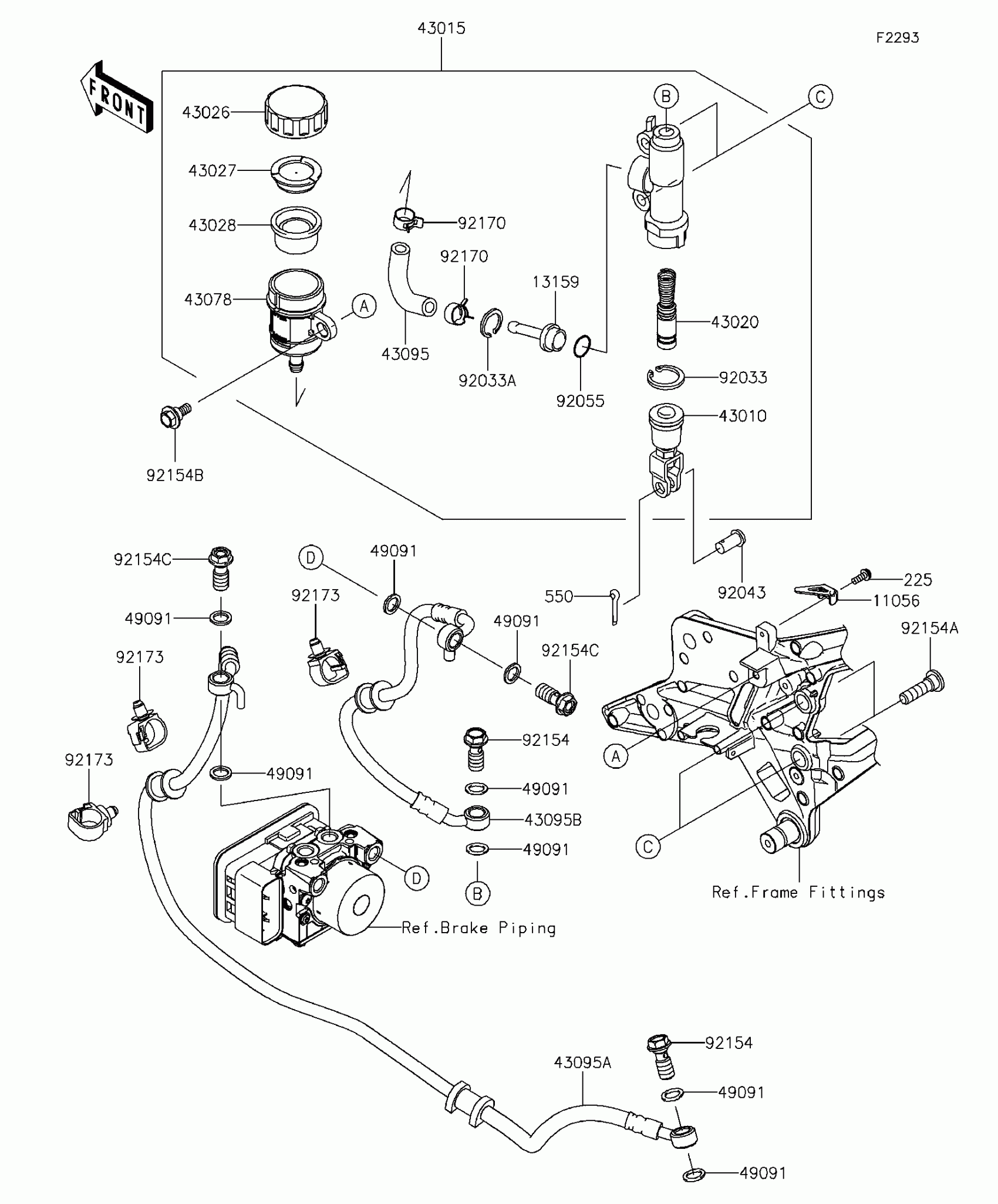

Kawasaki Z800 ABS Rear Master Cylinder Diagram
#
Description
Price
11056
BRACKET,GUARD
11056-1904
$23.21
13159
CONNECTOR
13159-0009
$9.09
225
SCREW-PAN-WSP-CROS,4X12
225AB0412
$2.94
43010
ROD-ASSY-BRAKE
43010-0009
$29.34
43015
CYLINDER-ASSY-MASTER,RR
43015-0574
$410.93
43020
PISTON-COMP-BRAKE
43020-1094
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0060
$32.45
43095
HOSE-BRAKE,RESERVOIR
43095-0585
$34.37
43095A
HOSE-BRAKE
43095-0715
$110.38
43095B
HOSE-BRAKE
43095-0766
$73.40
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
550
PIN-COTTER,2.0X15
550AA2015
$1.12
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92154
BOLT,OIL,L=23
92154-0226
$5.91
92154A
BOLT,SOCKET,8X30
92154-0843
$4.72
92154B
BOLT
92154-0929
$3.71
92154C
BOLT,BANJO,10X22
92154-1138
$7.40
92170
CLAMP,HOSE
92170-1091
$5.00
92173
CLAMP,HOLDER CLIP
92173-0868
$3.02
