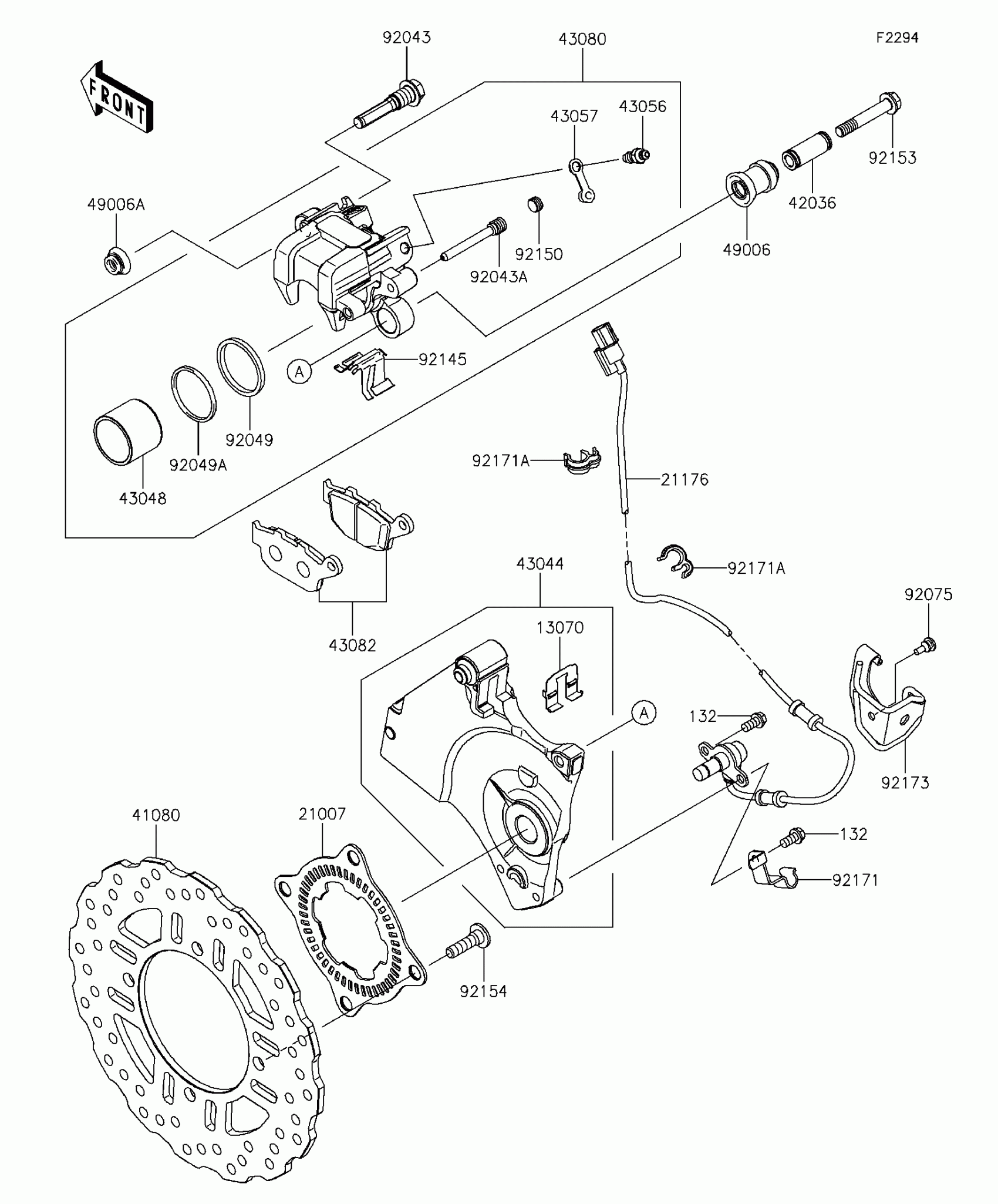

Find the part on the Rear Brake diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE PAD

13070-0714

1

$11.68

In stock

132

1

$1.12

In stock

21007

ROTOR,SENSOR,RR

21007-0582

1

$94.91

In stock

21176

SENSOR,ABS,RR

21176-0753

1

$132.06

In stock

41080

DISC,RR

41080-0576

1

$341.15

In stock

42036

SLEEVE

42036-0050

1

$7.61

In stock

43044

HOLDER-COMP-CALIPER

43044-0050

1

$167.60

In stock

43048

PISTON-CALIPER

43048-0008

1

$31.05

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080

1

$348.27

In stock

43082

PAD-ASSY-BRAKE

43082-0117

1

$50.03

In stock

49006

BOOT

49006-0058

1

$12.83

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

92043

PIN

92043-0137

1

$10.77

In stock

92043A

PIN,HANGER

92043-1520

1

$7.81

In stock

92049

SEAL-OIL

92049-1449

1
Out of stock

92049A

SEAL-OIL

92049-1450

1
Out of stock

92075

DAMPER,6X10X15

92075-1808

1

$1.24

In stock

92145

SPRING,PAD

92145-0493

1

$6.12

In stock

92150

BOLT,PLUG

92150-1692

1

$6.24

In stock

92153

BOLT,FLANGED

92153-1826

1

$8.17

In stock

92154

BOLT,SOCKET,8X30

92154-0844

1

$3.26

In stock

92171

1

$9.61

In stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1

$4.85

In stock

92173

CLAMP

92173-1089

1

$30.08

In stock
