2016 Kawasaki Z800 ABS Brake Piping Diagram

← All diagrams

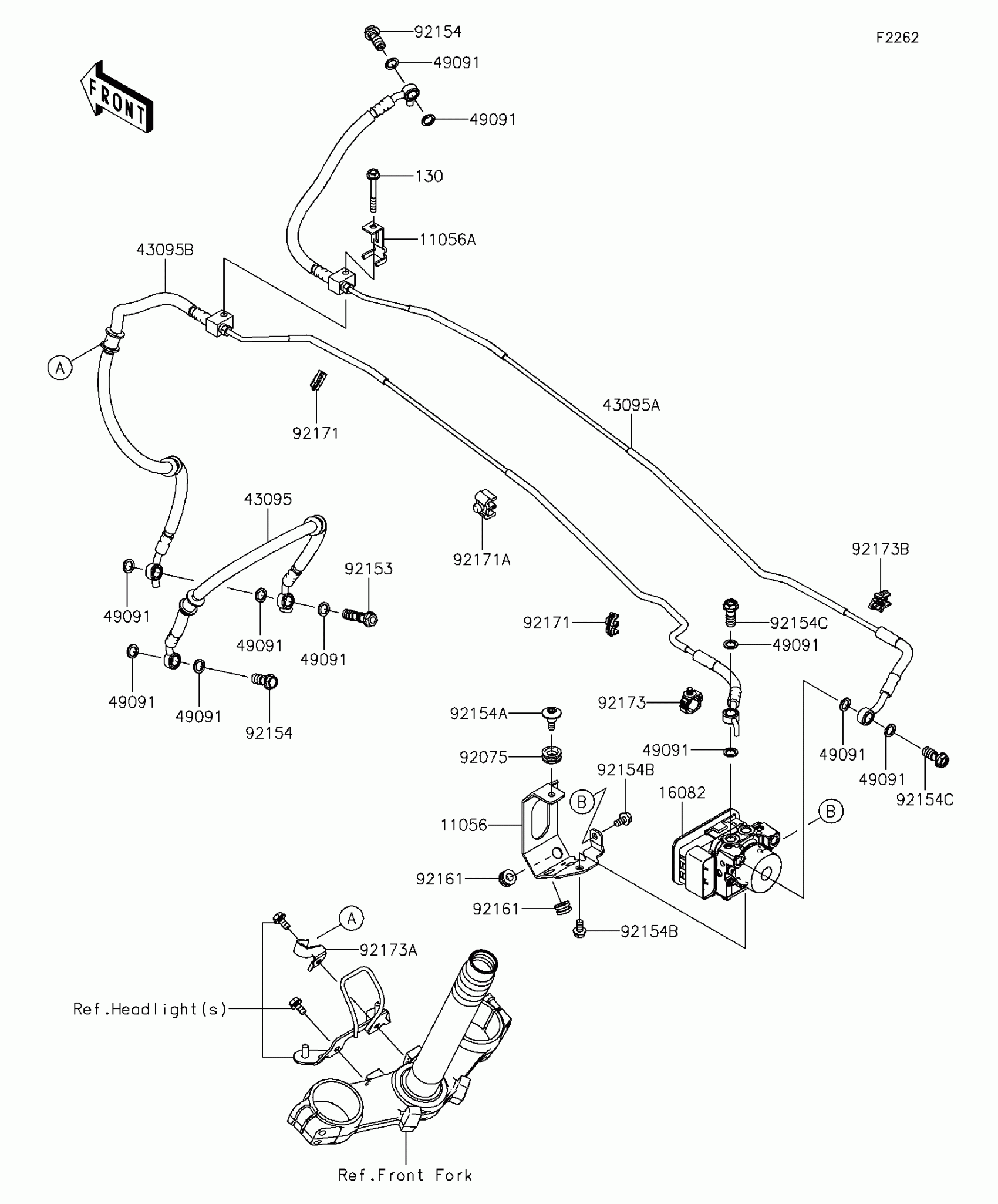

Find the part on the Brake Piping diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Z800 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1842

1

$14.36

In stock

11056A

BRACKET,ABS

11056-2118

1

$13.31

In stock

130

BOLT-FLANGED,6X45

130CB0645

1

$1.66

In stock

16082

1

$1,671.67

In stock

43095

HOSE-BRAKE,FR,464MM

43095-0709

1

$73.71

In stock

43095A

HOSE-BRAKE

43095-0775

1

$207.70

In stock

43095B

HOSE-BRAKE

43095-0776

1

$215.45

In stock

49091

1

$1.81

In stock

92075

DAMPER

92075-1634

1

$3.72

In stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,OIL,L=23

92154-0226

1

$4.68

In stock

92154A

BOLT,6X20

92154-0292

1

$3.63

In stock

92154B

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock

92154C

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92161

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock

92171

CLAMP

92171-0817

1

$4.14

In stock

92171A

CLAMP

92171-0818

1

$3.93

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173A

CLAMP

92173-0945

1

$3.31

In stock

92173B

CLAMP

92173-0951

1

$1.44

In stock
