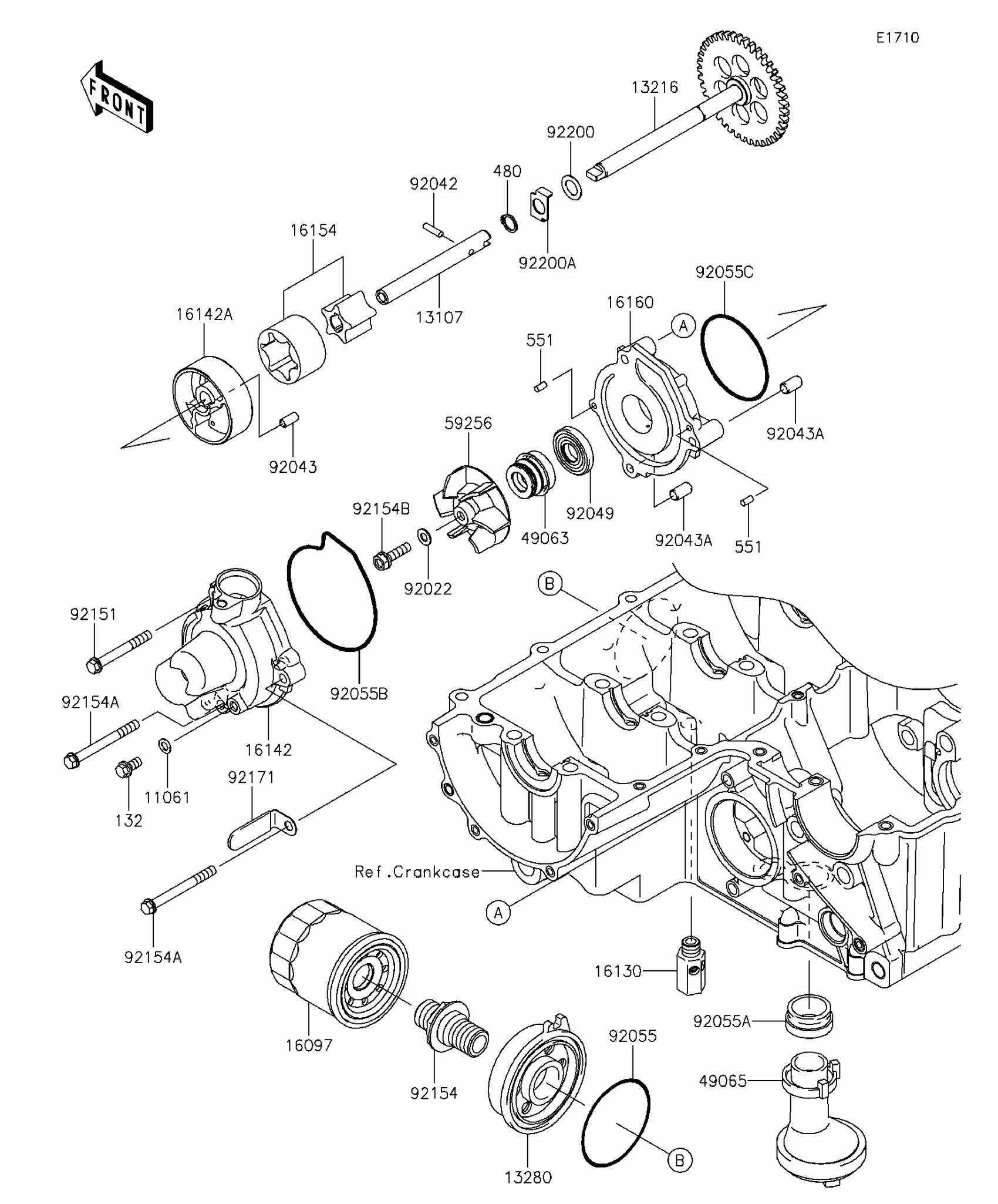

Kawasaki Z800 ABS Oil Pump/Oil Filter Diagram
#
Description
Price
11061
GASKET
11061-0107
$2.58
13107
SHAFT,OIL PUMP
13107-0046
$30.83
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
13216
GEAR-COMP,OIL PUMP,41T
13216-0872
$121.25
13280
HOLDER
13280-0775
$49.51
16097
FILTER-ASSY-OIL
16097-0008
$14.50
16130
VALVE-ASSY-RELIEF
16130-1058
$41.98
16142
COVER-PUMP
16142-0063
$122.12
16142A
COVER-PUMP,OIL
16142-1146
$47.52
16154
ROTOR-PUMP
16154-0057
$75.22
16160
BODY,OIL PUMP
16160-0727
$121.25
480
CIRCLIP-TYPE-C,11MM
480J1100
$1.24
49063
SEAL-MECHANICAL
49063-1055
$20.06
49065
FILTER-OIL
49065-0712
$22.21
551
PIN-DOWEL,4X8
551A0408
$0.78
59256
IMPELLER
59256-0555
$42.34
92022
WASHER OIL PUMP BANJO
92022-077
$3.99
92042
PIN,DOWEL,4X13.8
92042-030
$3.92
92043
PIN,4.2X6X12
92043-1262
$4.31
92043A
PIN,6.2X8X14
92043-1263
$0.43
92049
SEAL-OIL
92049-0798
$28.98
92055
RING-O,63.3X3.1
92055-0738
$4.76
92055A
RING-O,OIL FILTER
92055-1503
$9.51
92055B
RING-O,WATER PUMP COVER
92055-1571
$14.17
92055C
RING-O,59.6X2.4
92055-3018
$6.22
92151
BOLT,6X50
92151-1234
$2.46
92154
BOLT
92154-0735
$45.50
92154A
BOLT-FLANGED-SMALL,6X60
92154-0949
$3.05
92154B
BOLT,FLANGED,6X22
92154-1069
$3.02
92171
CLAMP
92171-1420
$5.05
92200
WASHER,11X18X1
92200-0786
$2.69
92200A
WASHER
92200-0818
$2.00
