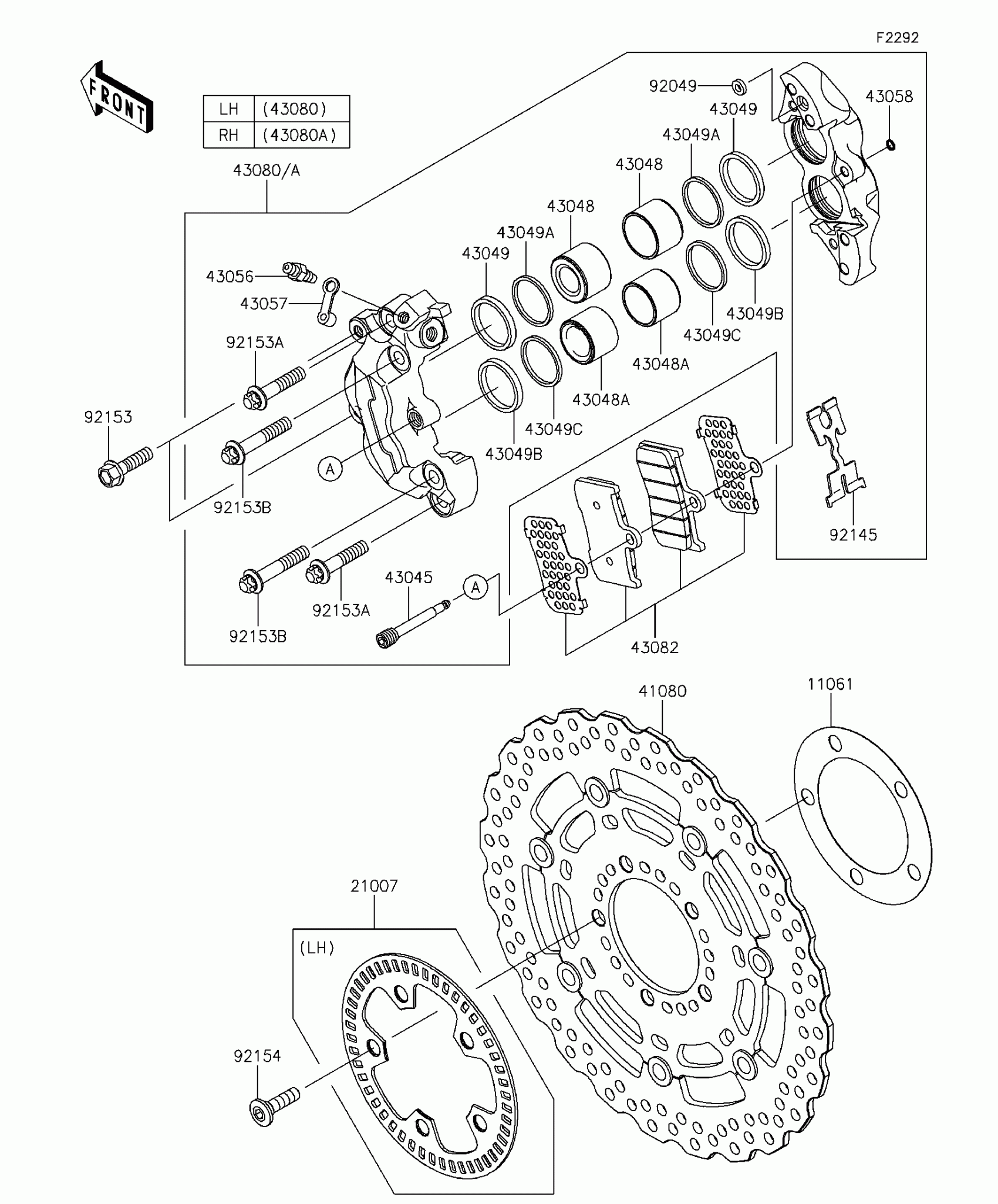

Kawasaki Z800 ABS Front Brake Diagram

#

Description
Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

21007

ROTOR,SENSOR,FR,LH

21007-0581

$93.11

41080

DISC,FR,HOUSING+DISC BLK/SIL

41080-0577-5C

$433.70

43045

SHAFT-CALIPER

43045-1053

$7.52

43048

PISTON-CALIPER

43048-0001

$68.36

43048A

PISTON-CALIPER

43048-0021

$38.44

43049

PACKING

43049-0006

$8.60

43049A

PACKING

43049-0007

$8.60

43049B

PACKING

43049-0030

$9.06

43049C

PACKING

43049-0031

$9.06

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0130-DJ

$385.27

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0131-DJ

$385.27

43082

PAD-ASSY-BRAKE

43082-0129

Unavailable

92049

SEAL-OIL

92049-1448

$3.92

92145

SPRING,PAD

92145-0184

$17.88

92153

BOLT,FLANGED,8X30

92153-1089

$2.41

92153A

BOLT,TORX,8X38

92153-1093

$4.18

92153B

BOLT,TORX,8X45

92153-1094

$4.18

92154

BOLT,SOCKET,8X30

92154-0844

$4.10
