2016 Kawasaki Z800 ABS Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

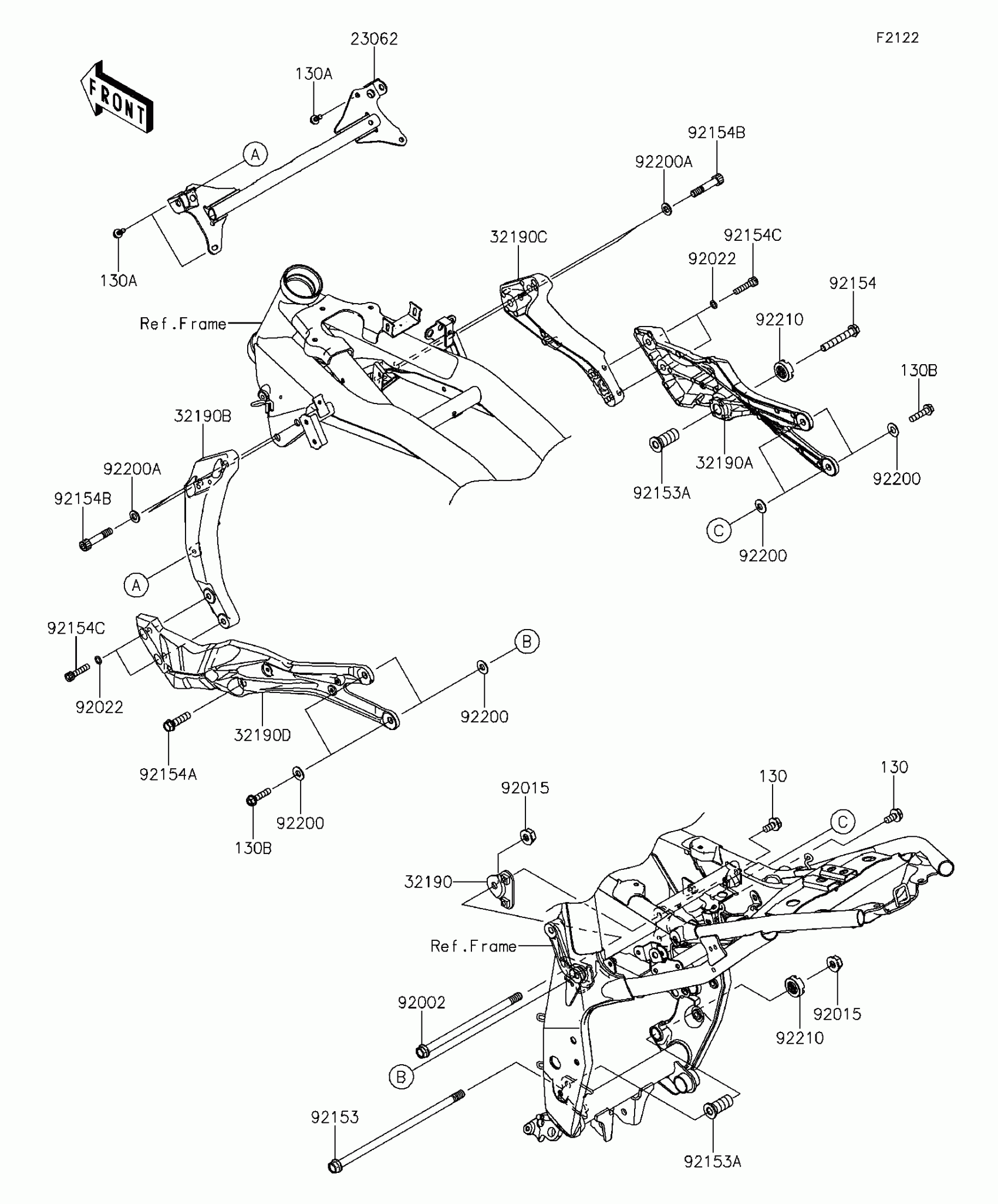

2016 Kawasaki Z800 ABS Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130BB0816

1

$1.47

In stock

130A

BOLT-FLANGED,6X18

130CB0618

1
Out of stock

130B

BOLT-FLANGED,8X35

130CB0835

1

$4.00

In stock

23062

BRACKET-COMP,ENGINE

23062-0776

1

$126.17

In stock

32190

1

$12.19

In stock

32190A

BRACKET-ENGINE,RR,RH,F.S.BLACK

32190-0620-18R

1
Out of stock

32190B

1

$184.32

In stock

32190C

1

$184.32

In stock

32190D

1

$221.36

In stock

92002

BOLT,10X183

92002-1337

1

$14.88

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92022

WASHER,8.5X13X1

92022-1028

1

$3.12

In stock

92153

BOLT,FLANGED,10X240

92153-0559

1
Out of stock

92153A

BOLT,ENGINE MOUNT,18MM

92153-1098

1
Out of stock

92154

BOLT,FLANGED,10X65

92154-0312

1

$6.10

In stock

92154A

BOLT,FLANGED,10X40

92154-0313

1

$4.44

In stock

92154B

BOLT,SOCKET,10X50

92154-0729

1

$3.49

In stock

92154C

BOLT,SOCKET,8X35

92154-1708

1

$2.27

In stock

92200

WASHER,10X22X3

92200-0832

1
Out of stock

92200A

WASHER,10.5X19X2.3

92200-1042

1
Out of stock

92210

NUT,18MM

92210-1203

1
Out of stock
