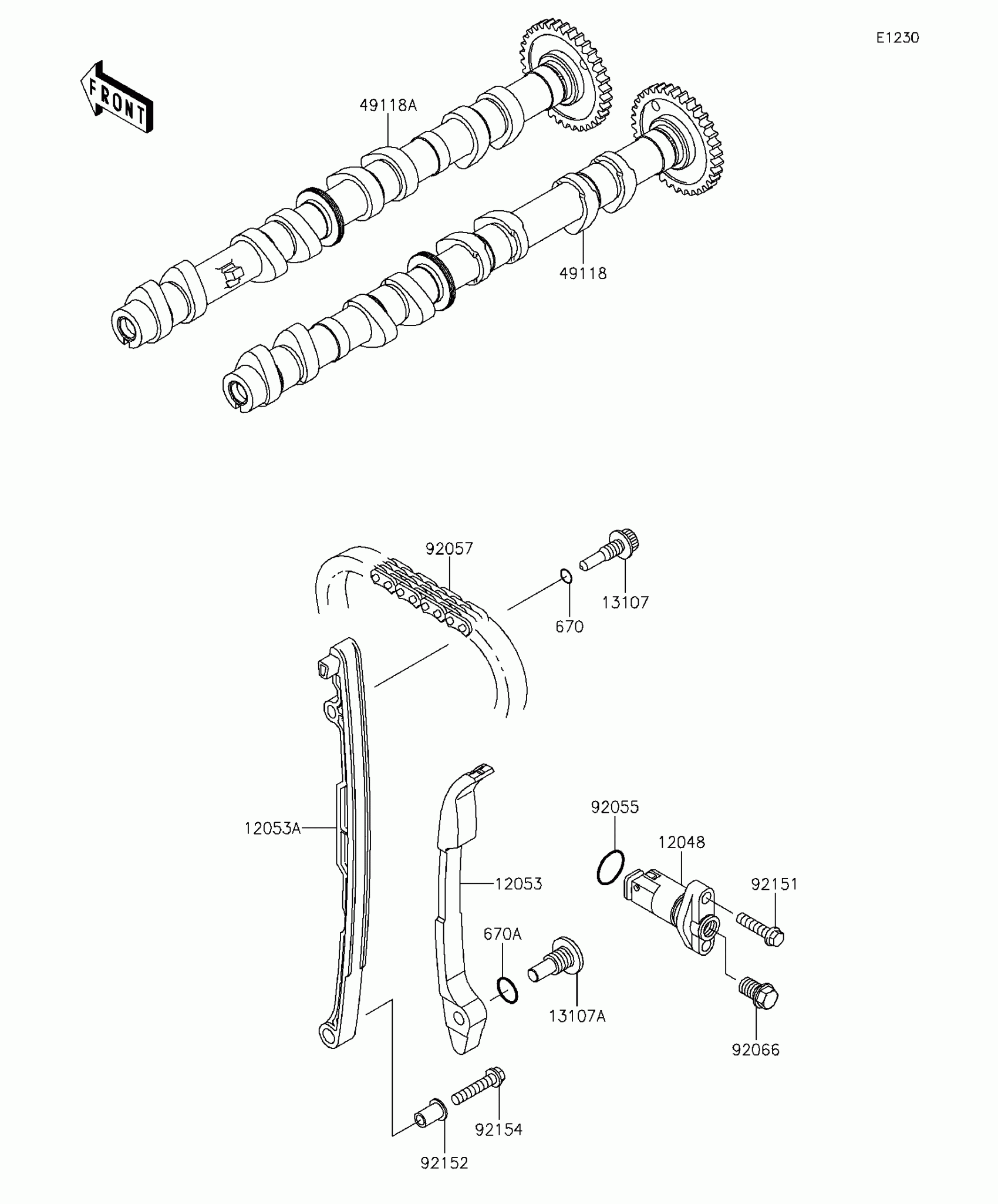

Kawasaki Z800 ABS Camshaft(s)/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-0035

$145.14

12053

GUIDE-CHAIN,RR

12053-1399

$43.30

12053A

GUIDE-CHAIN,FR

12053-1478

$45.32

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

13107A

SHAFT,CHAIN GUIDE

13107-0745

$13.40

49118

CAMSHAFT-COMP,INTAKE

49118-0760

$648.13

49118A

CAMSHAFT-COMP,EXHAUST

49118-0761

$648.13

670

O RING,9MM

670D1509

$4.69

670A

O RING,14MM

670D2014

$5.52

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,92RH2015 126M

92057-0602

$99.05

92066

PLUG

92066-0738

$9.51

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-1167

$6.00

92154

BOLT,FLANGED,6X30

92154-1080

$1.19
