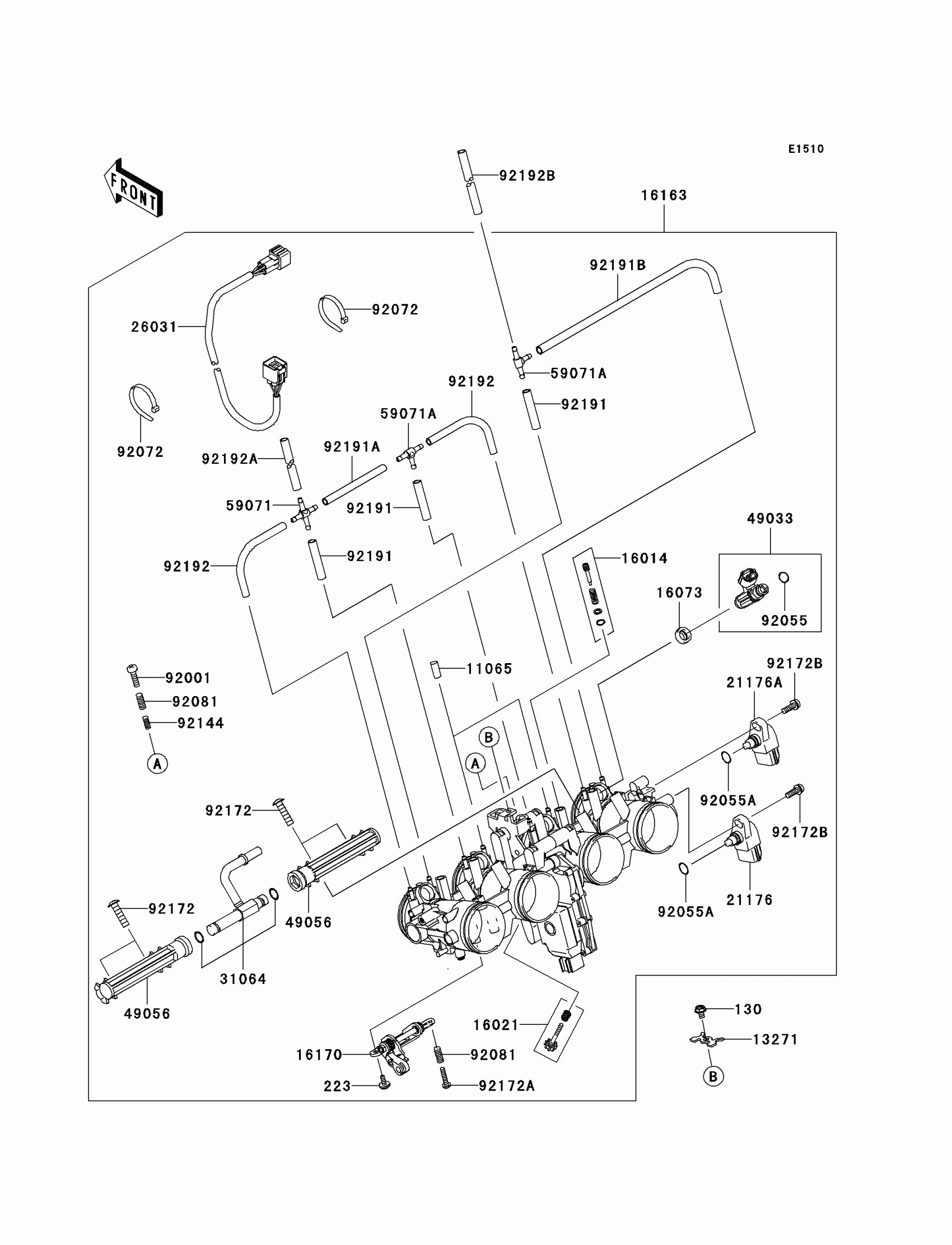

Kawasaki Z750S Throttle Diagram

#

Description
Price

130

BOLT-FLANGED,5X8

130G0508

$1.85

223

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

11065

CAP

11065-0018

$6.12

13271

PLATE

13271-0056

$3.74

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0002

$79.62

16073

INSULATOR

16073-3707

$6.18

16163

THROTTLE-ASSY

16163-0065

$2,003.30

16170

LINK-ASSY

16170-0002

$235.01

21176

SENSOR,TPS

21176-0002

$217.59

21176A

SENSOR,TPS

21176-0003

$217.59

26031

HARNESS

26031-0313

$87.44

31064

PIPE-COMP

31064-0005

$24.61

49033

NOZZLE-INJECTION

49033-0005

$137.02

49056

PIPE-INJECTION

49056-0001

$103.85

59071

JOINT,4WAY

59071-0014

$14.58

59071A

JOINT,3WAY,T

59071-3752

$10.19

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92055A

RING-O

92055-1671

$3.73

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92081

SPRING

92081-1620

$4.96

92144

SPRING

92144-1451

$9.58

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW,THROTTLE SYNCRO

92172-0065

$3.04

92172B

SCREW

92172-0080

$5.00

92191

TUBE,3X7X30

92191-0025

$2.43

92191A

TUBE,3X7X82

92191-0036

$4.41

92191B

TUBE,3X7X265

92191-0038

$13.58

92192

TUBE,3X7X95

92192-0018

$4.22

92192A

TUBE,3X7X170

92192-0019

$12.96

92192B

TUBE,3X7X275

92192-0062

$7.71
