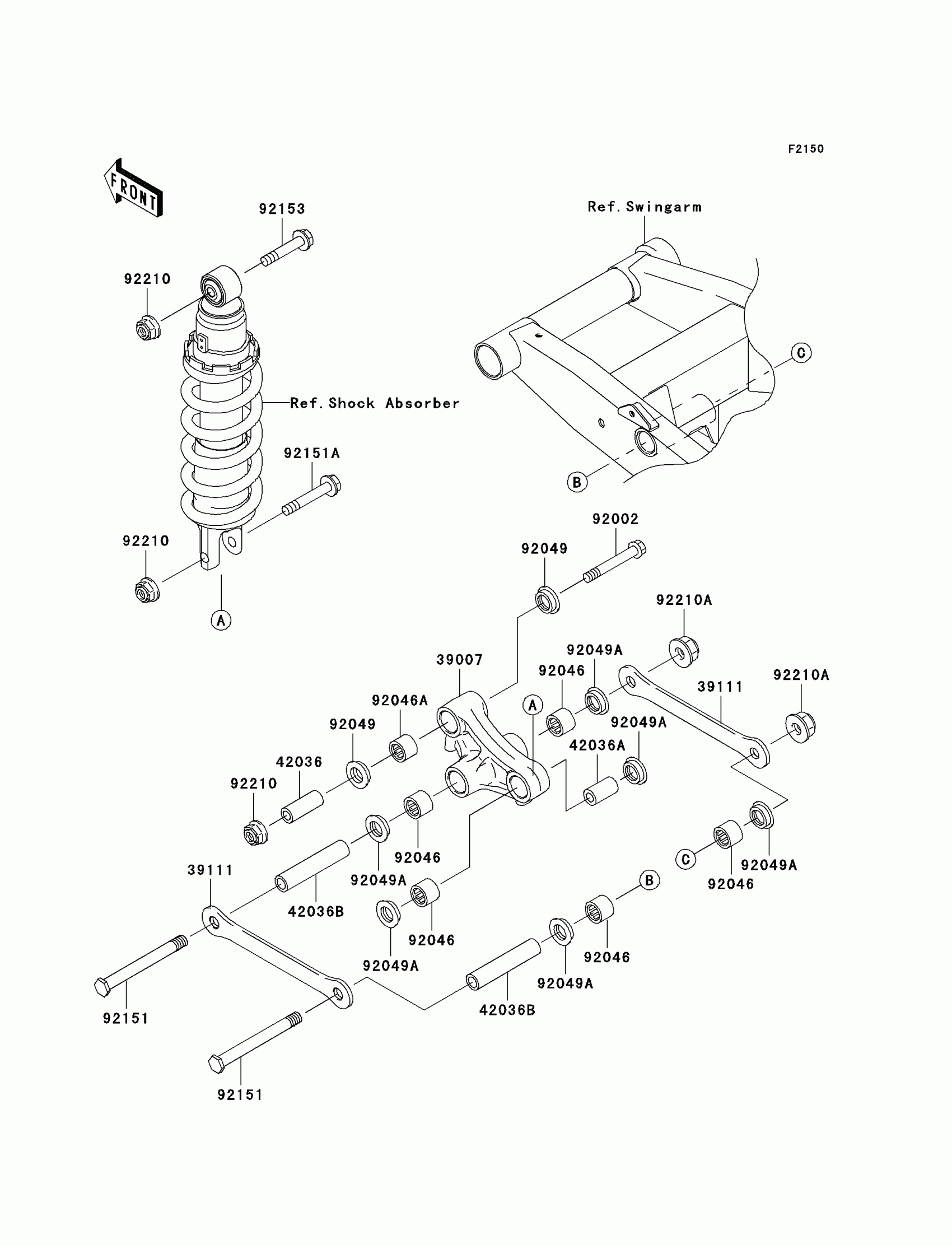

Kawasaki Z750S Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0006

$239.89

39111

ROD-TIE,SUSPENSION

39111-0017

$33.00

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

42036A

SLEEVE,10.1X18X32

42036-1344

$11.28

42036B

SLEEVE,12.1X18X90

42036-1360

$15.99

92002

BOLT,10X70

92002-1183

$10.37

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92049A

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92151

BOLT,12X114

92151-1318

$22.70

92151A

BOLT,FLANGED,10X62

92151-1601

$6.28

92153

BOLT,FLANGED,10X53

92153-0343

$10.54

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
