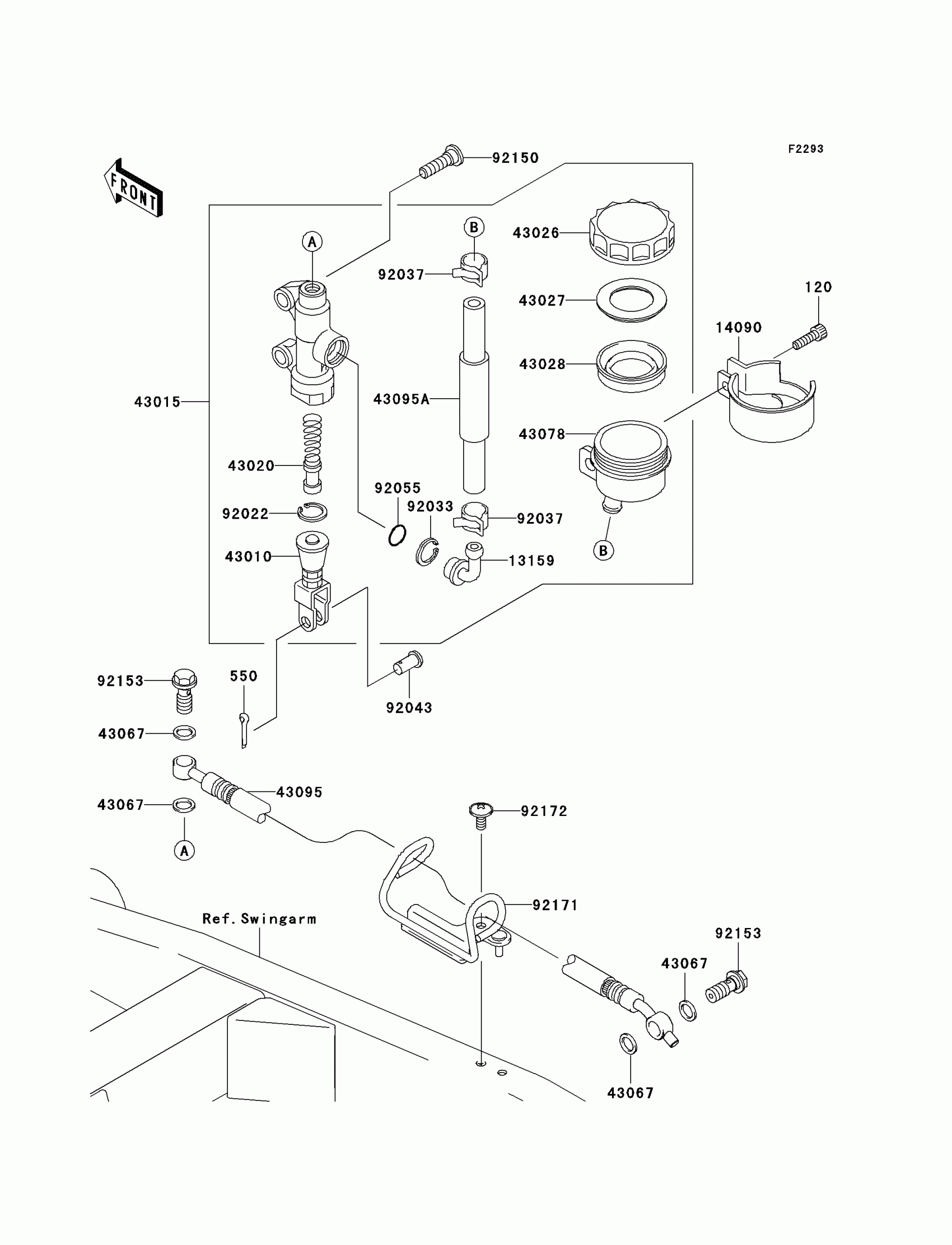

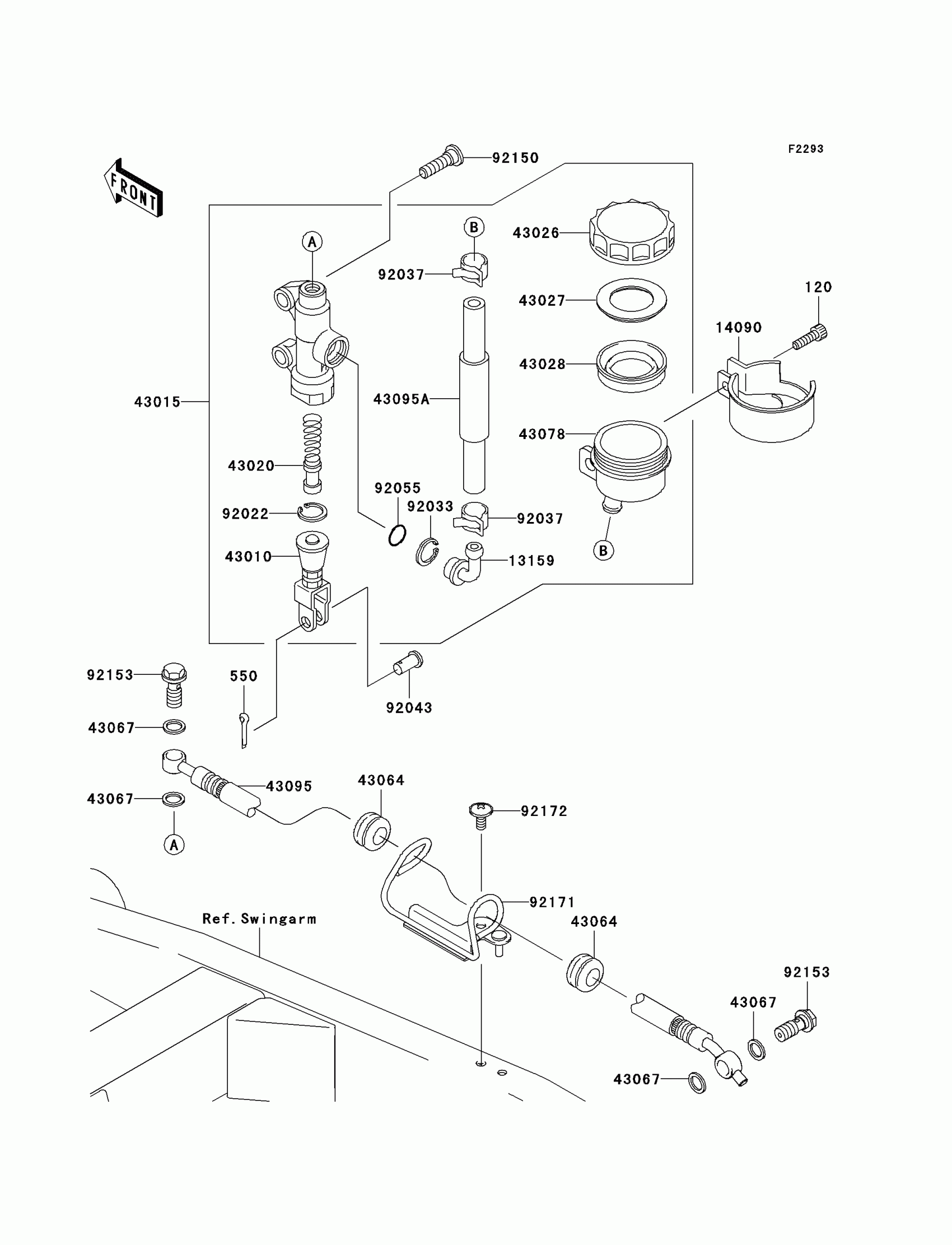

Kawasaki Z750S Rear Master Cylinder Diagram
#
Description
Price
120
BOLT-SOCKET,6X20
120S0620
Unavailable
550
PIN COTTER 2.0X15
550D2015
$1.04
13159
CONNECTOR,RR MASTER CYLINDER
13159-1052
$14.10
14090
COVER,RESERVOIR TANK
14090-1482
$22.32
43010
ROD-ASSY-BRAKE
43010-1062
$51.24
43015
CYLINDER-ASSY-MASTER,RR
43015-1706
$454.16
43020
PISTON-COMP-BRAKE
43020-1094
$65.22
43026
CAP-BRAKE
43026-1051
$34.20
43027
PLATE-DIAPHRAGM
43027-1051
$5.32
43028
DIAPHRAGM,MASTER CYLINDER
43028-1057
$19.09
43064
GROMMET,HOSE CLAMP
43064-006
$4.31
43067
WASHER,10.5X15X1.5
43067-001
$2.15
43078
RESERVOIR,RR MASTER CYLINDER
43078-1165
$30.28
43095
HOSE-BRAKE,RR
43095-0117
$79.99
43095A
HOSE-BRAKE,RR MASTER CYLINDER
43095-1292
$37.26
92022
WASHER,CIRCRIP
92022-1601
Unavailable
92033
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP,BRAKE HOSE
92037-1547
$12.35
92043
PIN,8MM
92043-1303
$3.90
92055
RING-O,MASTER CYLINDER
92055-1251
Unavailable
92150
BOLT,SOCKET,8X30
92150-1843
$3.90
92153
BOLT,OIL,L=23
92153-0627
$5.48
92171
CLAMP,BRAKE HOSE
92171-0489
$35.25
92172
SCREW,6X14
92172-0004
$2.80
