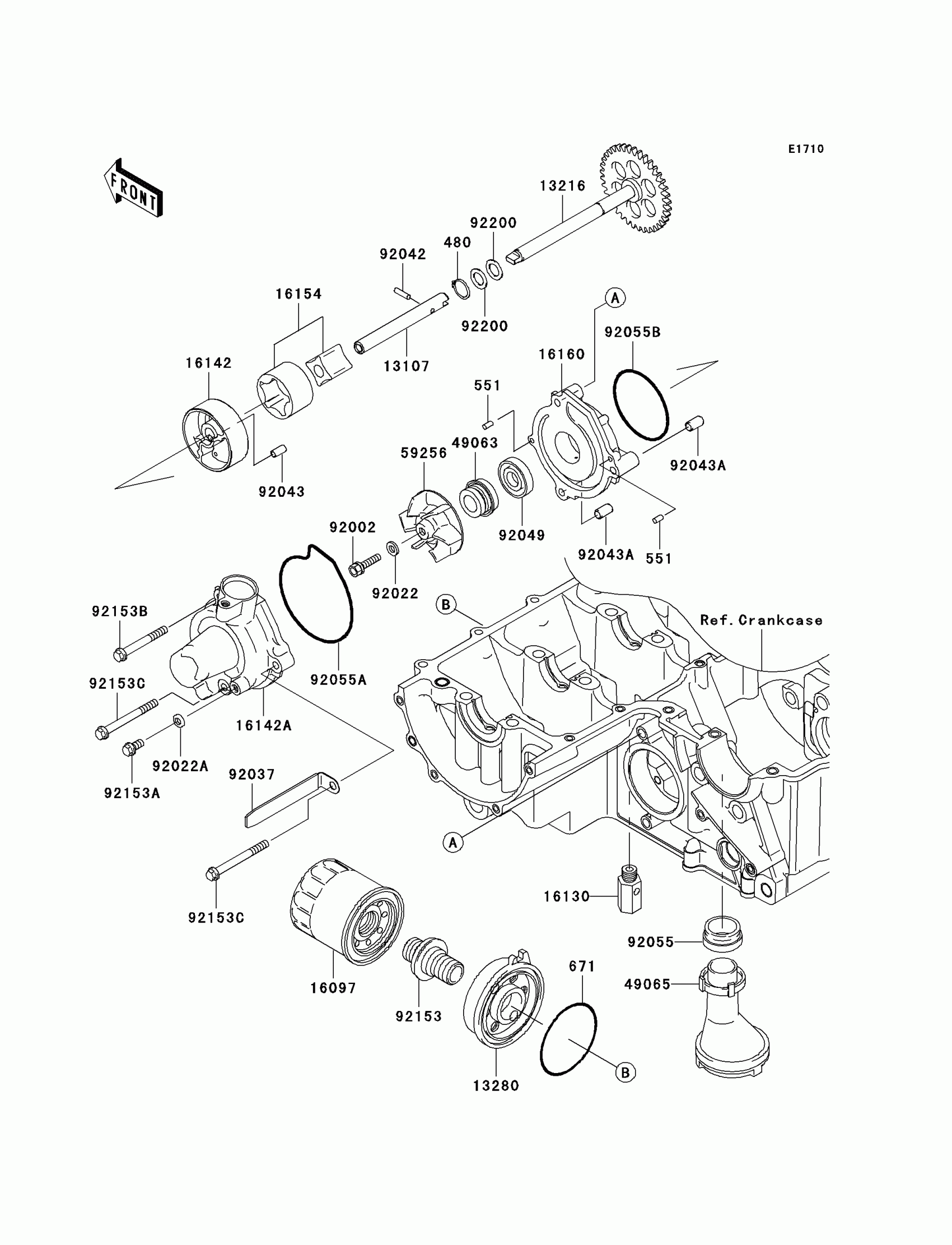

Kawasaki Z750S Oil Pump/Oil Filter Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

551

PIN-DOWEL,4X8

551A0408

$0.78

671

O RING,65MM

671B2565

$8.86

13107

SHAFT,OIL PUMP

13107-0046

$30.83

13216

GEAR-COMP,OIL PUMP,37T

13216-1168

$126.58

13280

HOLDER

13280-0022

$53.07

16097

FILTER-ASSY-OIL

16097-0002

$14.50

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP,OIL

16142-1146

$47.52

16142A

COVER-PUMP,WATER

16142-1174

Unavailable

16154

ROTOR-PUMP

16154-1124

$70.09

16160

BODY,OIL PUMP

16160-1280

$127.89

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-1078

$17.39

59256

IMPELLER

59256-1074

Unavailable

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,6.2X11X1

92022-304

$3.65

92037

CLAMP

92037-1679

$5.52

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,4.2X6X12

92043-1262

$4.31

92043A

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,OIL FILTER

92055-1503

$9.51

92055A

RING-O,WATER PUMP COVER

92055-1571

$14.17

92055B

RING-O,59.6X2.4

92055-3018

$6.22

92153

BOLT

92153-0424

$49.22

92153A

BOLT,6X12

92153-0605

$2.15

92153B

BOLT,6X50

92153-0606

$3.28

92153C

BOLT,6X60

92153-0607

$3.12

92200

WASHER

92200-1009

$5.07
