2005 Kawasaki Z750S Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

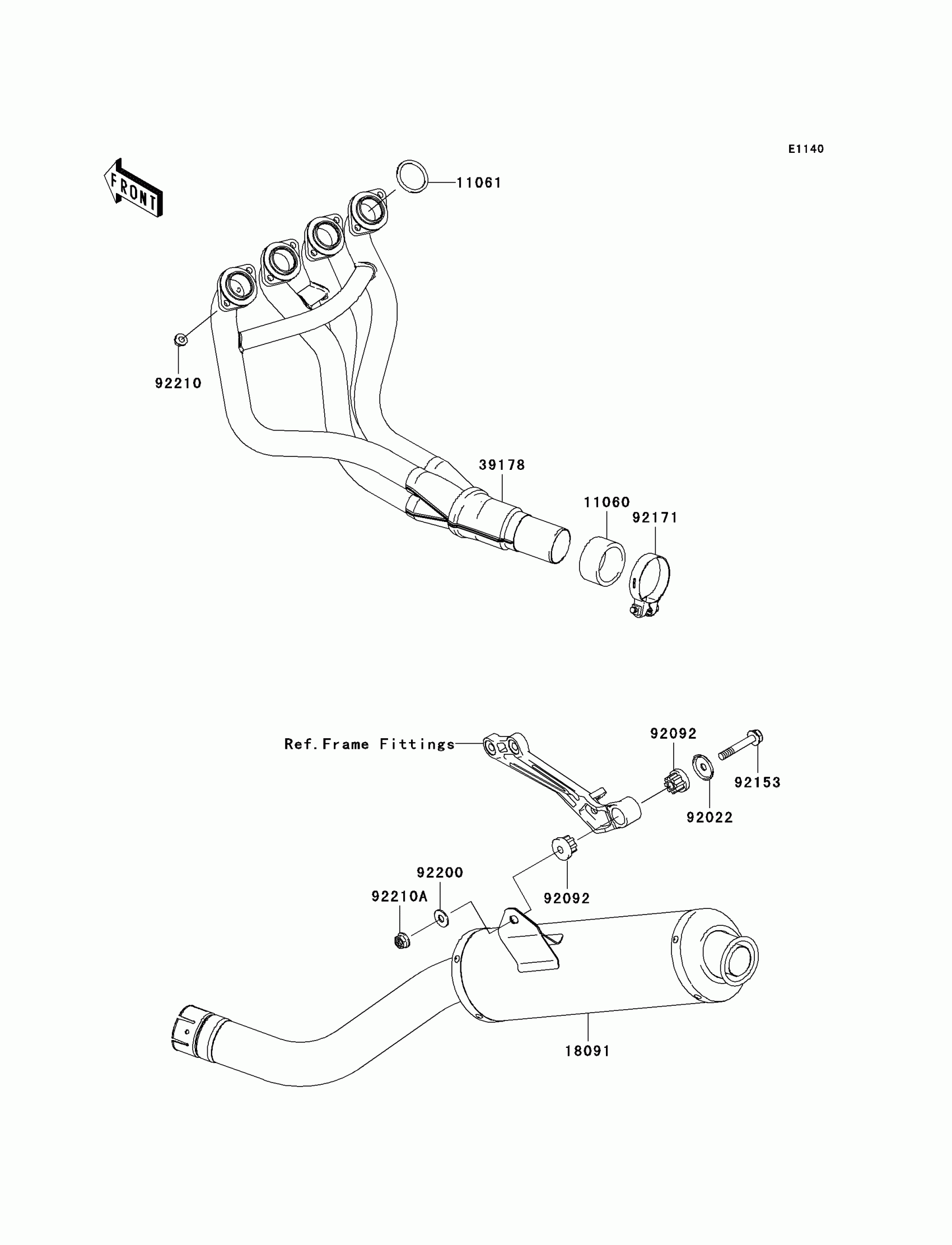

2005 Kawasaki Z750S Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET

11060-1971

1

$31.21

In stock

11061

GASKET,EXHAUST PIPE

11061-0158

1

$11.93

In stock

18091

BODY-COMP-MUFFLER

18091-0239

1

$1,149.47

In stock

39178

1

$862.48

In stock

92022

WASHER

92022-289

1
Out of stock

92092

1

$18.45

In stock

92153

BOLT,10X62

92153-0526

1
Out of stock

92171

CLAMP

92171-0360

1

$29.61

In stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92210

NUT,8MM

92210-0121

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
