2005 Kawasaki Z750S Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

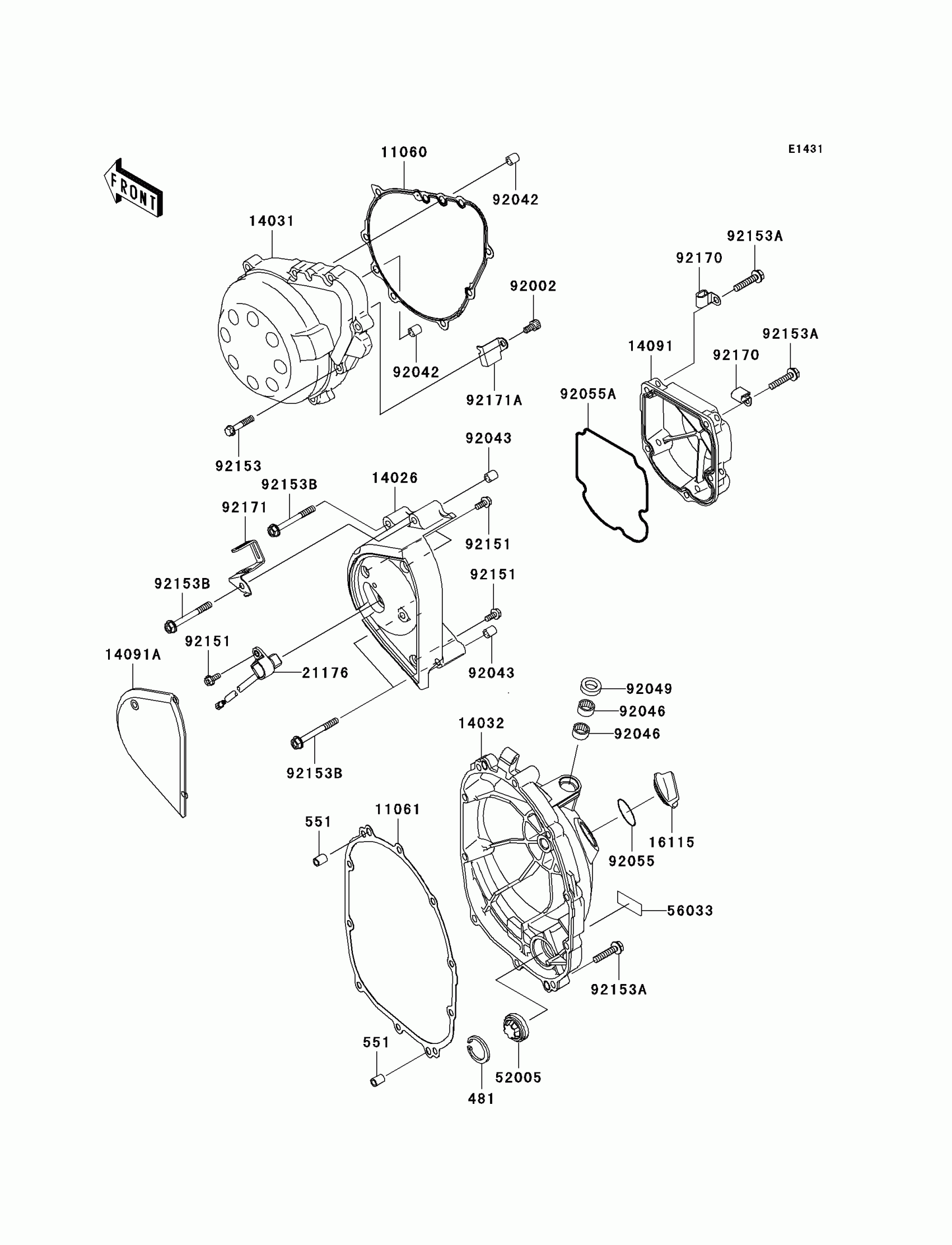

2005 Kawasaki Z750S Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

481

1

$1.25

In stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

11060

1

$26.68

In stock

11061

GASKET,CLUTCH COVER

11061-1166

1

$35.11

In stock

14026

COVER-CHAIN

14026-1293

1

$256.26

In stock

14031

COVER-GENERATOR

14031-0010

1

$278.88

In stock

14032

COVER-CLUTCH

14032-0015

1

$302.99

In stock

14091

COVER,PULSE

14091-0106

1

$49.57

In stock

14091A

COVER,RELEASE

14091-1529

1

$69.41

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

21176

SENSOR,SPEED

21176-0032

1

$134.28

In stock

52005

GAUGE

52005-1120

1

$21.14

In stock

56033

1

$5.43

In stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,PULSE COVER

92055-1570

1

$11.82

In stock

92151

BOLT,FLANGED,5X12

92151-1305

1

$1.39

In stock

92153

BOLT,6X30

92153-0601

1
Out of stock

92153A

BOLT,6X30

92153-0608

1
Out of stock

92153B

BOLT,FLANGED,M6X55

92153-0609

1
Out of stock

92170

CLAMP

92170-1577

1

$3.03

In stock

92171

CLAMP

92171-0067

1

$15.49

In stock

92171A

CLAMP

92171-1566

1

$4.15

In stock
