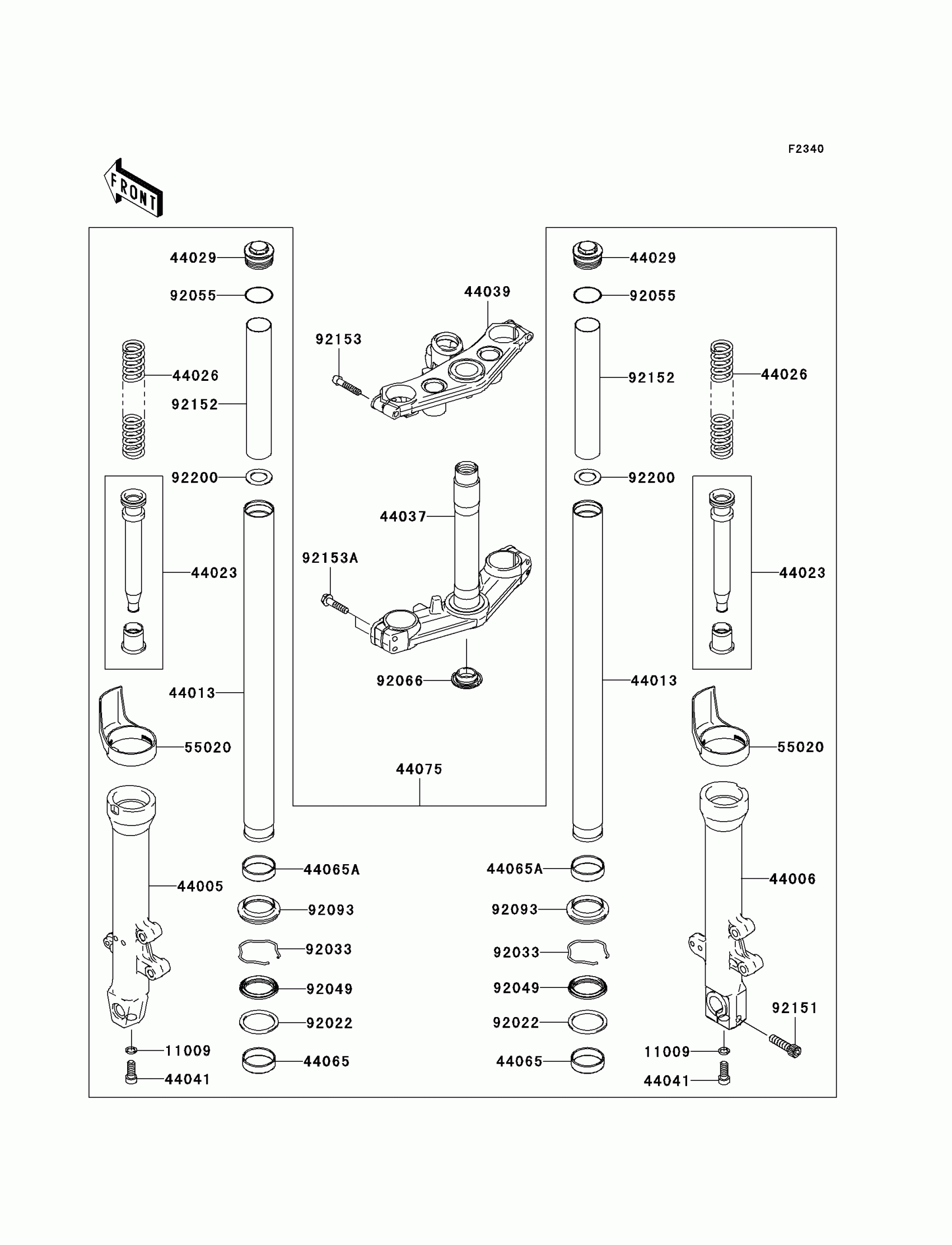

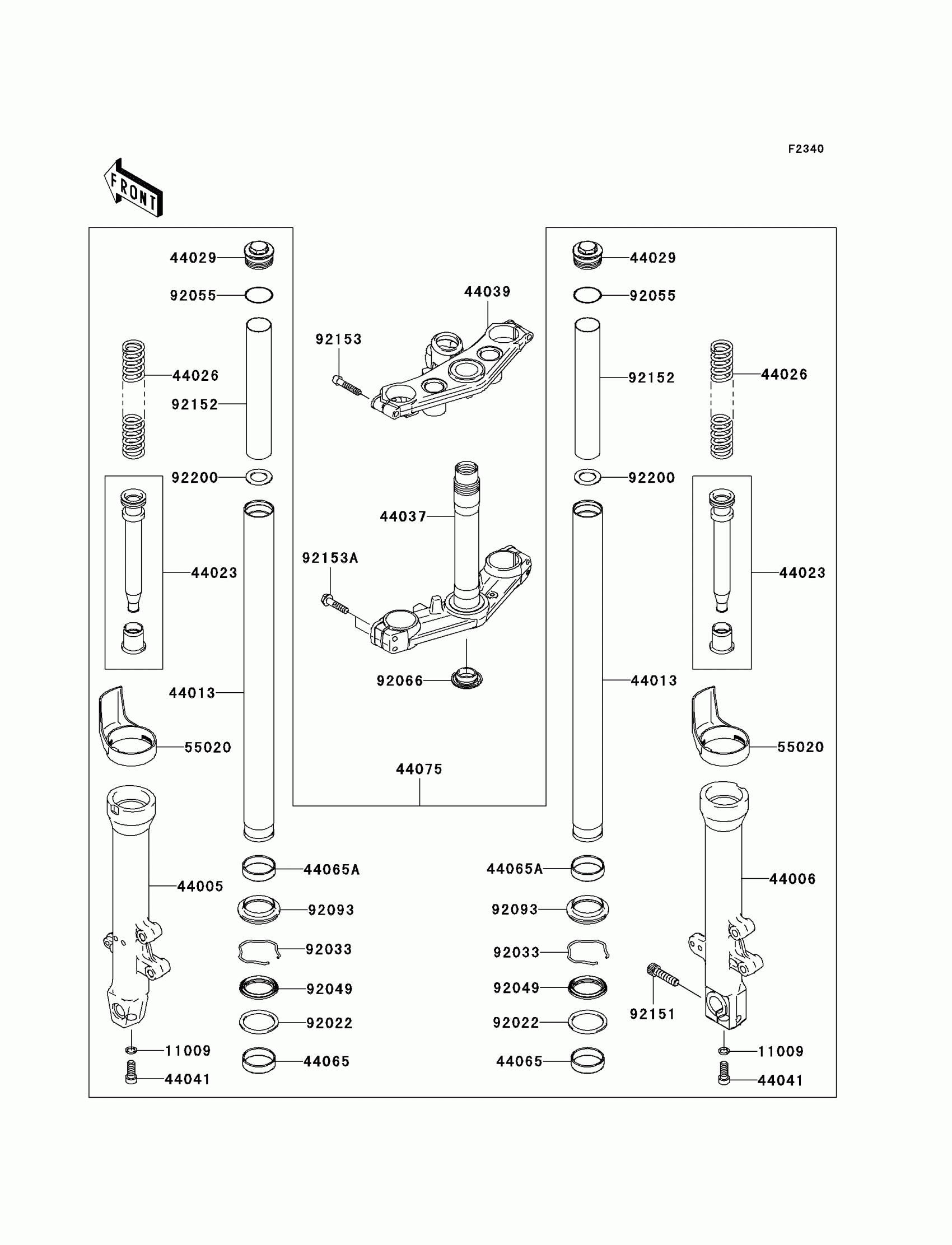

Kawasaki Z750S Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
44005
PIPE-LEFT FORK OUTER
44005-0032
$436.89
44006
PIPE-RIGHT FORK OUTER
44006-0031
$436.89
44013
PIPE-FORK INNER
44013-0038
$348.62
44023
CYLINDER-SET-FORK
44023-0033
Unavailable
44026
SPRING-FRONT FORK
44026-0063
$90.62
44029
SEAT-FORK SPRING
44029-0005
$44.62
44037
HOLDER-FORK UNDER
44037-0028
$413.98
44039
HOLDER-FORK UPPER
44039-0021
$305.24
44041
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
44065
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
$28.71
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1128
$17.39
44075
DAMPER-SET-FORK
44075-0059
$1,185.55
55020
GUARD,FORK
55020-1691
$9.83
92022
WASHER,FORK OUTER TUBE
92022-1298
$8.58
92033
RING-SNAP
92033-1036
$6.51
92049
SEAL-OIL,FORK OUTER TUBE
92049-1494
$21.38
92055
RING-O
92055-1321
$1.35
92066
PLUG
92066-0032
$11.66
92093
SEAL,FORK OUTER TUBE
92093-1472
$23.76
92151
BOLT,SOCKET,10X40
92151-1357
$3.99
92152
COLLAR,FORK,L=219.5
92152-0279
$19.12
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92153A
BOLT,FLANGED,8X35
92153-0649
$3.54
92200
WASHER
92200-1302
$4.87
