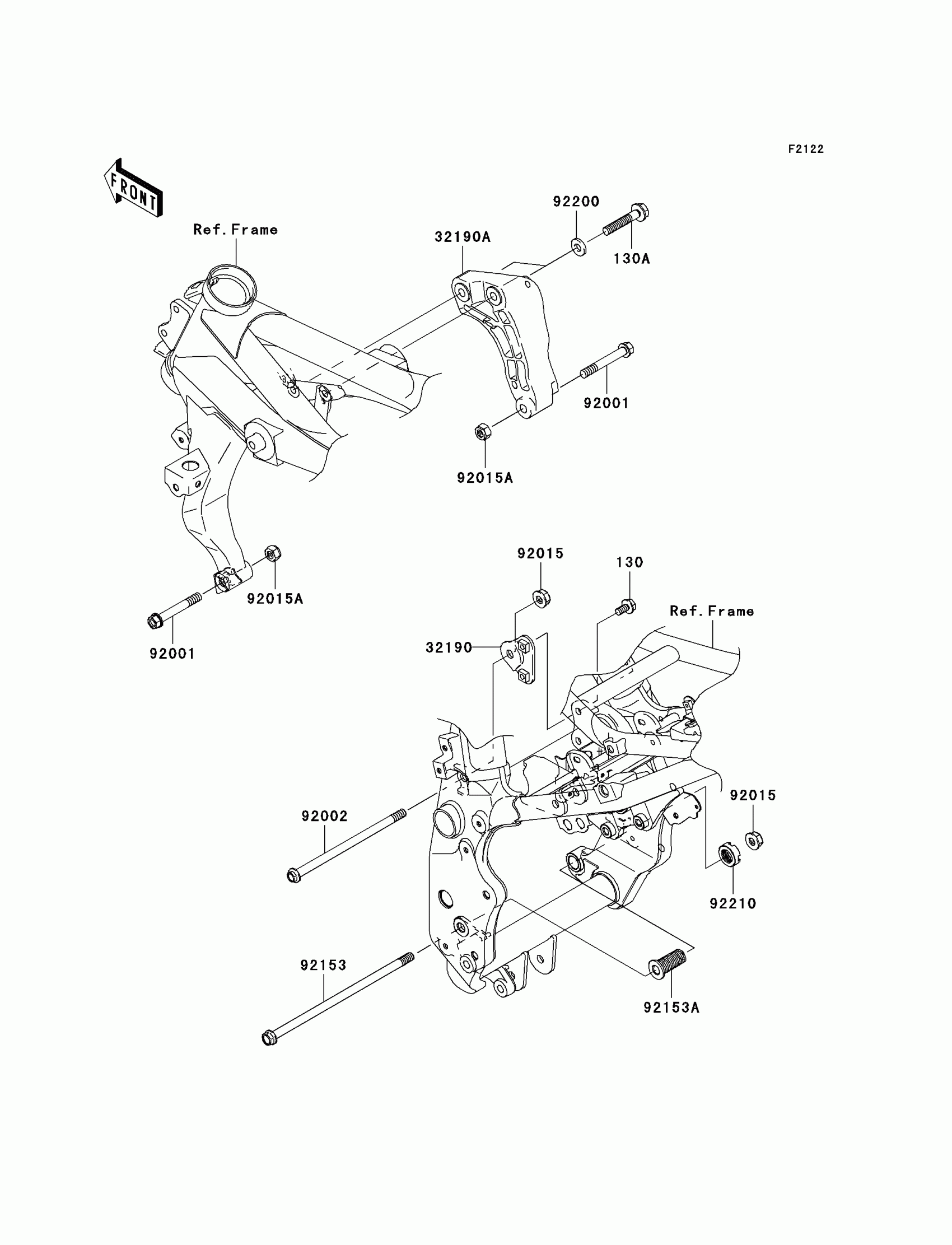

Kawasaki Z750S Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X16

130J0816

$1.66

130A

BOLT-FLANGED,10X55

130J1055

$6.21

32190

BRACKET-ENGINE,RR,RH,UPP

32190-0009

$11.91

32190A

BRACKET-ENGINE,FR,RH

32190-0134

$73.11

92001

BOLT,FLANGED,10X70

92001-1618

$10.37

92002

BOLT,10X183

92002-1337

$15.74

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92015A

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92153

BOLT,FLANGED,10X240

92153-0559

$29.45

92153A

BOLT,ENGINE MOUNT,18MM

92153-1098

$24.58

92200

WASHER,10X22X3.2

92200-0121

$2.38

92210

NUT,18MM

92210-1203

$17.76
