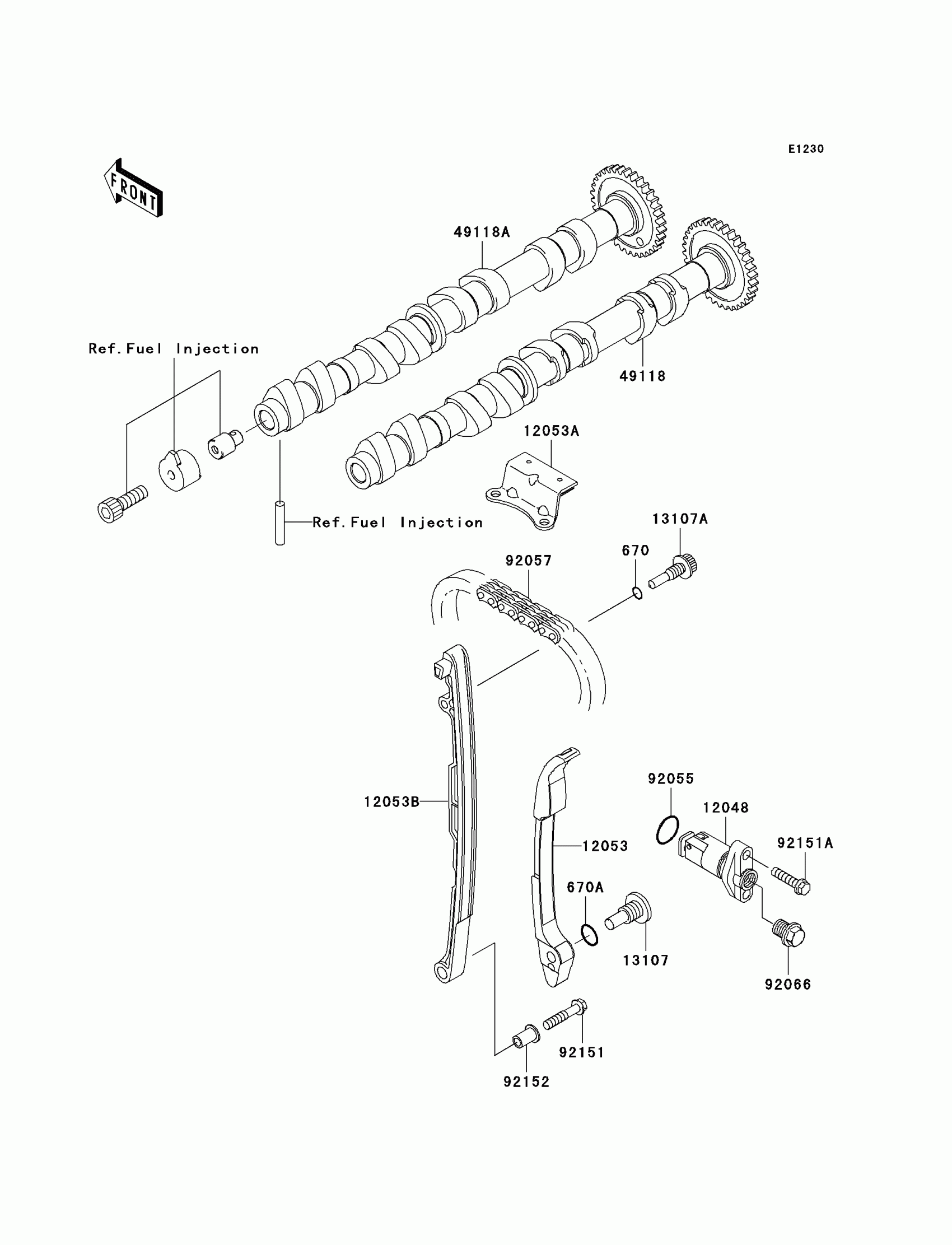

Kawasaki Z750S Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,9MM

670D1509

$4.69

670A

O RING,14MM

670D2014

$5.52

12048

TENSIONER-ASSY

12048-0003

$156.30

12053

GUIDE-CHAIN,RR

12053-1399

$43.30

12053A

GUIDE-CHAIN,UPP

12053-1473

$41.22

12053B

GUIDE-CHAIN,FR

12053-1478

$45.32

13107

SHAFT

13107-1376

$8.68

13107A

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

49118

CAMSHAFT-COMP,INTAKE

49118-0010

$736.46

49118A

CAMSHAFT-COMP,EXHAUST

49118-0011

$736.46

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,92RH2015-126M

92057-1453

$99.55

92066

PLUG

92066-3780

$18.20

92151

BOLT,6X30

92151-1134

$2.15

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-1167

$6.00
