2005 Kawasaki Z750S Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2005 Kawasaki Z750S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

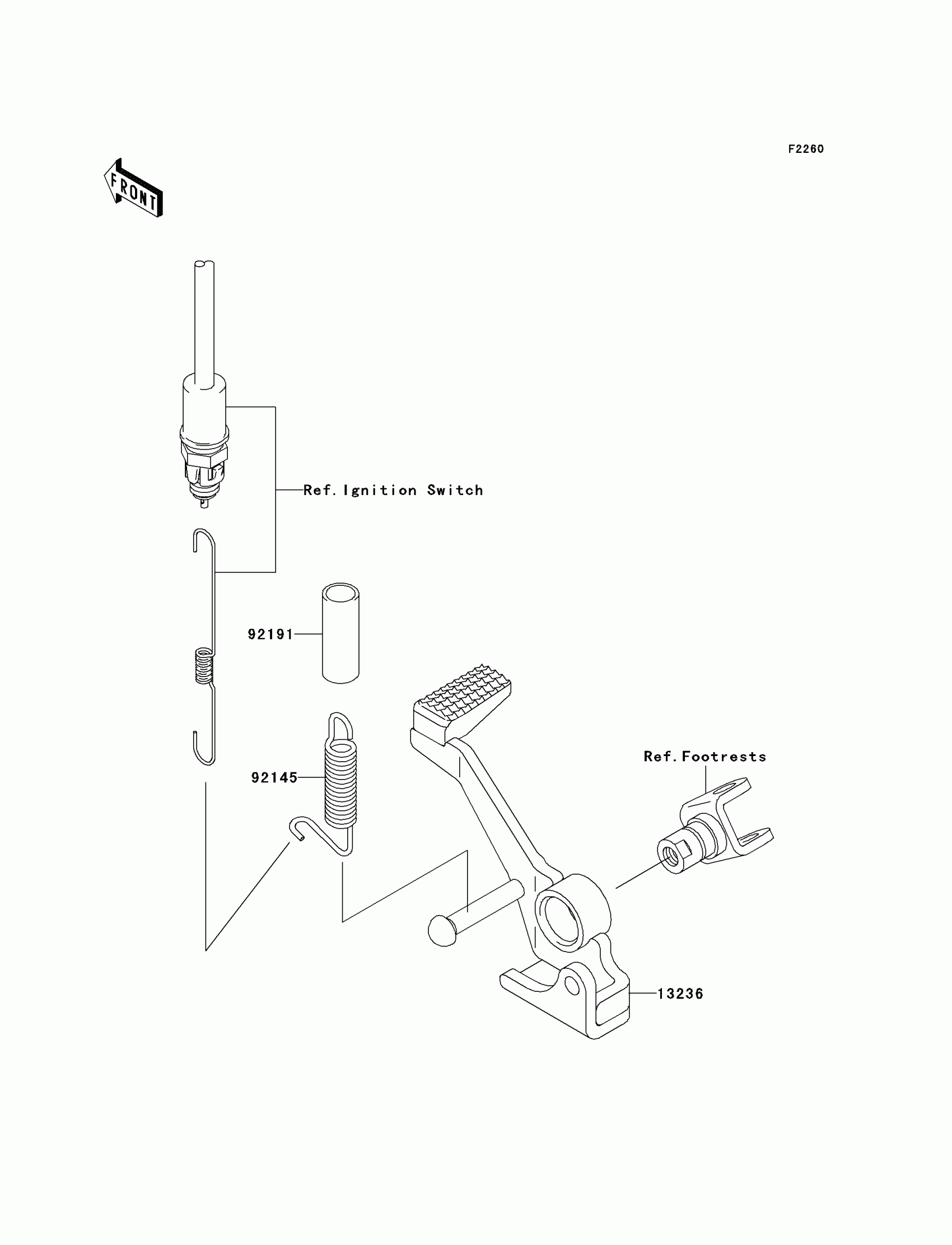

2005 Kawasaki Z750S Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,BRAKE PEDAL

13236-0074

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-1090

1
Out of stock

92191

TUBE,12X15X40

92191-1739

1
Out of stock
