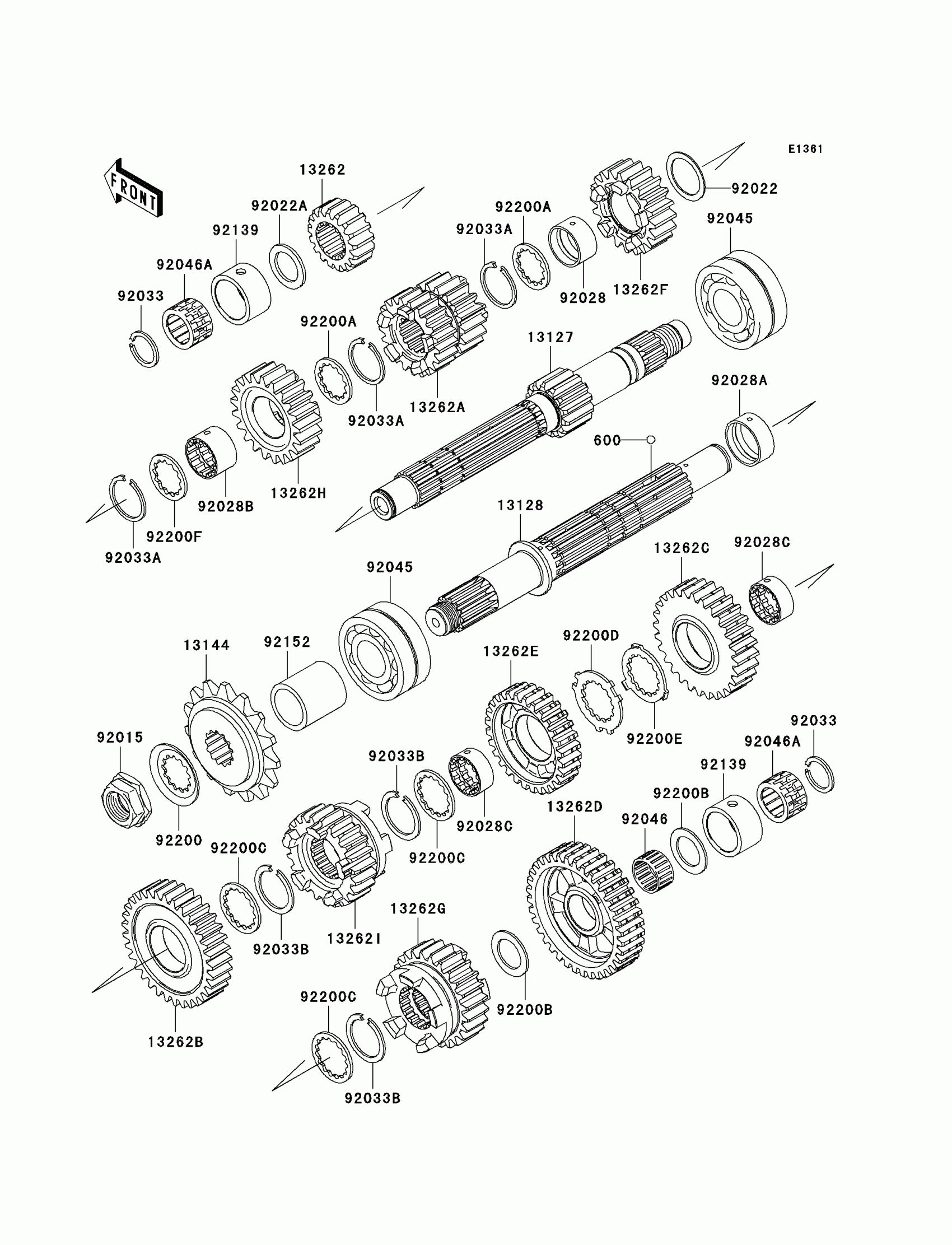

Kawasaki Z750 (European) Transmission Diagram

#

Description
Price

600

BALL-STEEL,5/32

600A0500

$0.81

13127

SHAFT-TRANSMISSION INPUT,14T

13127-0008

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-0005

$246.51

13144

SPROCKET-OUTPUT,15T

13144-0007

Unavailable

13262

GEAR,INPUT 2ND,17T

13262-0064

$133.17

13262A

GEAR,INPUT 3RD&4TH,18T&21T

13262-0065

$134.33

13262B

GEAR,OUTPUT 2ND,33T

13262-0069

$134.33

13262C

GEAR,OUTPUT 3RD,28T

13262-0070

$134.33

13262D

GEAR,OUTPUT LOW,36T

13262-0160

$135.08

13262E

GEAR,OUTPUT 4TH,28T

13262-0162

$131.23

13262F

GEAR,INPUT 5TH,20T

13262-0163

$135.08

13262G

GEAR,OUTPUT 5TH,24T

13262-0164

Unavailable

13262H

GEAR,INPUT TOP,21T

13262-0550

Unavailable

13262I

GEAR,OUTPUT TOP,23T

13262-0551

$132.84

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,25.3X33X1

92022-1109

$5.96

92022A

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92028

BUSHING,INPUT 5TH GEAR

92028-1735

$25.59

92028A

BUSHING,OUTPUT,2ND

92028-1739

$25.59

92028B

BUSHING,INPUT TOP GEAR

92028-1915

$25.83

92028C

BUSHING,OUTPUT,3RD&4TH

92028-1968

$36.29

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92033B

RING-SNAP,T=1.5

92033-1249

$4.96

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$105.03

92046

BEARING-NEEDLE,K20X24X13

92046-1219

$13.37

92046A

BEARING-NEEDLE,PK20X27X17X3

92046-1303

$21.01

92139

BUSHING,27X34X18.6

92139-1090

$31.78

92152

COLLAR,SPROCKET

92152-0177

$25.01

92200

WASHER

92200-1065

$6.63

92200A

WASHER,25.2X31.0X1.5

92200-1239

$7.84

92200B

WASHER,20.5X31X1.5

92200-1375

$4.69

92200C

WASHER,T=2.0

92200-1457

$4.73

92200D

WASHER,25.8X40.5X1.5

92200-1522

$4.83

92200E

WASHER,25.2X37.0X1.0

92200-1523

$6.36

92200F

WASHER,INPUT

92200-1524

$4.13
