2010 Kawasaki Z750 (European) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2010 Kawasaki Z750 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

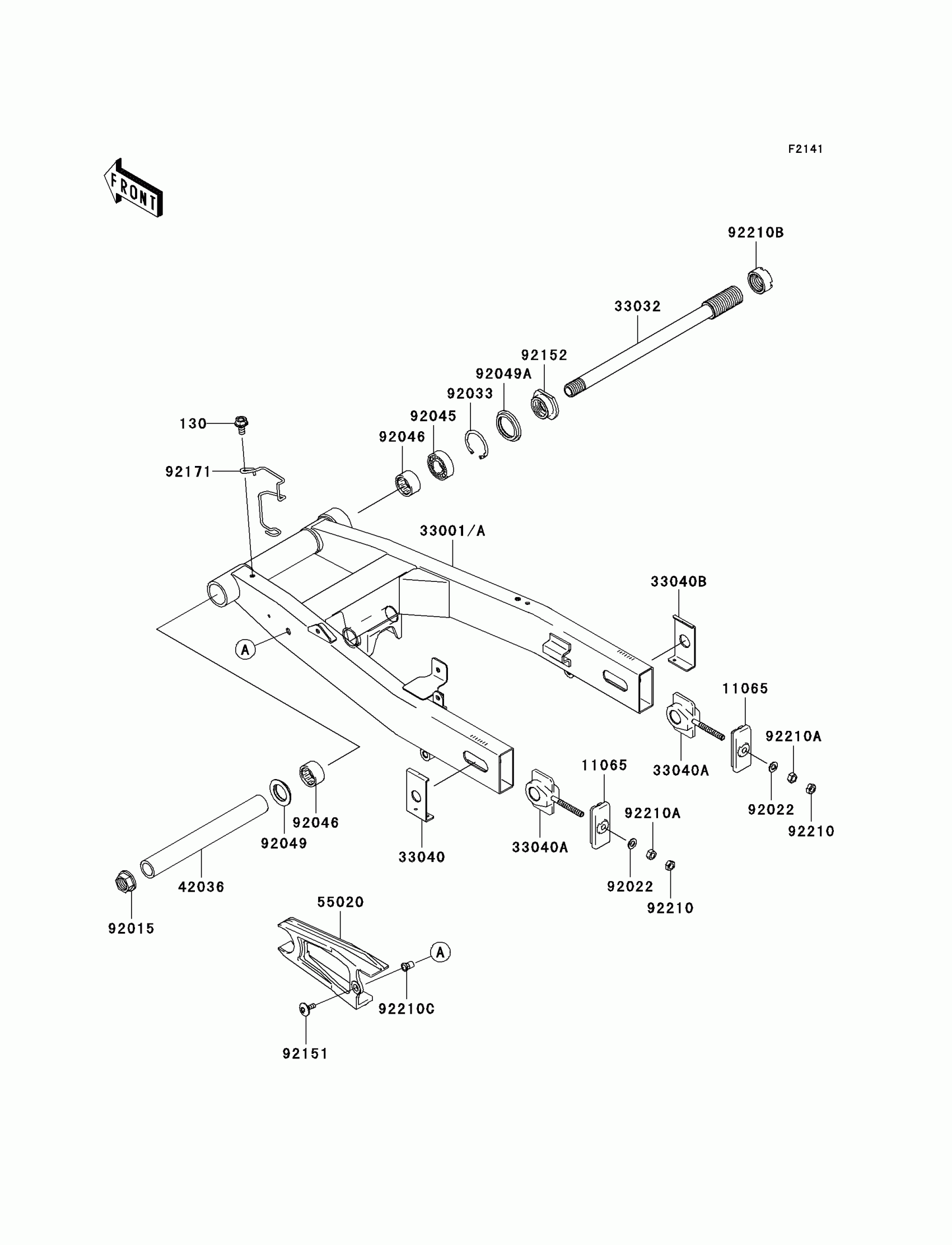

2010 Kawasaki Z750 (European) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

11065

CAP,CHAIN ADJUSTER

11065-0055

1
Out of stock

33001A

ARM-COMP-SWING,BLACK

33001-0103-18R

1
Out of stock

33032

SHAFT-SWING ARM

33032-0005

1
Out of stock

33040

ADJUSTER-CHAIN,OUTER,LH

33040-0009

1
Out of stock

33040A

ADJUSTER-CHAIN,INNER

33040-0012

1
Out of stock

33040B

ADJUSTER-CHAIN,OUTER,RH

33040-1143

1
Out of stock

42036

SLEEVE,SWING ARM,L=237

42036-1264

1
Out of stock

55020

GUARD,CHAIN

55020-0061

1
Out of stock

92015

NUT,FLANGED,20MM

92015-1724

1
Out of stock

92022

WASHER,8.5X16X1.2

92022-1582

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92045

BEARING-BALL,6004UL11

92045-0017

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

1
Out of stock

92151

BOLT,SOCKET,6X18

92151-1149

1
Out of stock

92152

COLLAR,SWING ARM PIVOT,RH

92152-0136

1
Out of stock

92171

CLAMP

92171-0141

1
Out of stock

92210

NUT,8MM

92210-0116

1
Out of stock

92210A

NUT,8MM

92210-0117

1
Out of stock

92210B

NUT,28X1.0

92210-1347

1
Out of stock

92210C

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
