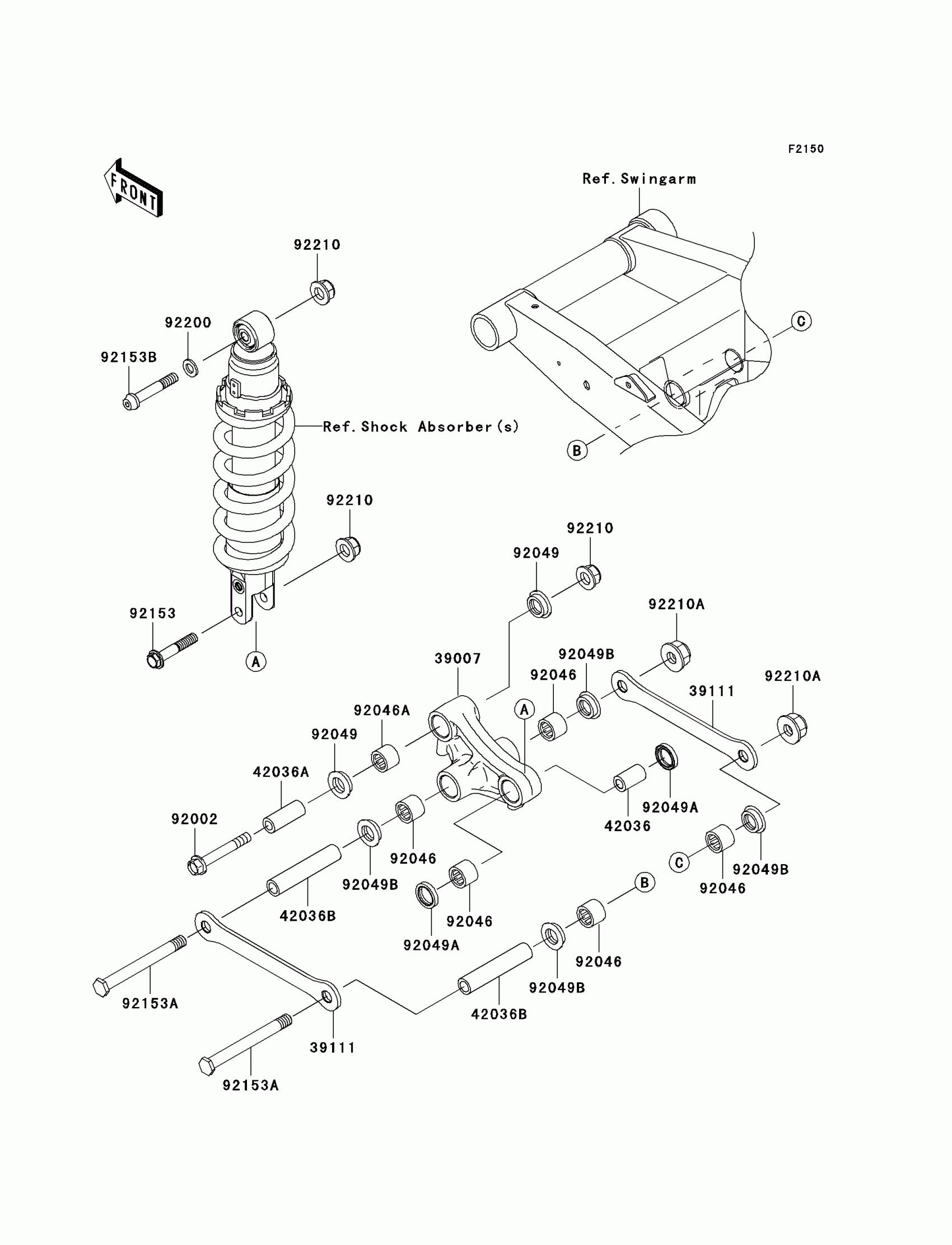

Kawasaki Z750 (European) Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0006

$244.97

39111

ROD-TIE,SUSPENSION

39111-0050

$39.12

42036

SLEEVE,10.1X18X30

42036-1258

$10.19

42036A

SLEEVE,10.1X17X44.5

42036-1342

$10.83

42036B

SLEEVE,12.1X18X90

42036-1360

$12.14

92002

BOLT,10X70

92002-1183

$7.89

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92049A

SEAL-OIL,MHA18244

92049-1225

$7.08

92049B

SEAL-OIL,KCR MF018N1

92049-1493

$7.00

92153

BOLT,FLANGED,10X55

92153-1546

$7.61

92153A

BOLT,12X114

92153-1662

$21.24

92153B

BOLT,SOCKET,10X60

92153-1837

$10.34

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$4.67
