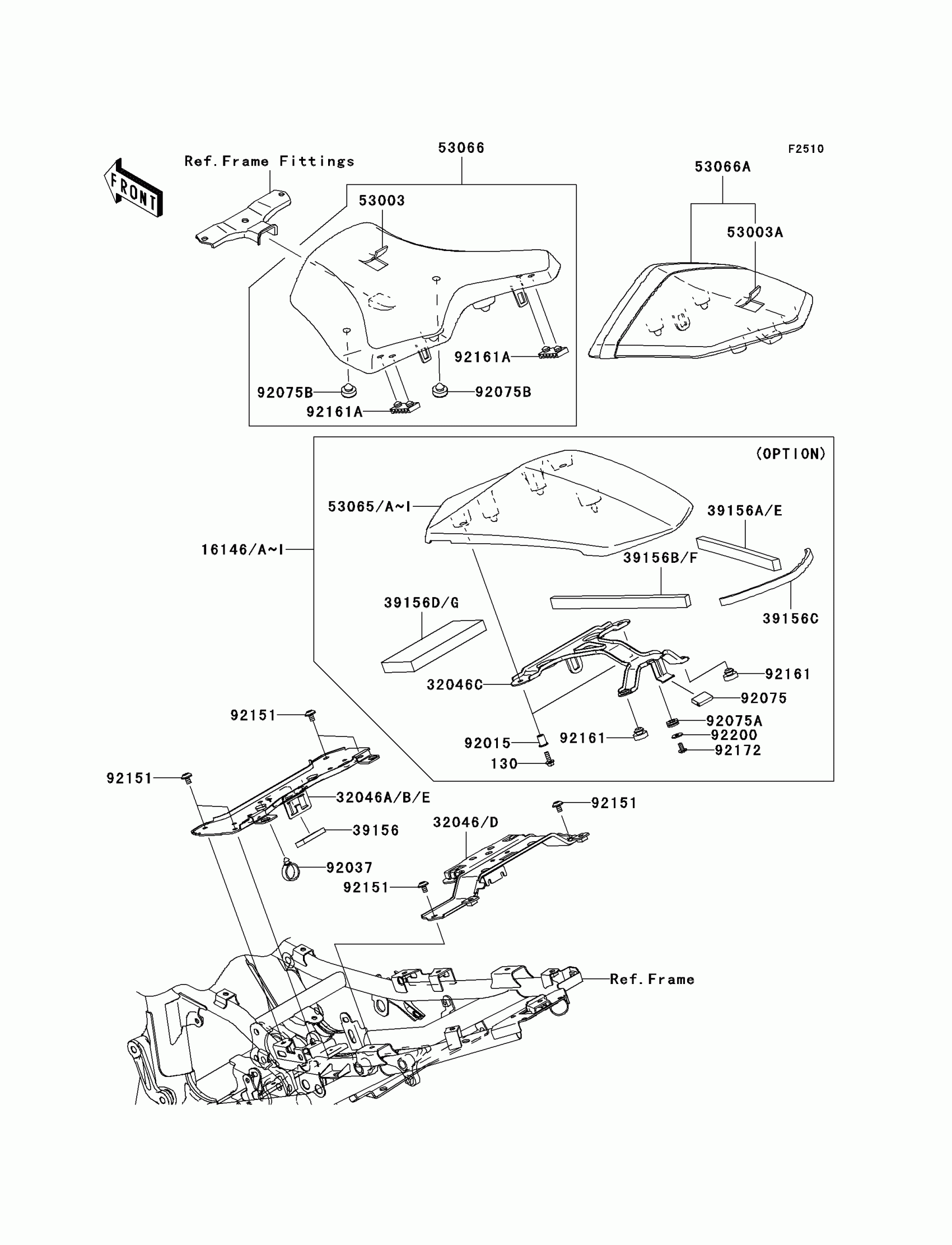

Kawasaki Z750 (European) Seat Diagram
#
Description
Price
16146F
COVER-ASSY,SINGLE SEAT,ORANGE
16146-0075-28G
$219.03
16146G
COVER-ASSY,SINGLE SEAT,WHITE
16146-0075-25Y
$210.49
16146H
COVER-ASSY,SINGLE SEAT,M.S.BLK
16146-0075-660
$210.49
32046C
BRACKET-SEAT
32046-0120
$49.95
32046D
BRACKET-SEAT,RR,BLACK
32046-0124-18R
$49.95
32046E
BRACKET-SEAT,FR,BLACK
32046-0125-18R
$59.51
39156
PAD
39156-0320
$3.35
39156C
PAD,SEAT COVER,RR
39156-0417
$4.09
39156E
PAD,SEAT COVER,RH
39156-0422
$4.09
39156F
PAD,SEAT COVER,LH
39156-0423
$4.09
39156G
PAD,SEAT COVER,FR
39156-0424
$8.18
130
BOLT-FLANGED,5X14
130BA0514
$2.06
53003
LEATHER,FRONT SEAT,BLACK
53003-0095-MA
$146.36
53003A
LEATHER,REAR SEAT,BLACK
53003-0096-MA
$146.36
53065F
COVER SEAT,P.S.WHITE
53065-0015-25Y
$212.03
53065G
COVER SEAT,C.S.ORANGE
53065-0015-28G
$222.23
53065H
COVER SEAT,M.S.BLACK
53065-0015-660
$212.03
53066
SEAT-ASSY,FR,BLACK
53066-0138-MA
$323.79
53066A
SEAT,RR,LEATHER BLK+BAND BLK
53066-0139-12Y
$234.92
92015
NUT,WELL,5MM
92015-1757
$7.29
92037
CLAMP,HOSE
92037-1827
$7.45
92075
DAMPER
92075-1446
$4.69
92075A
DAMPER
92075-161
$4.69
92075B
DAMPER,10X20X8
92075-1927
$4.39
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92161
DAMPER
92161-0046
$9.43
92161A
DAMPER,SEAT
92161-0149
Unavailable
92172
SCREW,TAPPING,5X10
92172-1061
Unavailable
92200
WASHER
92200-0288
$1.34
