Description

Price

120

BOLT-SOCKET,6X16

120CA0616

$2.49

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11055

BRACKET,RESERVOIR TANK,RR

11055-0568

$23.53

13159

CONNECTOR

13159-1065

$7.26

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0083

$456.93

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0342

$36.31

43095B

HOSE-BRAKE,RR

43095-0539

$79.34

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92009

SCREW,6X10

92009-1661

$4.31

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,SOCKET,6X14

92153-1361

$2.61

92153C

BOLT,SOCKET,8X30

92153-1624

$3.90

92170

CLAMP,HOSE

92170-1091

$5.00

92171A

CLAMP,RESERVOIR TANK

92171-0776

$6.03

92171B

CLAMP,BRAKE HOSE

92171-1936

$34.75

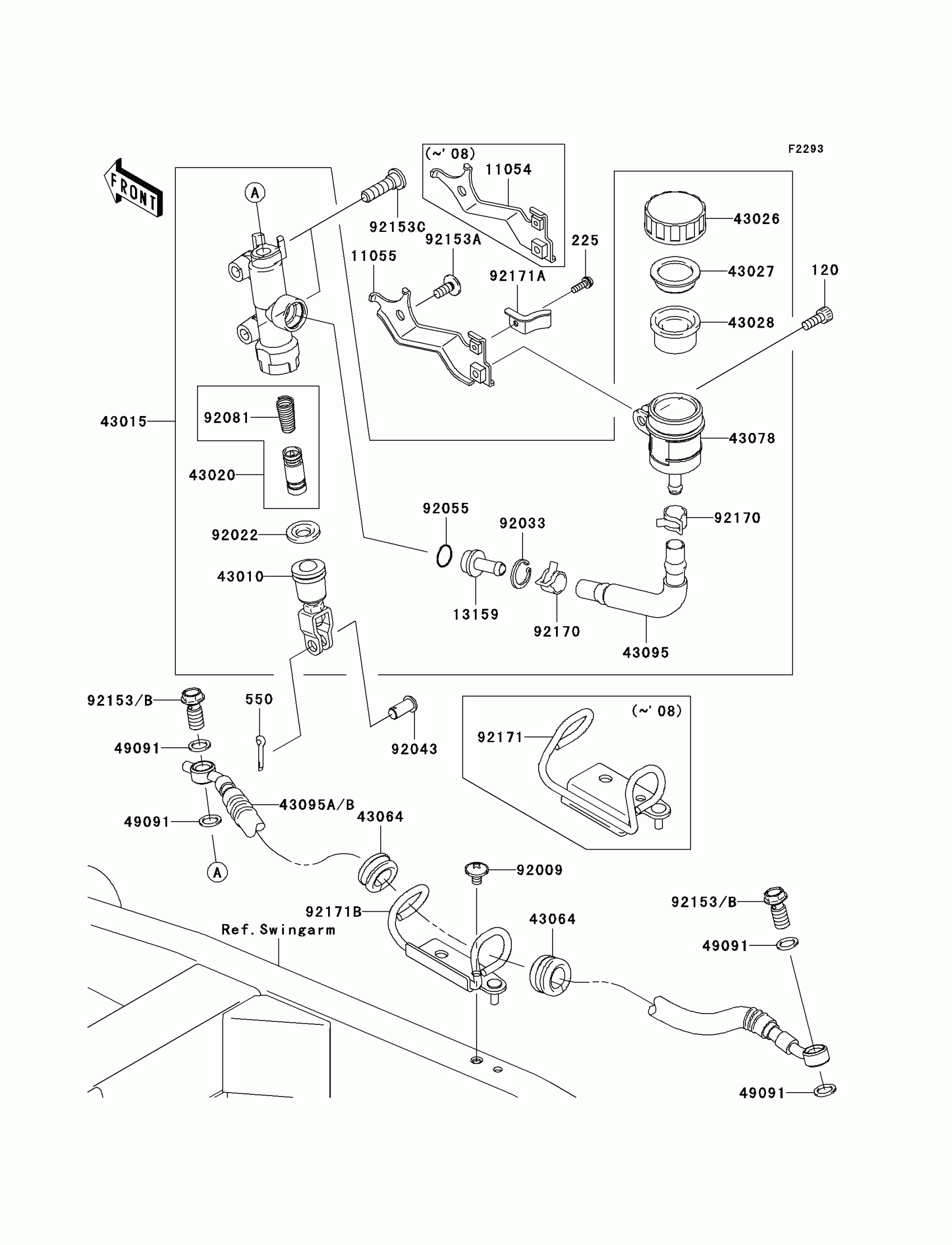

Kawasaki Z750 (European) Rear Master Cylinder Diagram
