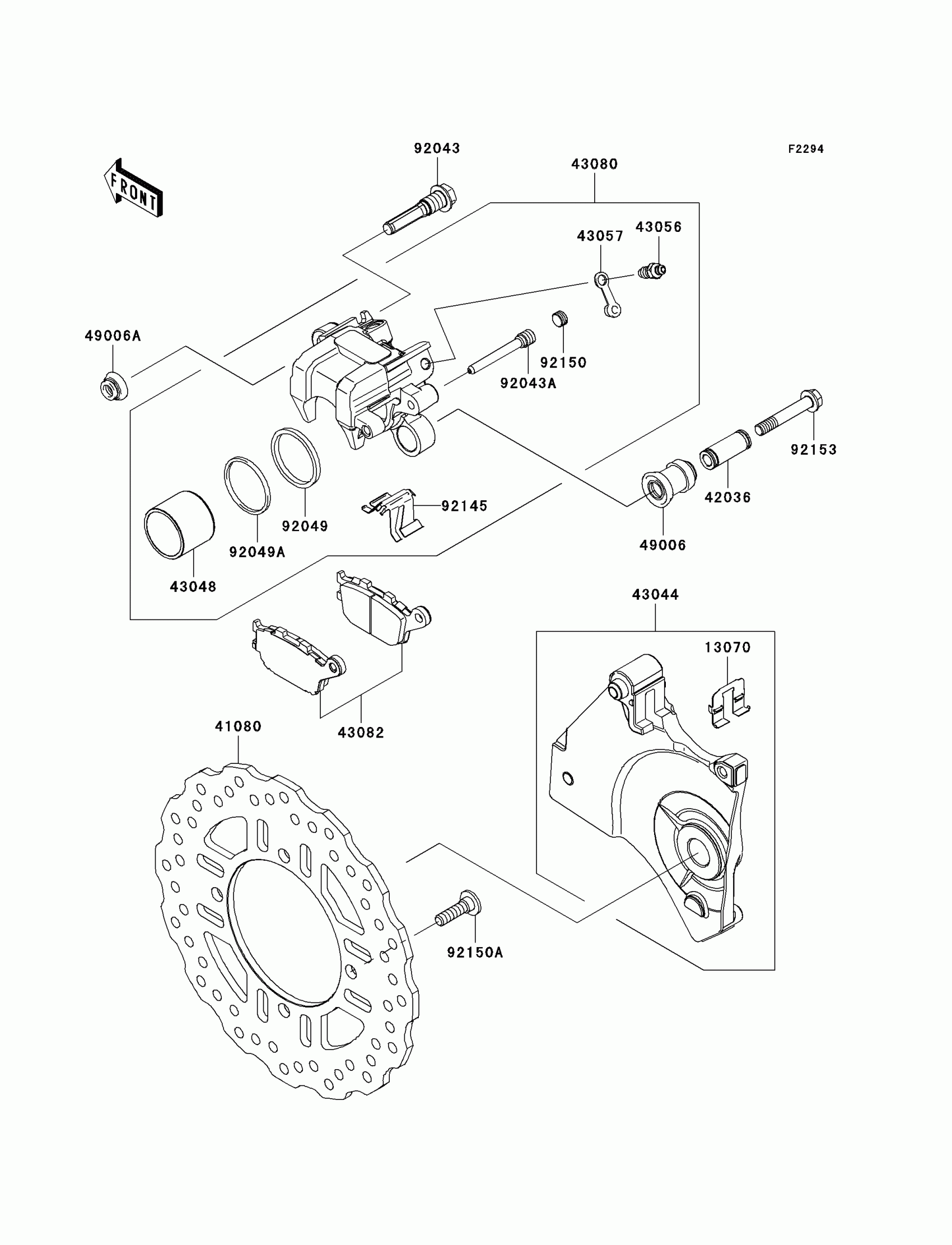

Kawasaki Z750 (European) Rear Brake Diagram

Description

Price

13070

GUIDE,BRAKE PAD

13070-0076

$11.82

41080

DISC,RR

41080-0089

$334.16

42036

SLEEVE

42036-0050

$7.75

43044

HOLDER-COMP-CALIPER,RR

43044-0014

$170.58

43048

PISTON-CALIPER

43048-0008

$30.46

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

$341.13

43082

PAD-ASSY-BRAKE

43082-0073

$76.48

49006

BOOT

49006-0058

$13.48

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

92043-0137

$13.60

92043A

PIN,HANGER

92043-1520

$7.98

92049

SEAL-OIL

92049-1449

$5.00

92049A

SEAL-OIL

92049-1450

$4.31

92145

SPRING,PAD

92145-0493

$7.69

92150

BOLT,PLUG

92150-1692

$7.84

92150A

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED

92153-1826

$10.30
