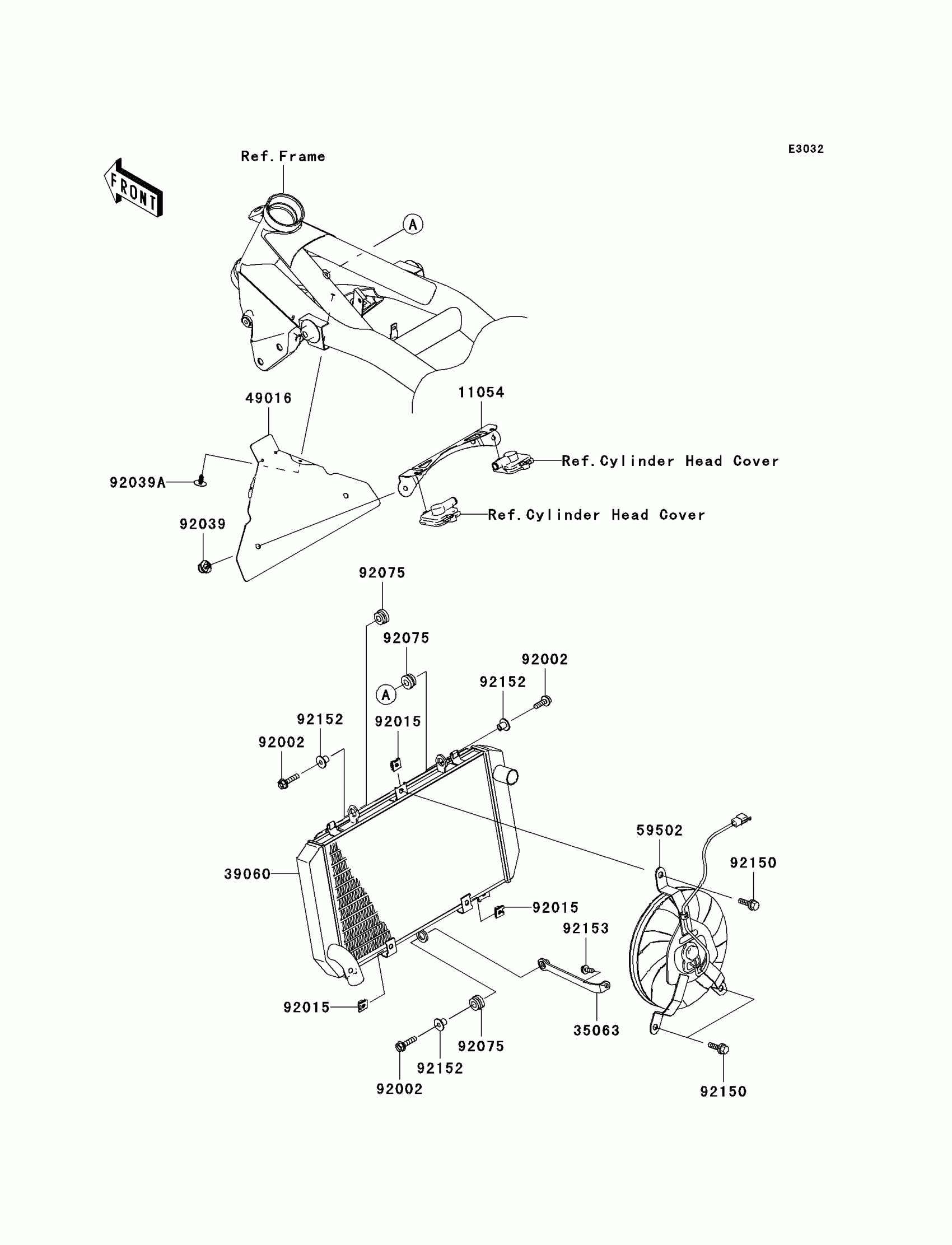

Kawasaki Z750 (European) Radiator Diagram

Description

Price

11054

BRACKET

11054-0646

$19.83

35063

STAY

35063-0321

$21.14

39060

RADIATOR

39060-0034

$844.19

49016

COVER-SEAL,HOT WIND

49016-0032

$28.80

59502

FAN-ASSY

59502-0025

Unavailable

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92015

NUT

92015-1487

$3.64

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0027

$3.51

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92152

COLLAR

92152-1074

$4.67

92153

BOLT-FLANGED,6X16

92153-1584

Unavailable
