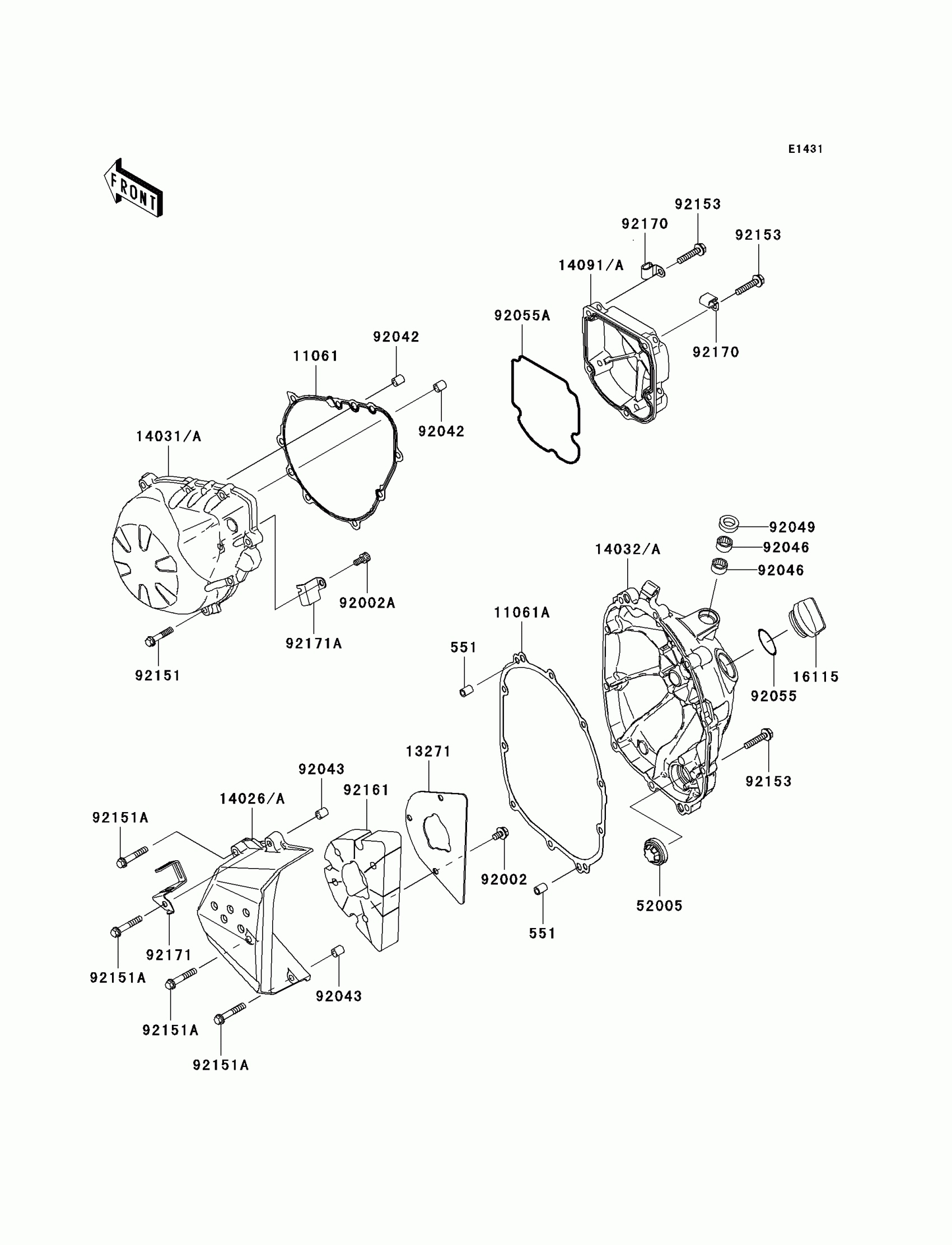

Kawasaki Z750 (European) Engine Cover(s) Diagram

Description

Price

551

PIN-DOWEL,8X14

551A0814

$0.93

11061

GASKET,GENERATOR COVER

11061-0294

$42.33

11061A

GASKET,CLUTCH COVER

11061-1166

$35.11

13271

PLATE

13271-1997

$14.75

14026A

COVER-CHAIN

14026-0060

$262.75

14031A

COVER-GENERATOR

14031-0092

Unavailable

14032A

COVER-CLUTCH

14032-0113

$289.88

14091A

COVER,PULSE

14091-0937

$51.65

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE

52005-1120

$18.41

92002

BOLT,6X10

92002-1449

$3.68

92002A

BOLT,SOCKET,6X12

92002-1796

$3.57

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$3.19

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,PULSE COVER

92055-1570

$11.34

92151

BOLT,6X30

92151-1134

$1.57

92151A

BOLT,6X35

92151-1135

$3.19

92153

BOLT,FLANGED,6X30

92153-1574

$1.57

92161

DAMPER

92161-0492

$37.69

92170

CLAMP

92170-1577

$2.85

92171

CLAMP

92171-0067

$15.49

92171A

CLAMP

92171-0708

$3.66
