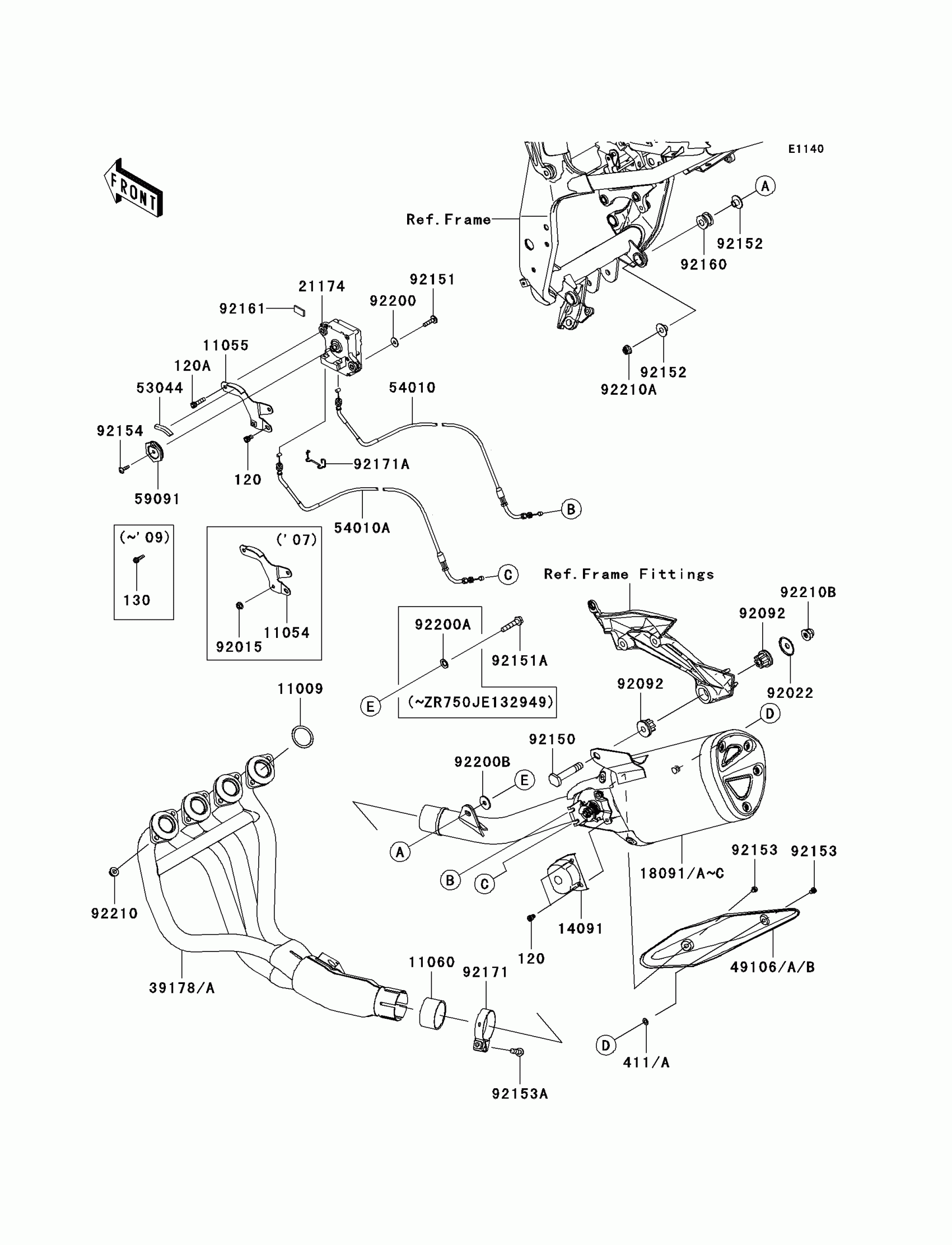

Kawasaki Z750 (European) Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11055

BRACKET,MOTOR

11055-0341

$14.56

11060

GASKET,EXHAUST PIPE HOLDER

11060-1330

$25.39

14091

COVER,PULLEY

14091-0712

$41.69

18091C

BODY-COMP-MUFFLER

18091-0660

Unavailable

21174

MOTOR-ELECTRIC

21174-0003

$337.67

39178A

MANIFOLD-COMP-EXHAUST

39178-0132

$1,347.03

49106B

COVER-MUFFLER

49106-0102

$146.71

53044

TRIM,L=40

53044-0012

$2.97

54010

CABLE,OPEN,WHITE NUT

54010-0083

$86.18

54010A

CABLE,CLOSE,BLACK NUT

54010-0084

$86.18

59091

PULLEY

59091-0007

$22.29

92022

WASHER

92022-289

$16.33

92092

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92150

BOLT,10X55

92150-1792

$8.66

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92151A

BOLT,FLANGED,8X40

92151-2130

$1.80

92152

COLLAR

92152-0188

$3.73

92153

BOLT,6X8

92153-0578

$2.55

92153A

BOLT,8X45

92153-0702

$3.44

92154

BOLT,TORX,5X18

92154-0217

$3.71

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92161

DAMPER

92161-1170

$4.04

92171

CLAMP

92171-0133

$20.01

92171A

CLAMP

92171-0292

$10.11

92200

WASHER

92200-0078

$2.12

92200B

WASHER,8X26X2.3

92200-3780

$3.63

120

BOLT-SOCKET,6X10

120CB0610

$2.49

120A

BOLT-SOCKET,6X25

120CB0625

$2.62

411A

WASHER-PLAIN,6MM

411S0600

$2.06

92210

NUT,8MM

92210-0121

$2.26

92210A

NUT,FLANGED,LOCK,8MM

92210-0159

$11.95

92210B

NUT,CAP,10MM

92210-1121

$4.22
