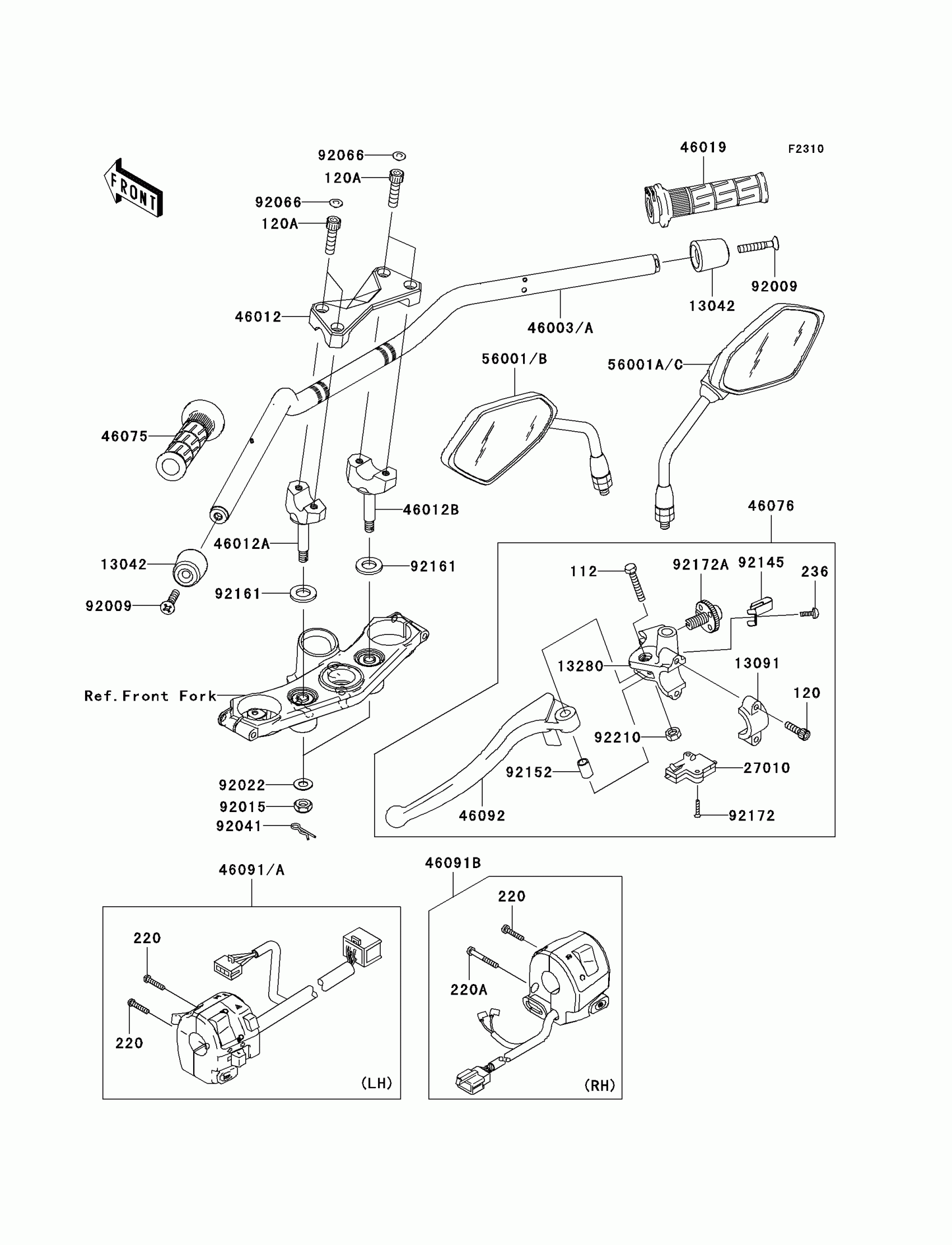

Kawasaki Z750 (European) Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X30

112BB0630

$1.86

120

BOLT-SOCKET,6X20

120CB0620

$1.22

120A

BOLT-SOCKET,8X30

120CB0830

$4.69

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220A

SCREW-PAN-CROS,5X40

220AB0540

$2.06

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

$1.52

13042

WEIGHT,HANDLE

13042-1005

$32.86

13091

HOLDER,CLUTCH LEVER

13091-1624

$35.87

13280

HOLDER,CLUTCH LEVER

13280-0017

$51.43

27010

SWITCH,CLUTCH,BLACK

27010-1094

$28.59

46003A

HANDLE,M.F.GRAYSTONE

46003-0150-4P

Unavailable

46012

HOLDER-HANDLE,UPP

46012-1338

$55.92

46012A

HOLDER-HANDLE,LWR,LH

46012-1339

$65.65

46012B

HOLDER-HANDLE,LWR,RH

46012-1340

$65.65

46019

GRIP-ASSY,THROTTLE

46019-0001

$41.80

46075

GRIP,HANDLE,LH

46075-1144

$20.96

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0005

$108.97

46091A

HOUSING-ASSY-CONTROL,LH

46091-0196

Unavailable

46091B

HOUSING-ASSY-CONTROL,RH

46091-1891

$154.08

46092

LEVER-GRIP,CLUTCH

46092-0003

$21.68

56001B

MIRROR-ASSY,LH

56001-0117

$71.59

56001C

MIRROR-ASSY,RH

56001-0118

$71.59

92009

SCREW,8X45

92009-1257

$4.69

92015

NUT,LOCK,10MM

92015-1962

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92041

COTTER,8MM

92041-1060

$3.57

92066

PLUG

92066-1216

$4.65

92145

SPRING

92145-1286

$5.95

92152

COLLAR

92152-0103

$19.00

92161

DAMPER

92161-0037

$1.86

92172

SCREW,3X16

92172-0183

$2.15

92172A

SCREW,ADJUST NUT

92172-1060

$39.14

92210

NUT,LOCK,6MM

92210-0006

$2.46
