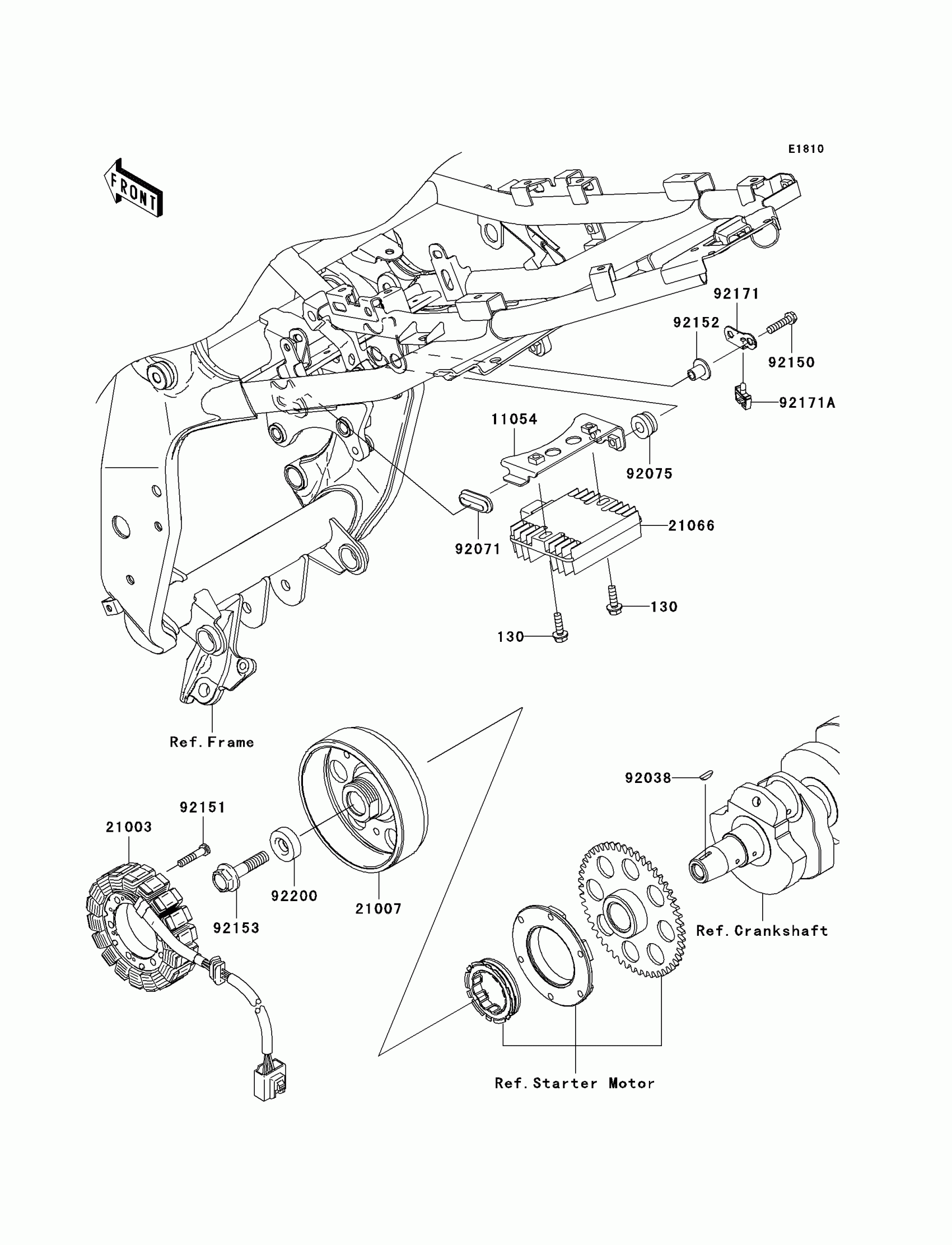

Kawasaki Z750 (European) Generator Diagram

Description

Price

130

BOLT-FLANGED,6X20

130BB0620

$0.47

11054

BRACKET,REGULATOR

11054-0875

$21.73

21003

STATOR

21003-0046

Unavailable

21007

ROTOR

21007-0021

$688.47

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

92038

KEY

92038-1060

$7.63

92071

GROMMET

92071-1187

$3.78

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92151

BOLT,6X30

92151-1626

$1.95

92152

COLLAR

92152-0667

$5.63

92153

BOLT,12X40

92153-1855

$30.42

92171

CLAMP

92171-0930

$9.36

92171A

CLAMP

92171-0931

$4.53

92200

WASHER,12X34X9

92200-0369

$11.42
