2010 Kawasaki Z750 (European) Battery Case Diagram

← All diagrams

Find the part on the Battery Case diagram for your 2010 Kawasaki Z750 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

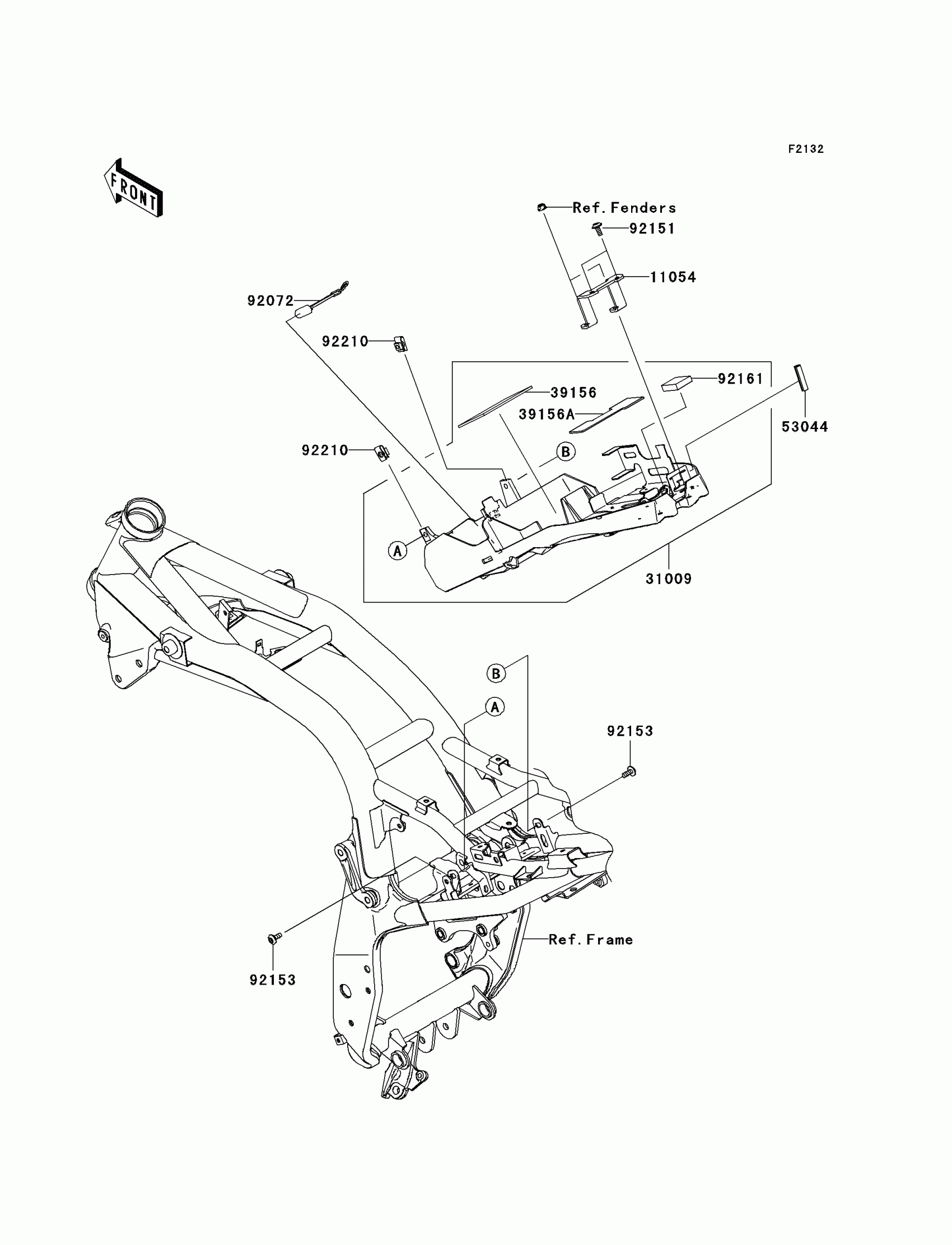

2010 Kawasaki Z750 (European) Battery Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,BATTERY CASE,RR

11054-0751

1
Out of stock

31009

CASE-COMP-BATTERY

31009-0004

1
Out of stock

39156

PAD

39156-0288

1
Out of stock

39156A

PAD

39156-0317

1
Out of stock

53044

TRIM,L=40

53044-0012

1
Out of stock

92072

BAND,U LOCK

92072-0090

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92153

BOLT,SOCKET,6X16

92153-1526

1
Out of stock

92161

DAMPER

92161-0281

1
Out of stock

92210

NUT

92210-0318

1
Out of stock
