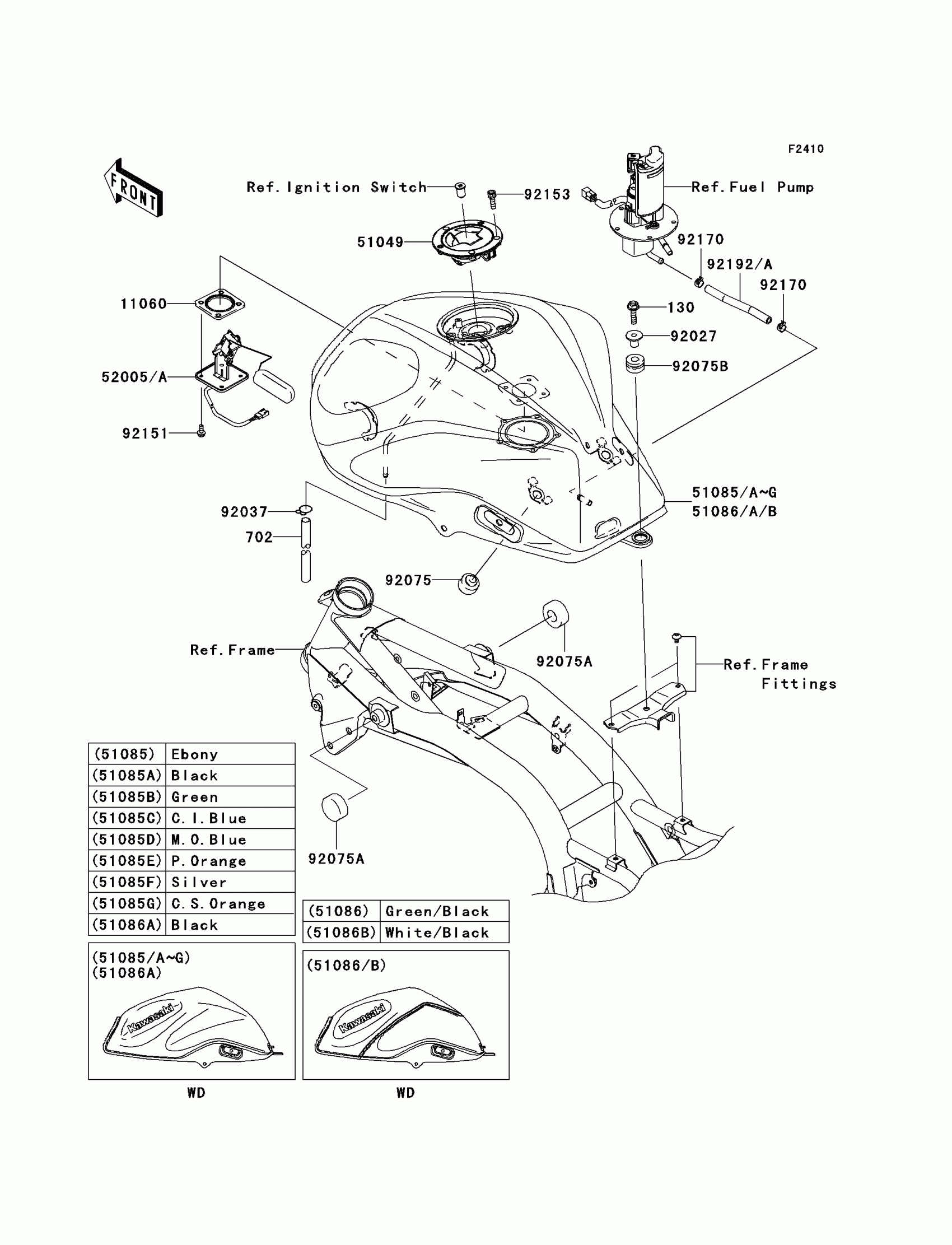

Kawasaki Z750 (European) Fuel Tank Diagram

Description

Price

130

BOLT-FLANGED,8X30

130BA0830

$1.98

702

TUBE-RUBBER,6X9X750

702A06750

$21.97

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

51049

CAP-TANK,FUEL

51049-0039

$136.23

51085G

TANK-COMP-FUEL,C.S.ORANGE

51085-5320-28G

$1,629.95

51086A

TANK-COMP-FUEL,M.S.BLACK

51086-5283-660

$1,629.95

51086B

TANK-COMP-FUEL,WHITE/BLACK

51086-5286-28F

$1,810.97

52005A

GAUGE,FUEL

52005-0074

$212.38

92027

COLLAR,L=19.3

92027-1780

$6.57

92037

CLAMP,TUBE

92037-010

$3.92

92075

DAMPER

92075-015

$5.00

92075A

DAMPER,FUEL TANK

92075-101

$6.22

92075B

DAMPER

92075-1736

$6.57

92151

BOLT,5X12

92151-1599

$1.91

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92170

CLAMP

92170-1492

$5.00

92192A

TUBE,FUEL

92192-0593

$32.14
