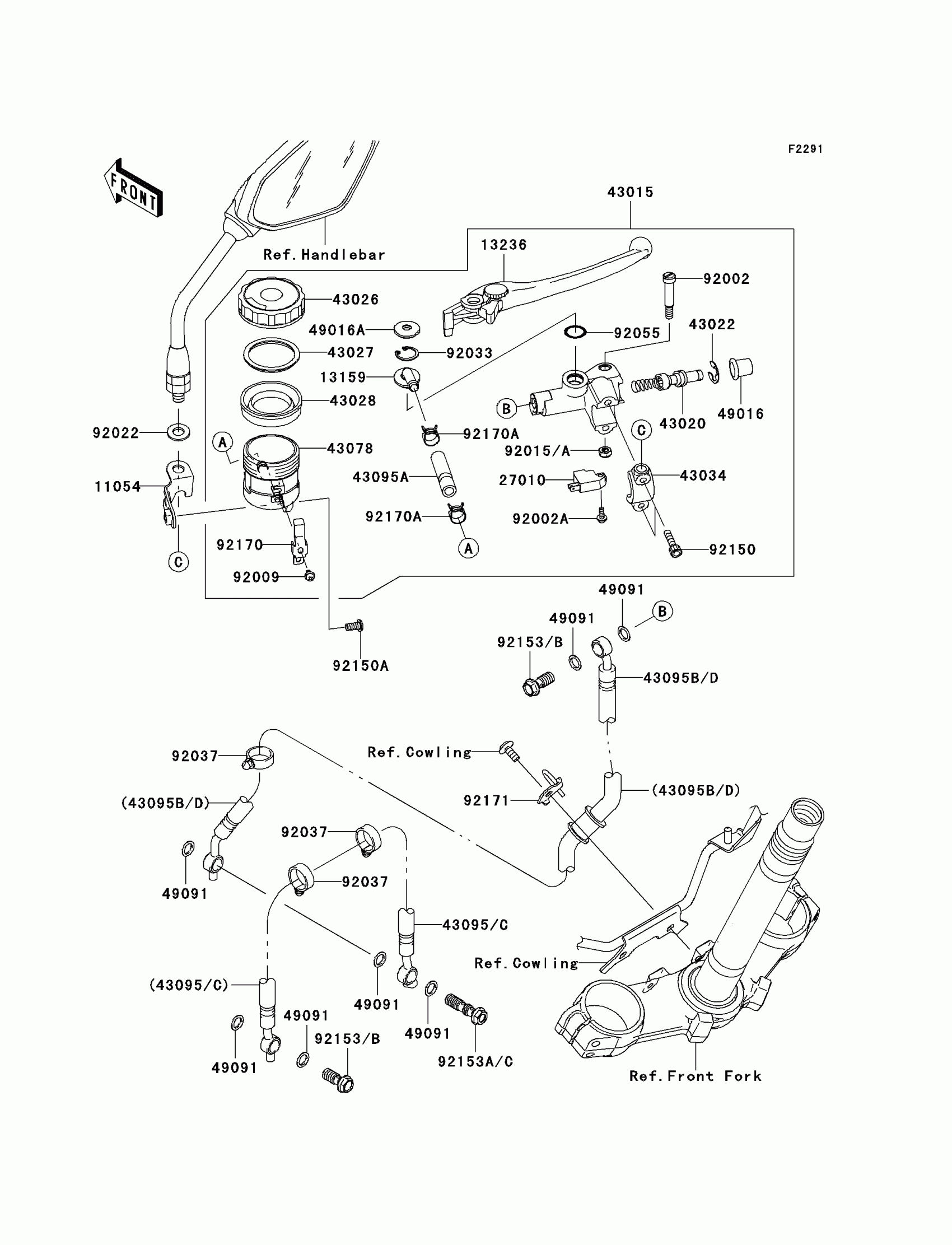

Kawasaki Z750 (European) Front Master Cylinder Diagram

#

Description
Price

11054

BRACKET,RESERVOIR TANK,FR

11054-1909

$21.73

13159

CONNECTOR

13159-1061

$9.85

13236

LEVER-COMP,FRONT BRAKE

13236-0140

$61.03

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0105

$457.19

43020

PISTON-COMP-BRAKE

43020-0008

$67.05

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1163

$22.03

43078

RESERVOIR

43078-1099

$28.99

43095A

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

$9.91

43095C

HOSE-BRAKE,FR,485MM

43095-0537

$83.04

43095D

HOSE-BRAKE,FR,776MM

43095-0538

$93.47

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49016A

COVER-SEAL

49016-1147

$4.72

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92009

SCREW

92009-1570

$2.49

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,HOSE

92037-1827

$5.69

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT

92150-1328

$4.59

92150A

BOLT,SOCKET,6X14

92150-1836

$3.57

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,OIL,L=37

92153-0628

$9.00

92170

CLAMP

92170-1090

$13.69

92170A

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP,BRAKE HOSE

92171-1667

$9.36
