Description

Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

11065

CAP,FORK BOLT,LH,A.BLACK

11065-0188-499

$128.68

11065A

CAP,FORK BOLT,RH,A.BLACK

11065-0189-499

$128.68

44008A

PIPE-FORK OUTER,A.BLACK

44008-0030-499

$419.60

44013A

PIPE-FORK INNER,LH,F.BLACK

44013-0084-21

$441.79

44013C

PIPE-FORK INNER,RH,F.BLACK

44013-0085-21

$441.79

44023

CYLINDER-SET-FORK,LH

44023-0053

$494.06

44023A

CYLINDER-SET-FORK,RH

44023-0054

$494.06

44026

SPRING-FRONT FORK

44026-0102

$96.99

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0066-11E

$608.10

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0057-11E

$337.84

44071

DAMPER-ASSY,FORK,LH,BLACK

44071-5044

$878.26

44071A

DAMPER-ASSY,FORK,RH,BLACK

44071-5045

$878.26

92015

NUT

92015-1795

$5.52

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92026

SPACER,FORK

92026-0045

$14.02

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL

92049-0073

$22.70

92055

RING-O,FORK,AIR TUBE

92055-1333

$6.00

92066

PLUG

92066-0032

$11.66

92093

SEAL,FORK OUTER TUBE

92093-1472

$23.76

92150

BOLT,12X22

92150-1398

$9.21

92153

BOLT

92153-0425

$8.91

92153A

BOLT,FLANGED,8X40

92153-0484

$3.29

92153B

BOLT,SOCKET,8X40

92153-0506

$7.57

92200

WASHER

92200-0085

$7.63

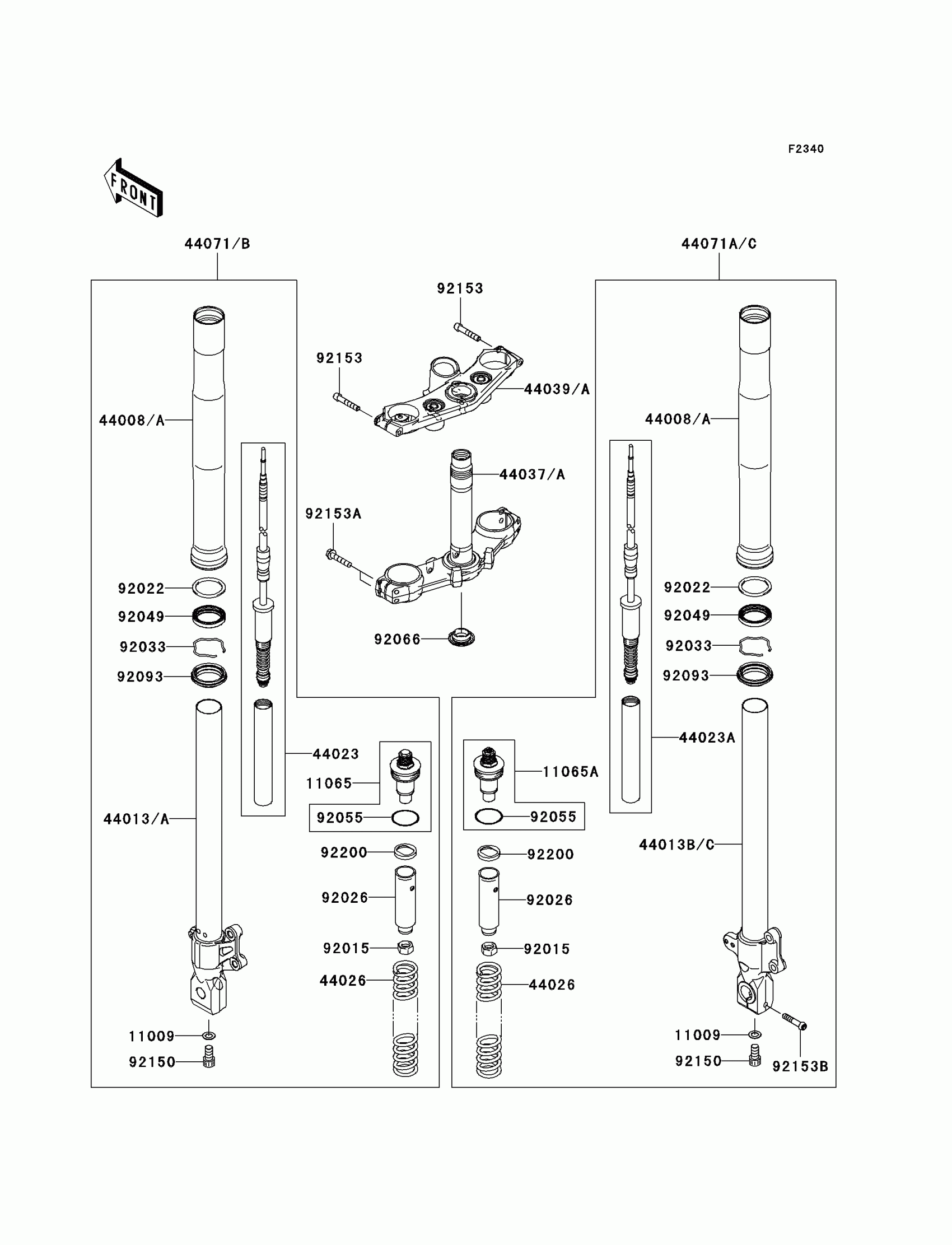

Kawasaki Z750 (European) Front Fork Diagram
