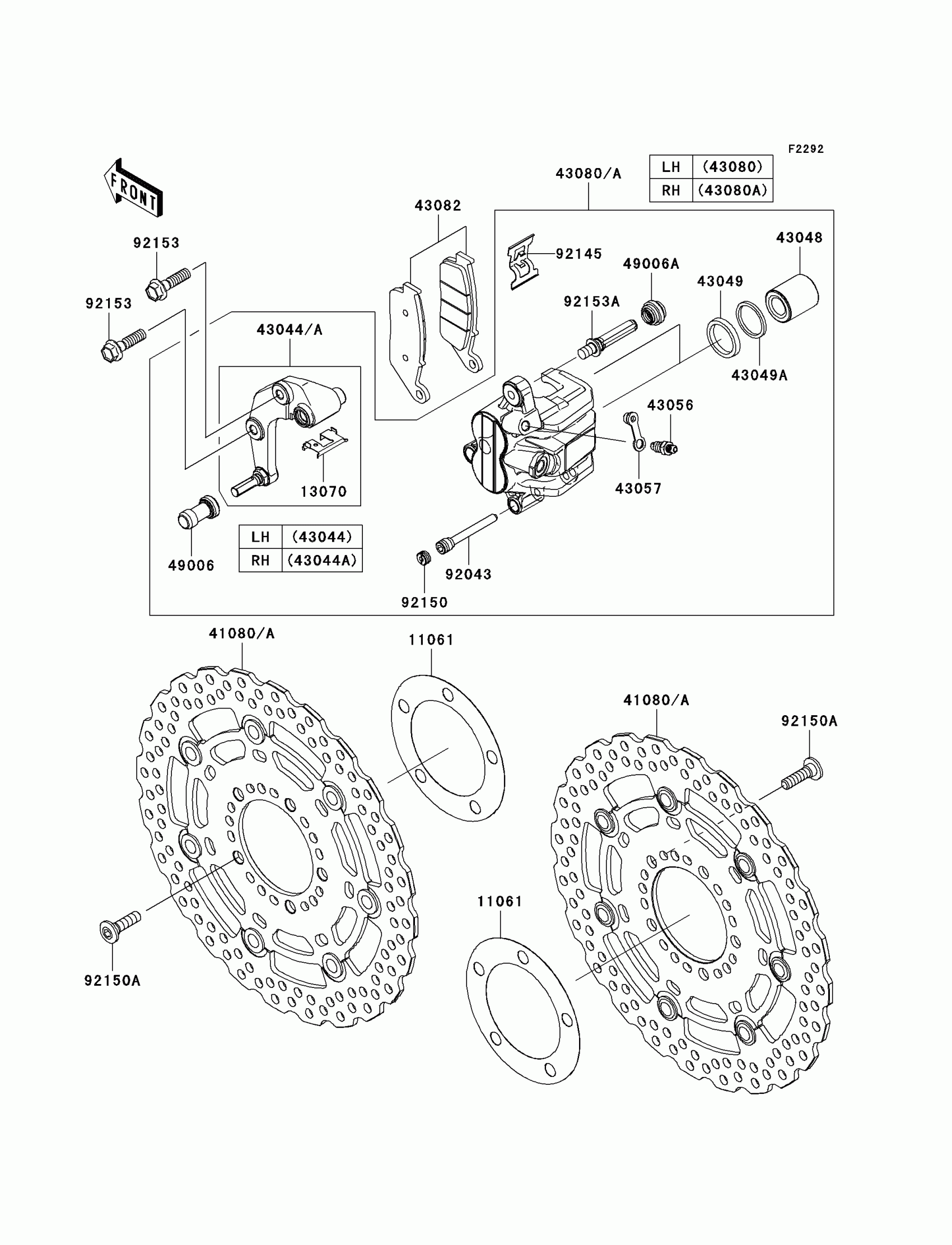

Kawasaki Z750 (European) Front Brake Diagram

#

Description
Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

13070

GUIDE,BRAKE PAD

13070-0077

$11.82

41080A

DISC,FR,HOUSING BLK+DISC SIL

41080-0173-11I

$369.52

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0024

$120.63

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-0025

$120.63

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0054-DJ

$383.75

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0055-DJ

$383.75

43082

PAD-ASSY-BRAKE

43082-0079

Unavailable

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,HANGER

92043-1520

$7.98

92145

SPRING,PAD

92145-0524

$11.82

92150

BOLT,PLUG

92150-1692

$7.84

92150A

BOLT,SOCKET,8X30

92150-1771

$4.69

92153

BOLT,FLANGED,8X30

92153-1089

$2.41

92153A

BOLT

92153-1872

$13.60
