Description

Price

120

BOLT-SOCKET,5X16

120CB0516

$0.70

11054B

BRACKET,SHROUD,LH

11054-0942

$59.51

11054C

BRACKET,SHROUD,RH

11054-0943

$59.51

11054D

BRACKET,SHROUD,LWR,LH

11054-0944

Unavailable

11054E

BRACKET,SHROUD,LWR,RH

11054-1861

Unavailable

11055

BRACKET,SHROUD,UPP,LH

11055-0478

$52.51

11055A

BRACKET,SHROUD,UPP,RH

11055-0479

$52.51

14091

COVER,SHROUD,LH

14091-0687

$52.40

14091A

COVER,SHROUD,RH

14091-0688

$52.40

49125F

SHROUD,LH,P.S.WHITE

49125-0028-25Y

$135.78

49125G

SHROUD,LH,C.S.ORANGE

49125-0028-28G

$142.26

49125H

SHROUD,LH,M.S.BLACK

49125-0028-660

$135.78

49125P

SHROUD,RH,P.S.WHITE

49125-0029-25Y

$135.78

49125Q

SHROUD,RH,C.S.ORANGE

49125-0029-28G

$142.26

49125R

SHROUD,RH,M.S.BLACK

49125-0029-660

$135.78

92075

DAMPER

92075-1564

$5.48

92075A

DAMPER,6X10X15

92075-1808

$1.39

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92151A

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6.5X10X5.6

92152-0445

$4.92

92170

CLAMP

92170-1804

$5.29

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92210

NUT,5MM

92210-1266

$7.38

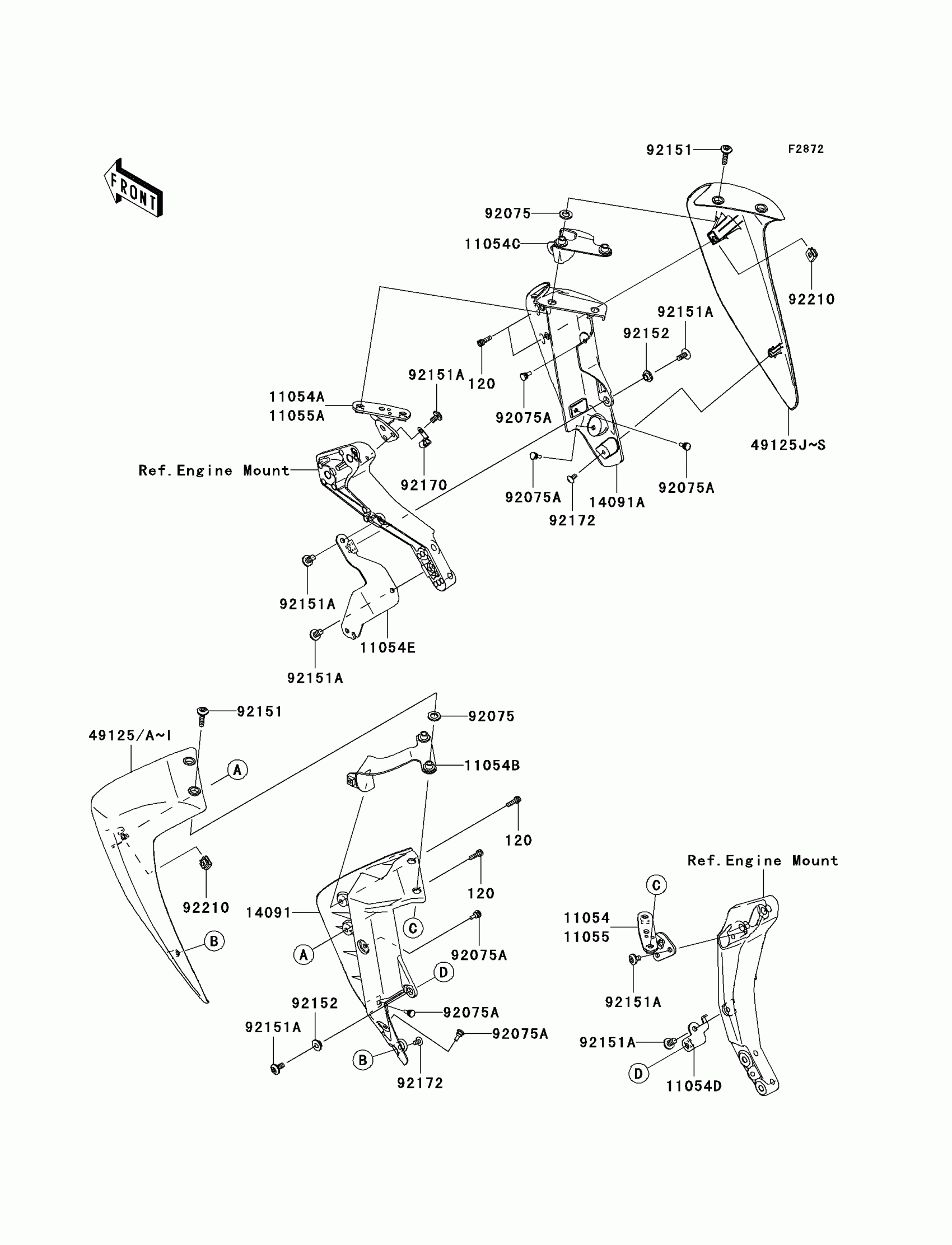

Kawasaki Z750 (European) Cowling Lowers Diagram

BOLT-SOCKET,5X16

BRACKET,SHROUD,LH

BRACKET,SHROUD,RH

BRACKET,SHROUD,LWR,LH

BRACKET,SHROUD,LWR,RH

BRACKET,SHROUD,UPP,LH

BRACKET,SHROUD,UPP,RH

COVER,SHROUD,LH

COVER,SHROUD,RH

SHROUD,LH,P.S.WHITE

SHROUD,LH,C.S.ORANGE

SHROUD,LH,M.S.BLACK

SHROUD,RH,P.S.WHITE

SHROUD,RH,C.S.ORANGE

SHROUD,RH,M.S.BLACK

DAMPER

DAMPER,6X10X15

BOLT,SOCKET,6X25

BOLT,SOCKET,6X14

COLLAR,6.5X10X5.6

CLAMP

SCREW,TAPPING,5X16

NUT,5MM
