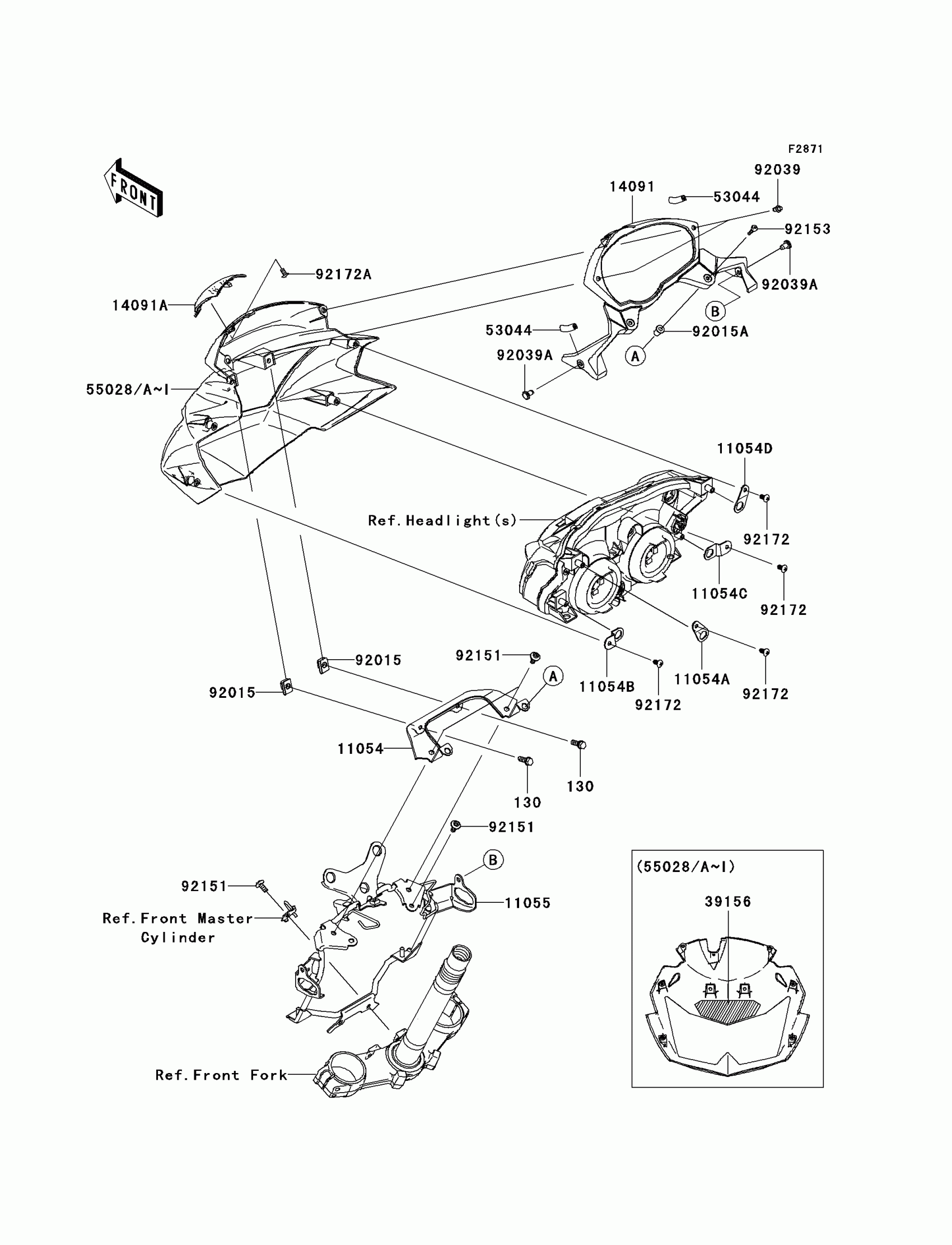

Kawasaki Z750 (European) Cowling Diagram

#

Description
Price

130

BOLT-FLANGED,6X18

130CA0618

$1.78

11054

BRACKET

11054-0936

Unavailable

11054A

BRACKET,HEAD LAMP,UPP,LH

11054-0937

$8.26

11054B

BRACKET,HEAD LAMP,LWR,LH

11054-0938

$8.26

11054C

BRACKET,HEAD LAMP,LWR,RH

11054-0939

$8.26

11054D

BRACKET,HEAD LAMP,UPP,RH

11054-1185

$8.26

11055

BRACKET,METER

11055-0076

Unavailable

14091

COVER,METER

14091-0686

Unavailable

14091A

COVER,UPP COWLING

14091-0725

$17.74

39156

PAD,UPP COWLING

39156-0338

$20.85

53044

TRIM,L=40

53044-0012

$2.97

55028F

COWLING,UPP,P.S.WHITE

55028-0147-25Y

Unavailable

55028G

COWLING,UPP,C.S.ORANGE

55028-0147-28G

$612.99

55028H

COWLING,UPP,M.S.BLACK

55028-0147-660

$585.00

92015

NUT,6MM

92015-1602

$7.34

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0023

$2.97

92039A

RIVET

92039-1286

$3.04

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,SOCKET,5X18

92153-0370

$1.94

92172

SCREW,TAPPING,5X14

92172-0006

$2.80

92172A

SCREW,TAPPING,5X10

92172-1061

Unavailable
