Description

Price

13087A

HUB-CLUTCH

13087-0048

$156.20

13088

PLATE-FRICTION

13088-1124

$18.35

13089

PLATE-CLUTCH,T=1.6

13089-0005

$13.99

13089B

PLATE-CLUTCH,T=2.0

13089-1073

Unavailable

13089C

PLATE-CLUTCH,T=1.4

13089-1126

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0070

$571.55

13102

RELEASE-COMP-CLUTCH

13102-0007

$65.89

13187

PLATE-CLUTCH OPERATING

13187-0003

$82.67

46102

ROD

46102-0102

$33.62

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER

92026-1497

$11.28

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92046

BEARING-NEEDLE,K38X43X28.8X

92046-1263

$28.68

92139

BUSHING,25X38X29.05

92139-0067

$37.06

92145

SPRING,CLUTCH RELEASE

92145-0066

$7.56

92145A

SPRING

92145-0675

$7.38

92145B

SPRING,ROD

92145-1159

$2.64

92154

BOLT,6X50

92154-0176

$4.71

92200

WASHER,11.2X18X0.5

92200-1423

$2.67

92200A

WASHER,12X18.5X0.5

92200-1487

$2.75

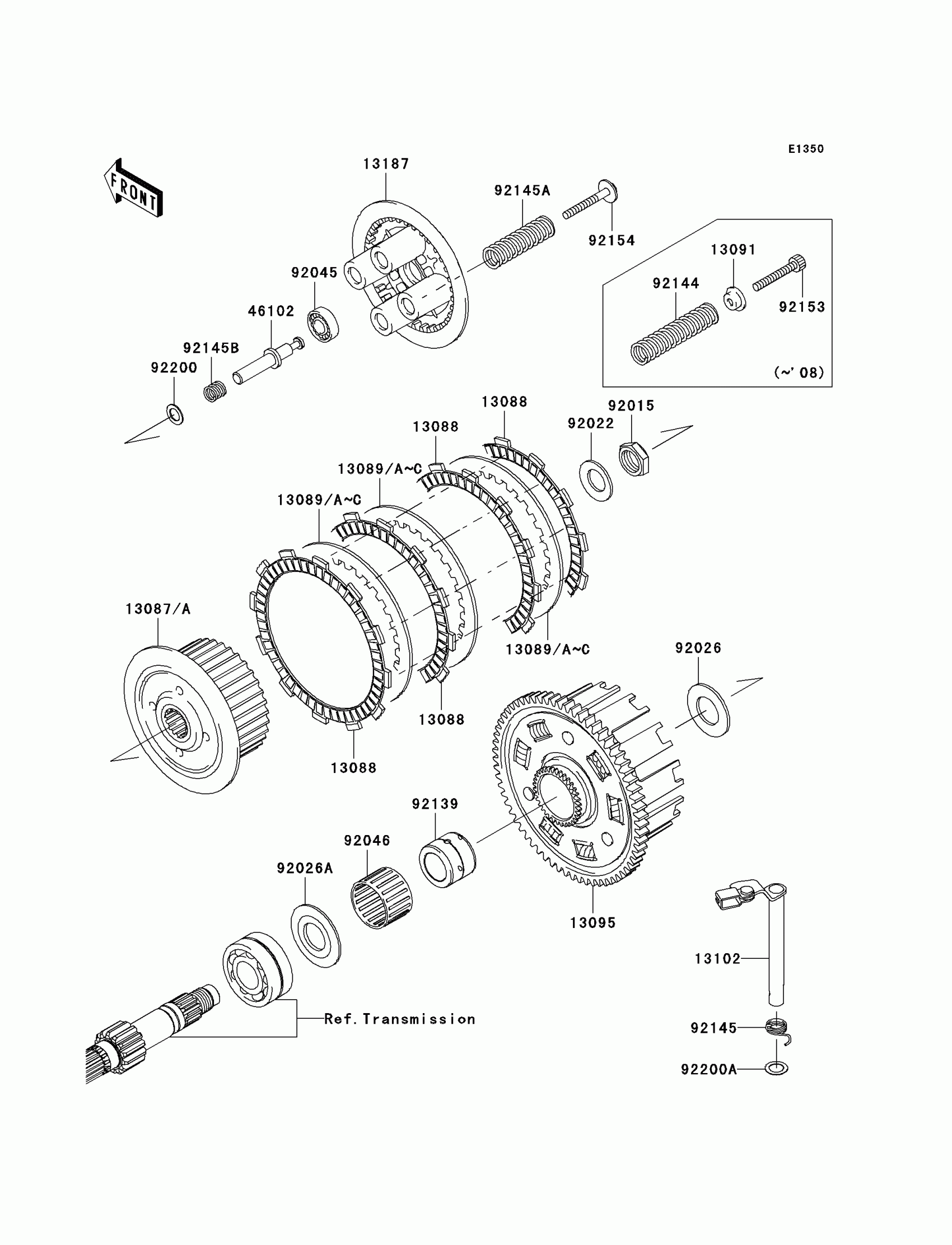

Kawasaki Z750 (European) Clutch Diagram
