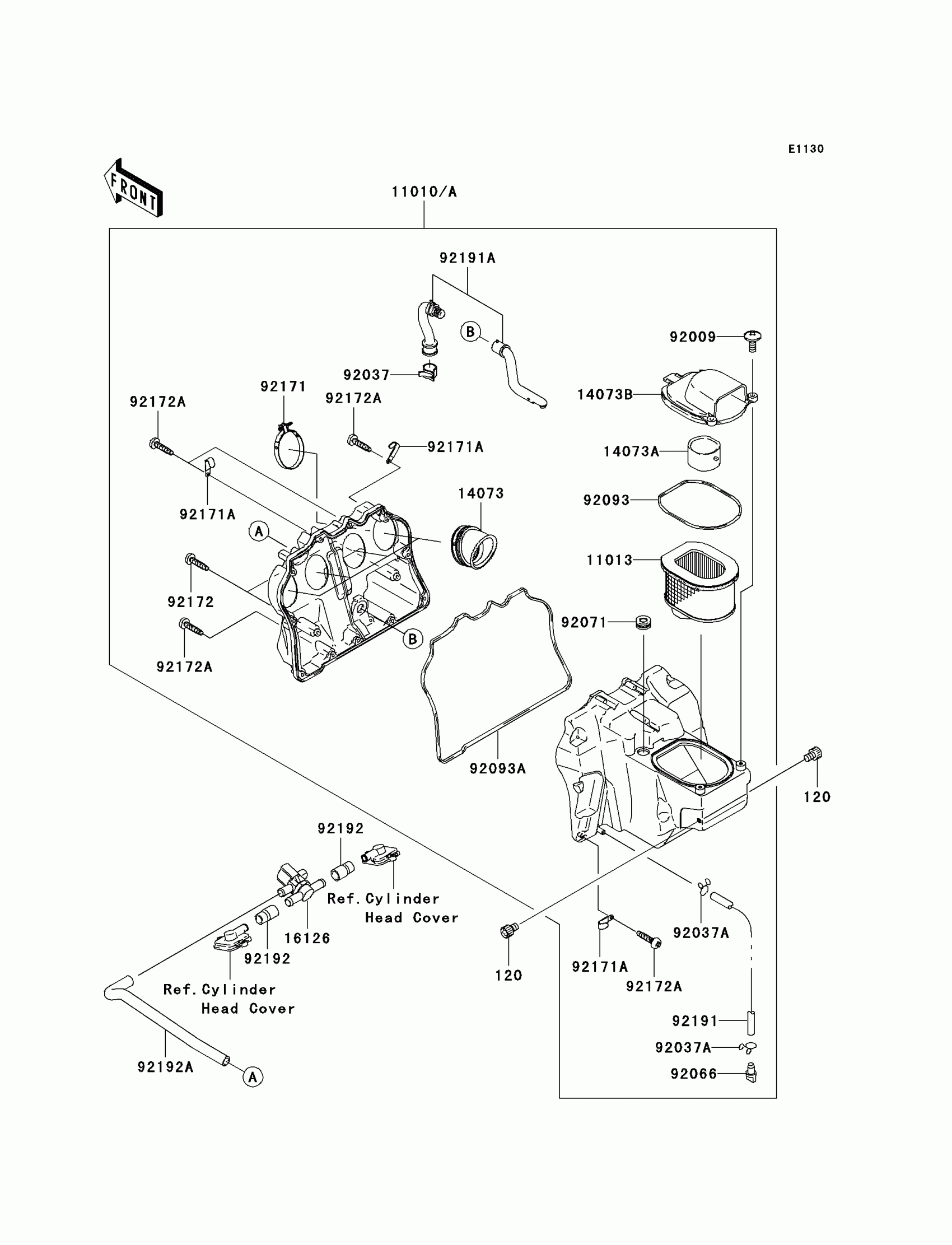

Kawasaki Z750 (European) Air Cleaner Diagram

Description

Price

120

BOLT-SOCKET,6X8

120CA0608

$3.09

11010A

FILTER-ASSY-AIR

11010-0185

$451.73

11013

ELEMENT-AIR FILTER

11013-1302

$63.85

14073

DUCT,FUNNEL

14073-0113

$34.40

14073A

DUCT,INTAKE

14073-0157

$25.24

14073B

DUCT,INTAKE TOP

14073-0164

$40.60

16126

VALVE,AIR SWITCHING

16126-1437

$185.64

92009

SCREW,6X16

92009-1621

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,TUBE

92037-147

$7.34

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET

92071-2140

$4.45

92093

SEAL

92093-0002

$8.90

92093A

SEAL

92093-0063

$21.25

92171

CLAMP,OVAL,66MM

92171-0815

$15.35

92171A

CLAMP

92171-1539

$2.80

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92172A

SCREW-PAN-CROS,5X25

92172-0056

$2.93

92191

TUBE,7X10X320

92191-0019

$11.80

92191A

TUBE

92191-1783

$43.12

92192

TUBE,HEAD-ASV

92192-0033

$3.76

92192A

TUBE,ASV-A/C

92192-0321

$30.76
