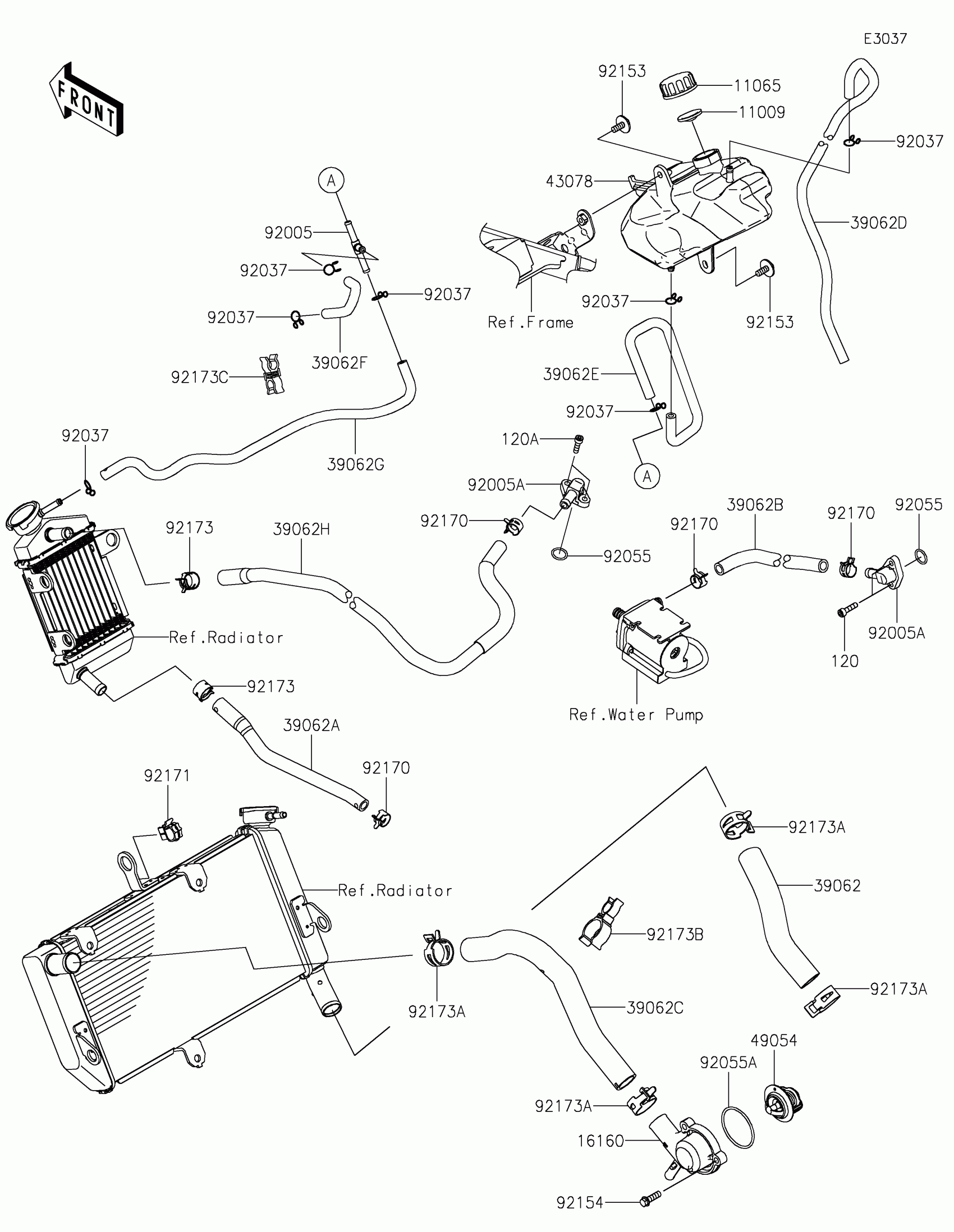

Kawasaki Z7 Hybrid Water Pipe Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11065
CAP
11065-0969
$2.02
16160
BODY,THERMOSTAT
16160-0834
$46.93
39062
HOSE-COOLING,RAD.-W/P
39062-0945
$14.03
39062A
HOSE-COOLING,RAD.-W/P
39062-0949
$12.28
39062B
HOSE-COOLING,W/P-MOTOR
39062-0950
$12.07
39062C
HOSE-COOLING,THERMOSTAT-RAD.
39062-0951
$23.44
39062D
HOSE-COOLING,OVER FLOW
39062-1944
$15.75
39062E
HOSE-COOLING,RESERVOIR-FITTING
39062-1945
$8.76
39062F
HOSE-COOLING,RADIATOR-FITTING
39062-1946
$7.49
39062G
HOSE-COOLING,RADIATOR-FITTING
39062-1947
$14.69
39062H
HOSE-COOLING,MOTOR-RAD.
39062-1973
$51.93
43078
RESERVOIR
43078-0605
$42.73
49054
THERMOSTAT
49054-0001
$30.76
92005
FITTING,T
92005-0885
$4.55
92005A
FITTING
92005-1439
$58.27
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O,13.8X1.9
92055-0065
$3.35
92055A
RING-O,46.7X2.4
92055-0992
$6.32
92153
BOLT,FLANGED-SMALL,6X16
92153-1798
$1.78
92154
BOLT,FLANGED,6X20
92154-1778
$2.26
92170
CLAMP
92170-1938
$3.74
92171
CLAMP,EDGE CLIP
92171-1722
$8.05
92173
CLAMP
92173-1552
$1.71
92173A
CLAMP
92173-1688
$3.86
92173B
CLAMP,CLIP
92173-2286
$5.31
92173C
CLAMP
92173-2663
$4.85
120
BOLT-SOCKET,5X20
120CA0520
$5.22
120A
BOLT-SOCKET,5X18
120CB0518
$0.82
