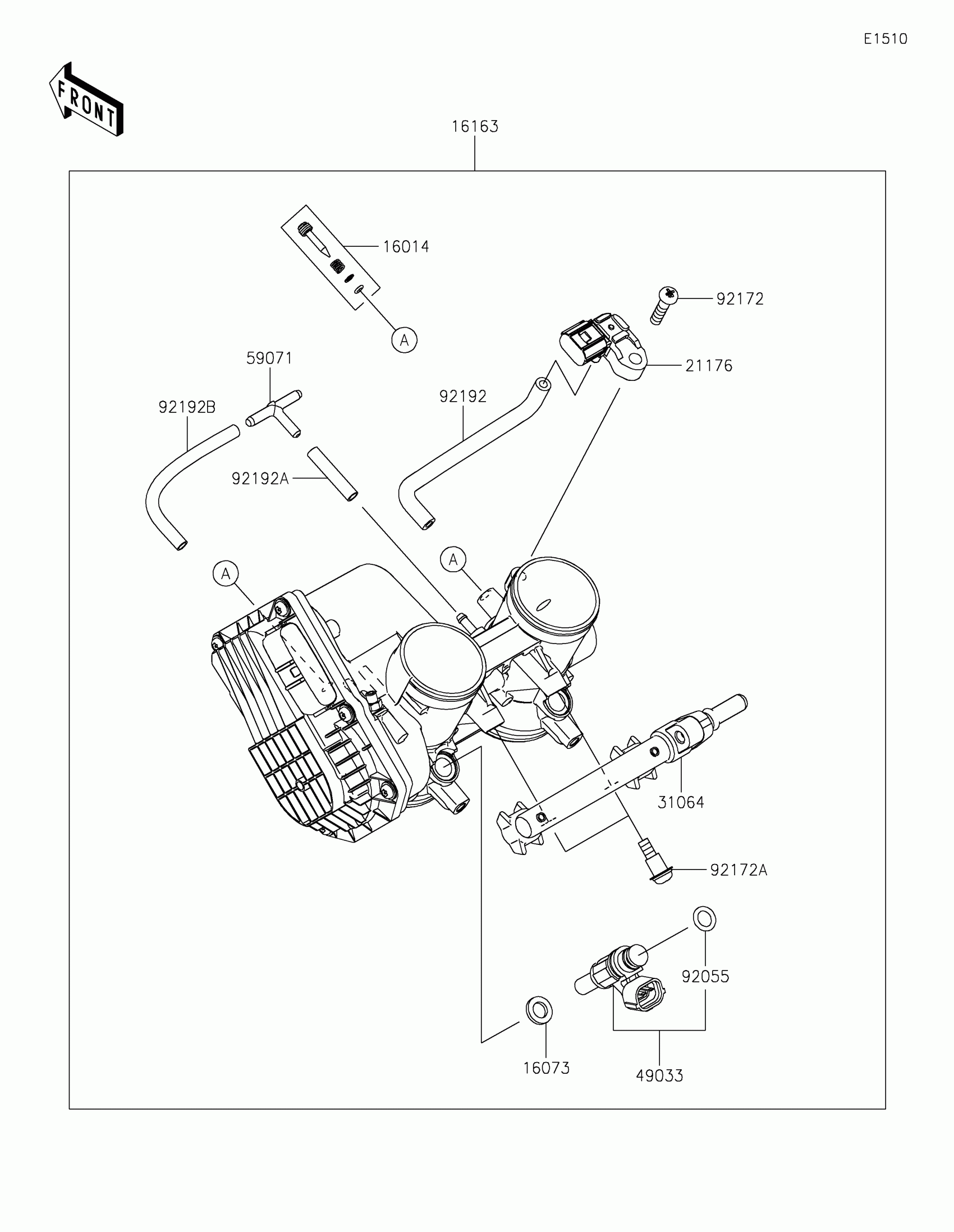

Kawasaki Z7 Hybrid Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0023

$23.27

16073

INSULATOR

16073-0884

$1.94

16163

THROTTLE-ASSY

16163-1299

$1,216.98

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0772

$84.08

49033

NOZZLE-INJECTION

49033-0563

$124.66

59071

JOINT

59071-0749

$5.31

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92172

SCREW

92172-1383

$5.86

92172A

SCREW

92172-1384

$4.07

92192

TUBE

92192-2368

$21.63

92192A

TUBE,3X6X30

92192-2745

$8.14

92192B

TUBE,3X6X95

92192-2746

$24.73
