Description

Price

11012

CAP,CHAIN ADJUSTER,F.S.BLACK

11012-1871-18R

$27.22

33001

ARM-COMP-SWING,F.S.BLACK

33001-0754-18R

$678.93

33032

SHAFT-SWING ARM,20X269

33032-0055

$136.45

33040

ADJUSTER-CHAIN,INNER

33040-0104

$33.24

33040A

ADJUSTER-CHAIN,OUTER,LH,BLACK

33040-0112-18R

$8.59

33040B

ADJUSTER-CHAIN,OUTER,RH,BLACK

33040-0113-18R

$8.59

42036

SLEEVE,SWING ARM,L=237

42036-1264

$66.54

55020

GUARD,CHAIN

55020-2412

$43.64

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92022

WASHER,8.5X16X1.2

92022-1582

$0.96

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

$13.08

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92152

COLLAR,28X35X15

92152-2781

$36.79

92210

NUT,8MM

92210-0116

$2.26

92210A

NUT,8MM

92210-0117

$2.26

92210B

NUT,28MM

92210-1575

$20.92

92210C

NUT,POP,6MM,L=15

92210-1897

$0.52

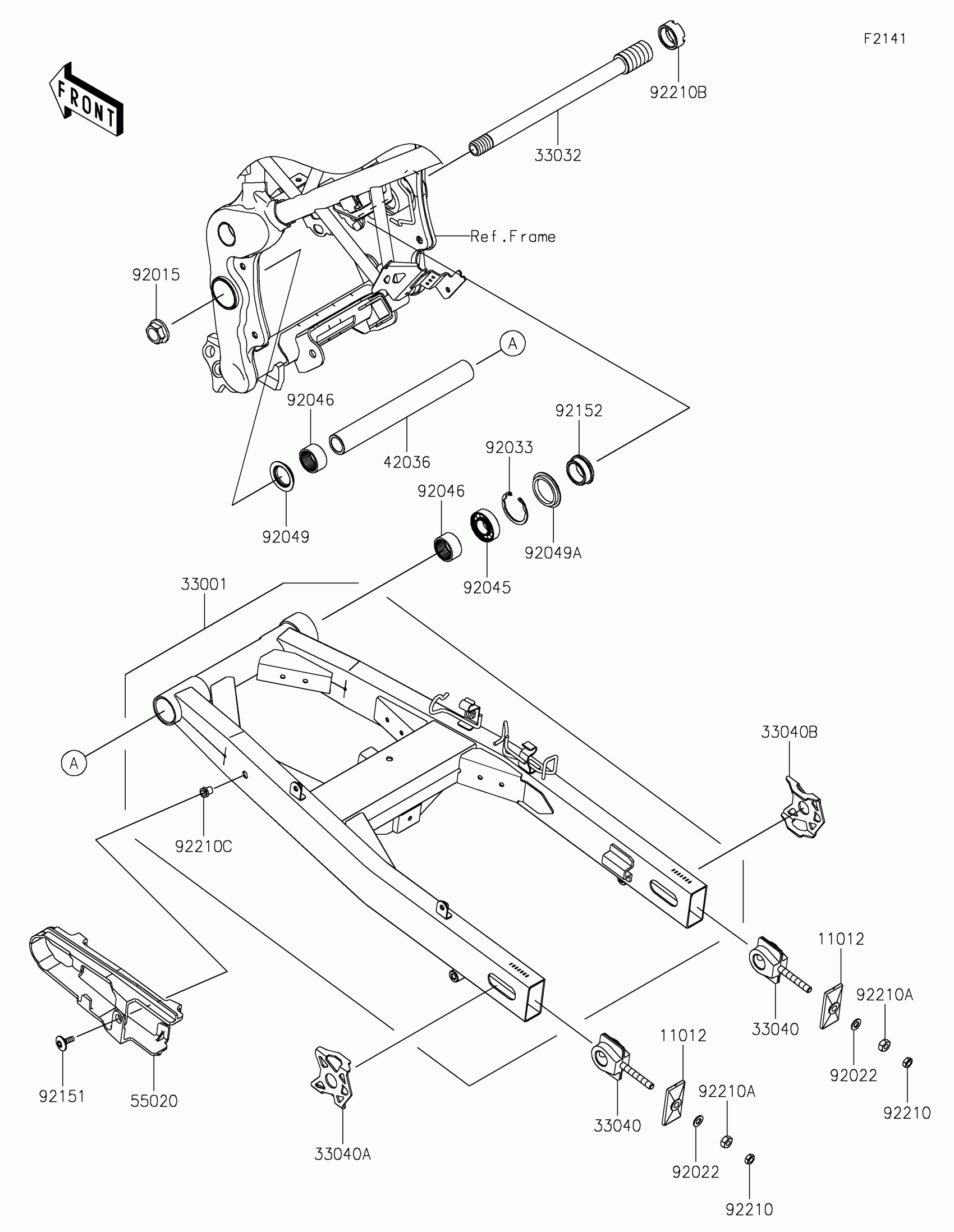

Kawasaki Z7 Hybrid Swingarm Diagram

CAP,CHAIN ADJUSTER,F.S.BLACK

ARM-COMP-SWING,F.S.BLACK

SHAFT-SWING ARM,20X269

ADJUSTER-CHAIN,INNER

ADJUSTER-CHAIN,OUTER,LH,BLACK

ADJUSTER-CHAIN,OUTER,RH,BLACK

SLEEVE,SWING ARM,L=237

GUARD,CHAIN

NUT,FLANGED,20MM

WASHER,8.5X16X1.2

RING-SNAP,42MM

BEARING-BALL,6004UL11

BEARING-NEEDLE,7E-HVS 28X34X17

SEAL-OIL,28X34X5.7

SEAL-OIL,MHA 35 42 5.7F

BOLT,SOCKET,6X18

COLLAR,28X35X15

NUT,8MM

NUT,8MM

NUT,28MM

NUT,POP,6MM,L=15
