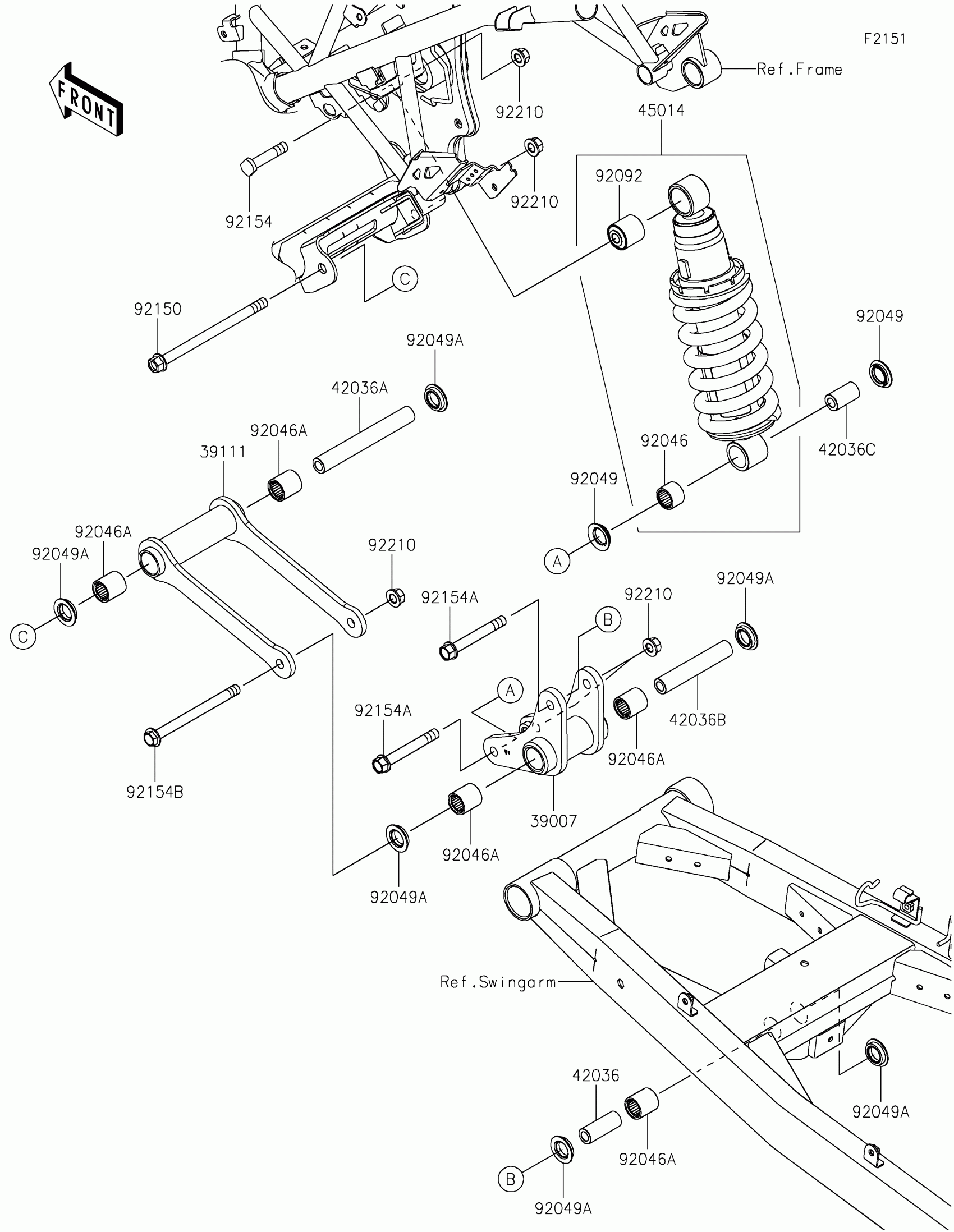

Kawasaki Z7 Hybrid Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0485

$221.51

39111

ROD-TIE

39111-0394

$78.72

42036

SLEEVE,10.1X17X44.5

42036-0718

$24.01

42036A

SLEEVE,10.1X17X130

42036-0885

$57.94

42036B

SLEEVE,10.1X17X96

42036-0886

$47.97

42036C

SLEEVE,10.1X18X32

42036-1344

$11.28

45014

SHOCKABSORBER,BLACK+BLK

45014-0775-37S

$466.98

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL

92049-0133

$10.05

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-1058

$29.88

92150

BOLT,FLANGED,10X150

92150-1686

$16.01

92154

BOLT,10X50

92154-2165

$5.88

92154A

BOLT,FLANGED,10X75

92154-2226

$9.23

92154B

BOLT,FLANGED,10X120

92154-4060

$9.95

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
