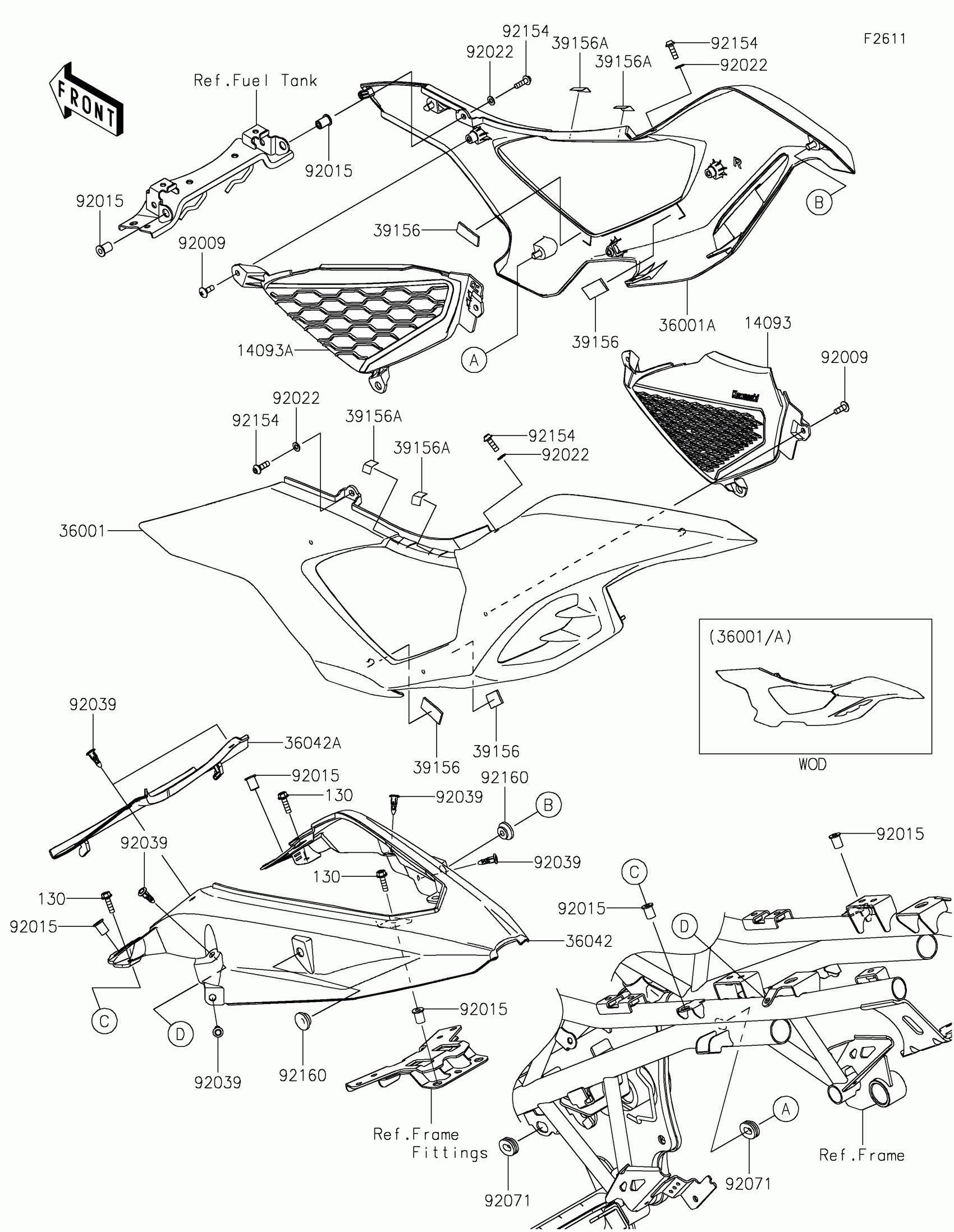

Kawasaki Z7 Hybrid Side Covers Diagram

Description

Price

14093

COVER,LH

14093-1294

$49.69

14093A

COVER,RH

14093-1295

$49.69

36001

COVER-SIDE,LH,M.B.SILVER

36001-0792-63S

$277.21

36001A

COVER-SIDE,RH,M.B.SILVER

36001-0793-63S

$273.92

36042

COVER-TAIL,RR

36042-0016

$123.25

36042A

COVER-TAIL,FR

36042-0017

$36.38

39156

PAD,30X15X2

39156-2897

$1.34

39156A

PAD,17X17X0.36

39156-2898

$1.11

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92039

RIVET

92039-0709

$2.67

92071

GROMMET,11X23X7

92071-0762

$1.41

92154

BOLT,SOCKET,5X16

92154-4294

$2.75

92160

DAMPER

92160-1613

$3.74

130

BOLT-FLANGED,5X18

130BA0518

$1.46
