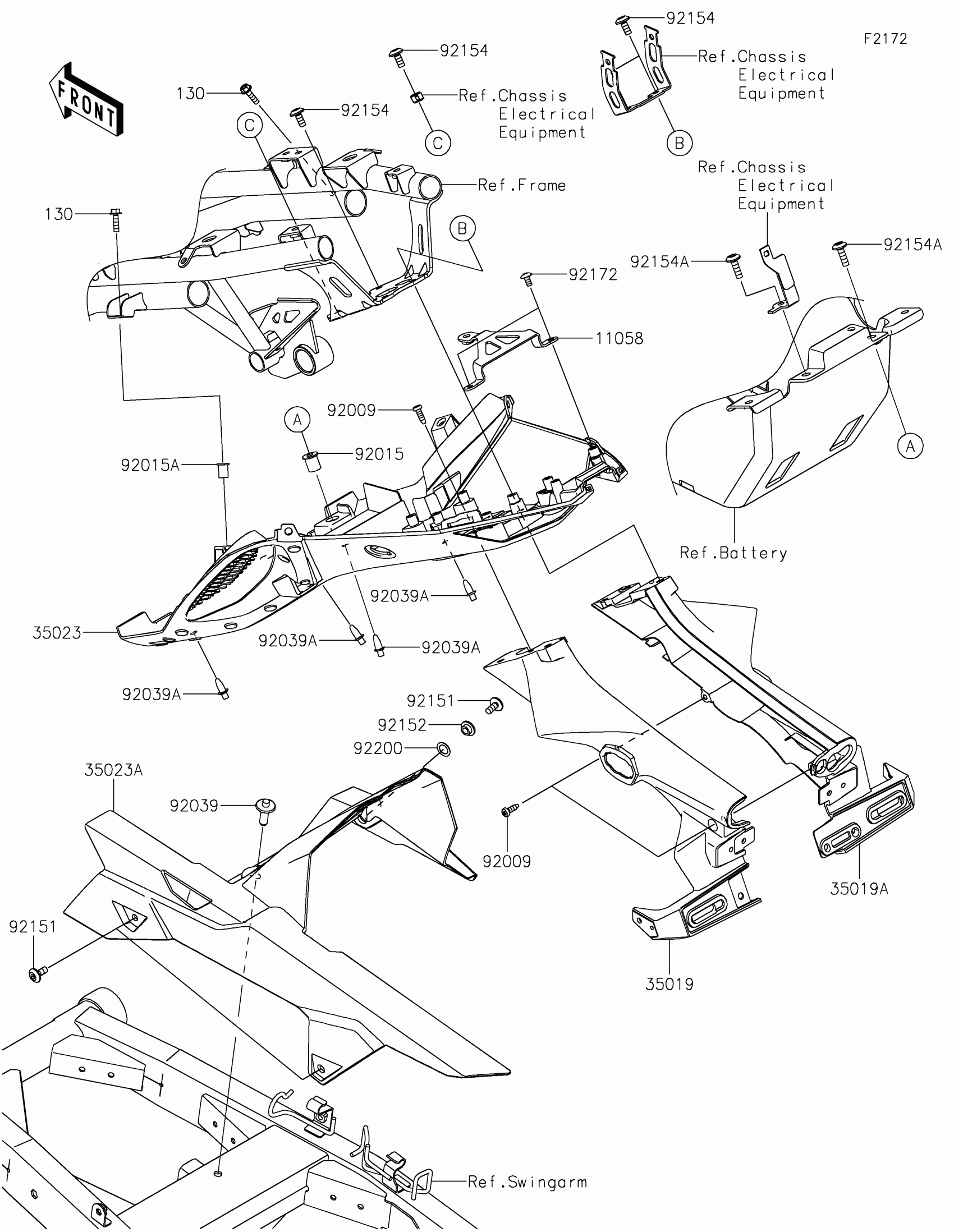

Kawasaki Z7 Hybrid Rear Fender(s) Diagram

Description

Price

11058

BRACKET,RR FENDER

11058-0423

$10.19

35019

FLAP,RR,LH

35019-0677

$37.84

35019A

FLAP,RR,RH

35019-0678

$40.92

35023

FENDER-REAR

35023-0488

$77.84

35023A

FENDER-REAR,INNER

35023-0526

$52.59

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0086

$5.54

92039A

RIVET

92039-0709

$2.67

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6.5X10X5.9

92152-2486

$3.44

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,SOCKET,6X20

92154-0918

$6.26

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,10.4X15.9X0.5

92200-2525

$0.76

130

BOLT-FLANGED,5X18

130BA0518

$1.46
