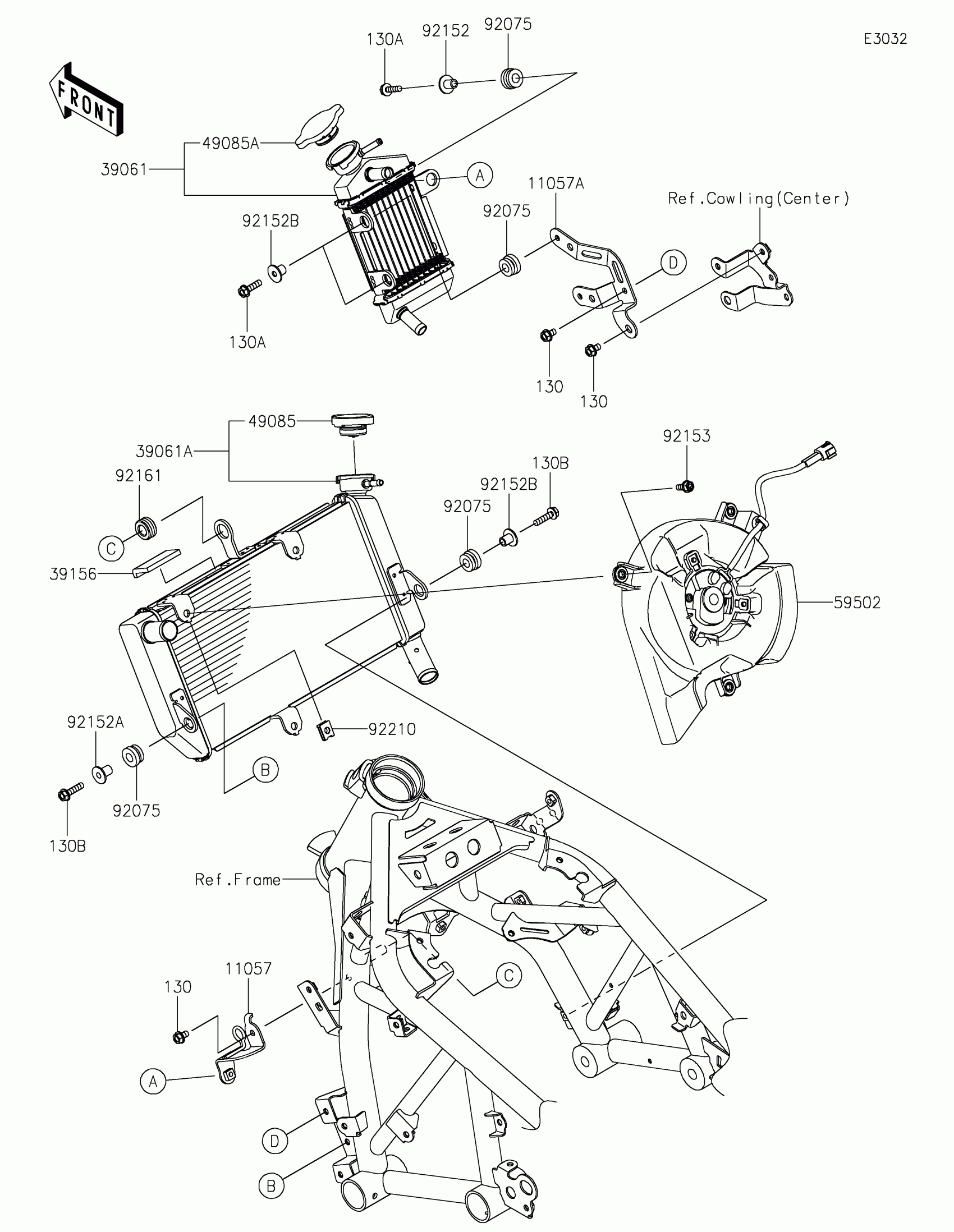

Kawasaki Z7 Hybrid Radiator Diagram

Description

Price

11057

BRACKET,RADIATOR TOP

11057-7940

$12.62

11057A

BRACKET,RADIATOR SIDE

11057-7941

$20.80

39061

RADIATOR-ASSY,MOTOR

39061-0856

$223.63

39061A

RADIATOR-ASSY,ENGINE

39061-0867

$653.71

39156

PAD,50X28X5

39156-2938

$4.55

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

49085A

CAP-ASSY-PRESSURE

49085-0020

$50.52

59502

FAN-ASSY

59502-0639

$352.61

92075

DAMPER,RUBBER

92075-1123

$5.00

92152

COLLAR,6.3X9.5X14.1

92152-1847

$6.52

92152A

COLLAR

92152-2721

$5.31

92152B

COLLAR

92152-2852

$3.53

92153

BOLT

92153-0531

$2.61

92161

DAMPER

92161-2080

$4.69

92210

NUT

92210-1323

$4.18

130

BOLT-FLANGED,6X10

130CA0610

$1.69

130A

BOLT-FLANGED,6X22

130CA0622

$2.70

130B

BOLT-FLANGED,6X25

130CA0625

$4.45
