Description

Price

13042

WEIGHT,HANDLE,INNER

13042-0810

$27.88

13042A

WEIGHT,HANDLE,OUTER

13042-0811

$39.15

13280

HOLDER

13280-1369

$36.45

13280A

HOLDER

13280-1370

$36.45

46003

HANDLE

46003-0839

$133.94

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0101-18R

$24.87

46012A

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0419-18R

$38.72

46019

GRIP-ASSY,THROTTLE

46019-0125

$36.08

46075

GRIP,HANDLE,LH

46075-0663

$20.01

46091

HOUSING-ASSY-CONTROL,RH

46091-0646

$311.89

46091A

HOUSING-ASSY-CONTROL,LH

46091-0682

$537.11

56001

MIRROR-ASSY,LH

56001-0336

$83.70

56001A

MIRROR-ASSY,RH

56001-0337

$83.70

92154

BOLT,SOCKET,6X55

92154-1299

$2.75

92154A

BOLT,FLANGED,8X30

92154-3840

$2.95

92161

DAMPER

92161-0037

$1.86

92161A

DAMPER,10X20X10

92161-1850

$1.94

92161B

DAMPER,10X16X10,INNER

92161-1930

$0.90

92173

CLAMP

92173-0861

$3.02

92173A

CLAMP

92173-2199

$1.48

92173B

CLAMP,WEIGHT

92173-2293

$11.65

92200

WASHER,10.5X24X2

92200-1844

$0.90

92210

NUT,LOCK,10MM

92210-0784

$5.98

120

BOLT-SOCKET,6X25

120CB0625

$2.62

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

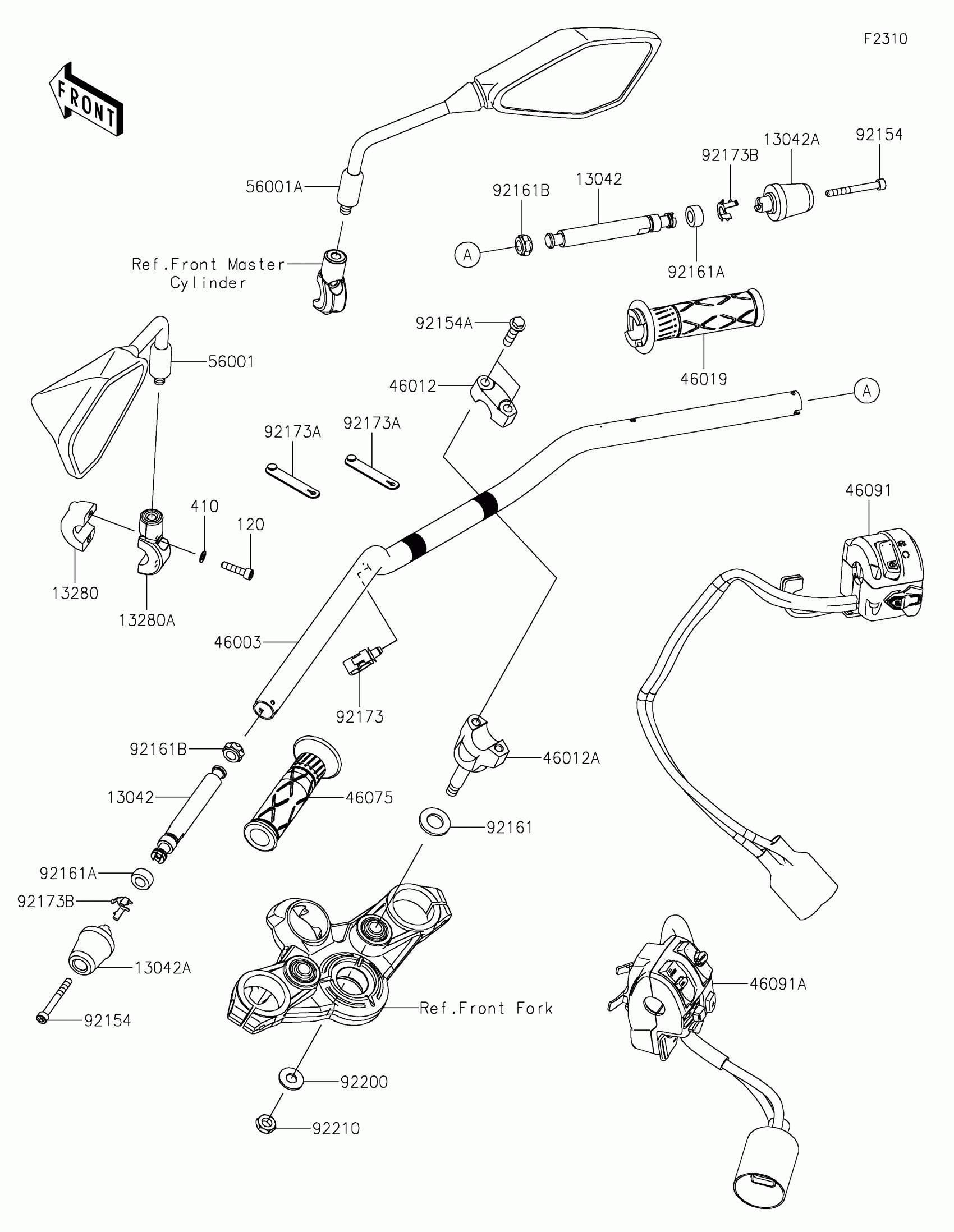

Kawasaki Z7 Hybrid Handlebar Diagram

WEIGHT,HANDLE,INNER

WEIGHT,HANDLE,OUTER

HOLDER

HOLDER

HANDLE

HOLDER-HANDLE,UPP,F.S.BLACK

HOLDER-HANDLE,LWR,F.S.BLACK

GRIP-ASSY,THROTTLE

GRIP,HANDLE,LH

HOUSING-ASSY-CONTROL,RH

HOUSING-ASSY-CONTROL,LH

MIRROR-ASSY,LH

MIRROR-ASSY,RH

BOLT,SOCKET,6X55

BOLT,FLANGED,8X30

DAMPER

DAMPER,10X20X10

DAMPER,10X16X10,INNER

CLAMP

CLAMP

CLAMP,WEIGHT

WASHER,10.5X24X2

NUT,LOCK,10MM

BOLT-SOCKET,6X25

WASHER-PLAIN-SMALL,6MM
